Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
FANYI
-
Model Number:
-
ZH626
-
Warranty:
-
12 Months
-
Color:
-
Customized
-
Outside clamping:
-
10"-21"
-
Inside clamping:
-
12"-24"
-
Weight:
-
218kg
-
Certification:
-
CE / ISO9001
-
Model:
-
AX 50 U CGL-4
-
Car Fitment:
-
Airman
-
Year:
-
2005-2010
Quick Details
-
Motor Power:
-
0.75/1.1kw
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
110V/220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
FANYI
-
Model Number:
-
ZH626
-
Warranty:
-
12 Months
-
Color:
-
Customized
-
Outside clamping:
-
10"-21"
-
Inside clamping:
-
12"-24"
-
Weight:
-
218kg
-
Certification:
-
CE / ISO9001
-
Model:
-
AX 50 U CGL-4
-
Car Fitment:
-
Airman
-
Year:
-
2005-2010

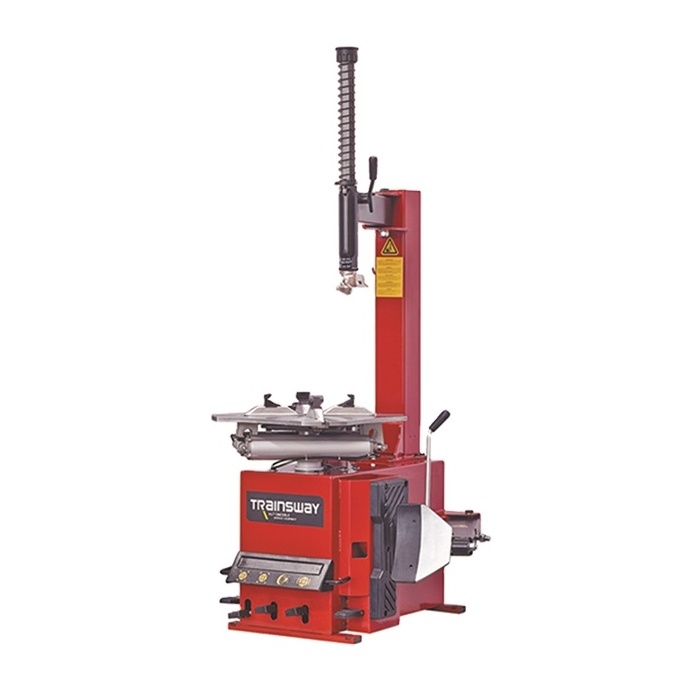

Product Description
| Model: | ZH626 |
| Specification | 24" Semi-automatic side swing arm |
| Power: | 1.1kw/0.75kw |
| Power supply: | 220V/380V |
| Max.wheel diameter: | 41″(1040mm) |
| Max.wheel width: | 14″(355mm) |
| Outside clamping: | 10″~21″ |
| Inside clamping: | 12"~24" |
| Air supply: | 8bar-10bar |
| Bead breaker force: | 2500kg |
| Noise level: | <70dB |
| Packing size: | 1080mm*900mm*960mm |
| G.W./N.W.: | 248KGS/218KGS |
Features:
1.The complete bead breaker cylinder made of steel iron, more durable.
2.The complete clamping cylinder with 80 diameter, the seal ring and the piston are integrated, less resistance.
3.The complete gearbox made of aluminium, light and more durable.
4.Semi-automatic side swing arm
5.Pneumatic bead breaker
