Quick Details
-
Controller Battery:
-
12v
-
Product Name:
-

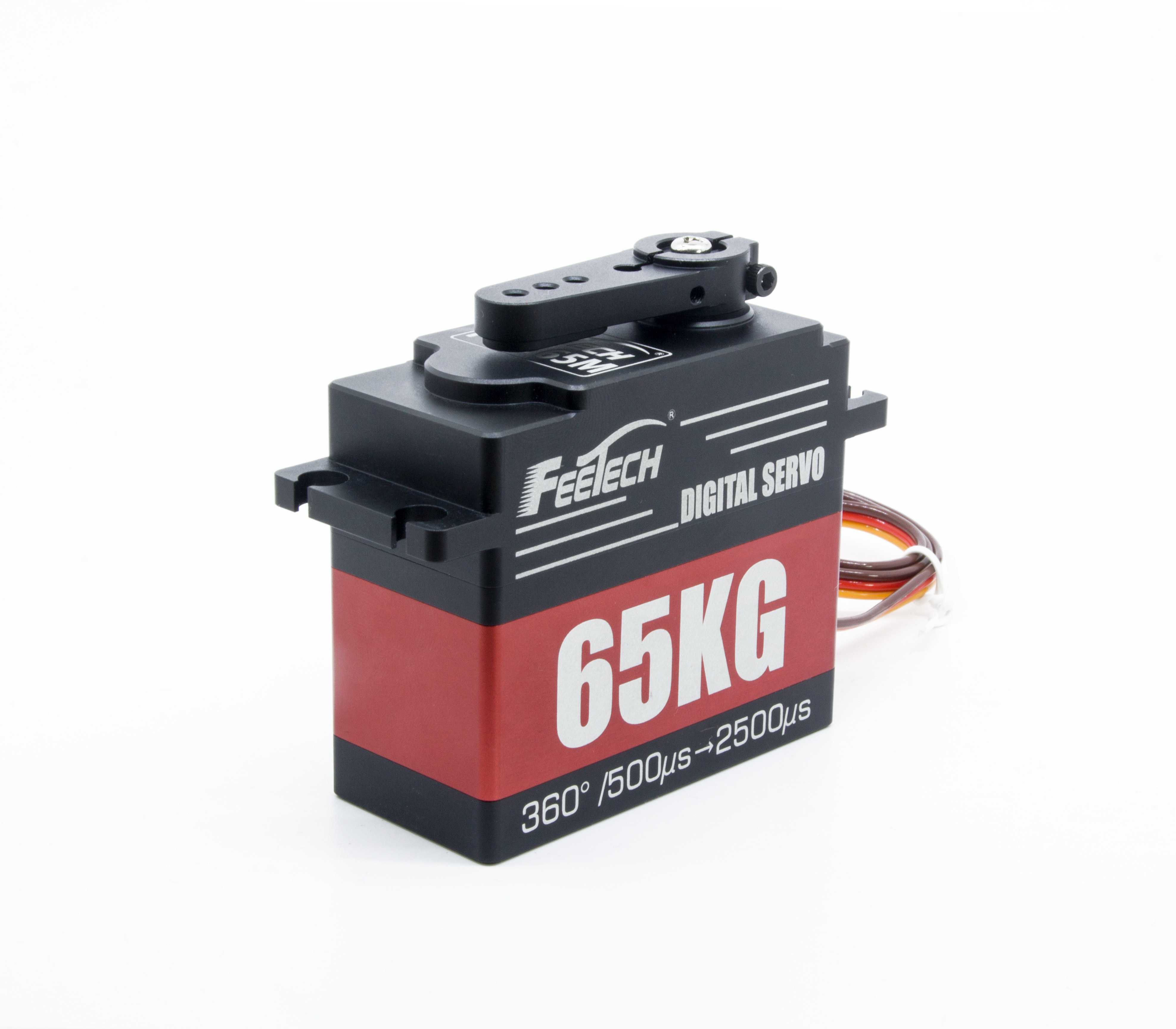

7.4V 65KG 360 Degree Magnetic Encoders Steel Gear Servo
-
Storage Temperature Range:
-
-30℃~80℃
-
Operating Temperature Range:
-
-20℃~60℃
-
Size:
-
A:65mm B:30mm C: 58.4mm
-
Weight:
-
235.2g± 1g
-
Gear type:
-
Steel
-
Limit angle:
-
NO limit
-
Bearing:
-
Ball bearings
-
Horn gear spline:
-
15T/7.6mm
-
Gear Ratio:
-
1/305
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FT6365M
-
Remote Distance:
-
50M
-
Controller Battery:
-
12v
-
Product Name:
-
7.4V 65KG 360 Degree Magnetic Encoders Steel Gear Servo
-
Storage Temperature Range:
-
-30℃~80℃
-
Operating Temperature Range:
-
-20℃~60℃
-
Size:
-
A:65mm B:30mm C: 58.4mm
-
Weight:
-
235.2g± 1g
-
Gear type:
-
Steel
-
Limit angle:
-
NO limit
-
Bearing:
-
Ball bearings
-
Horn gear spline:
-
15T/7.6mm
-
Gear Ratio:
-
1/305
|
(Item)
|
|
|
|
(Specification)
|
|
(Specification)
|
|
||||||
|
Operating Voltage
|
|
|
|
6V
|
|
7.4V
|
|
||||||
|
±10% No Load Speed
|
|
|
|
0.285sec/60°(35RPM)
|
|
0.227sec/60°(44RPM)
|
|
||||||
|
±10% Running Current ( no load)
|
|
|
|
280mA
|
|
300mA
|
|
||||||
|
±10% Stall Torque (at locked)
|
|
|
|
55kg.cm
|
|
65kg.cm
|
|
||||||
|
|
|
|
|
765.14oz.in
|
|
904.56oz.in
|
|
||||||
|
±10% Stall Current (at locked)
|
|
|
|
6.2A
|
|
10.2A
|
|
||||||
|
Idle Current (at stopped)
|
|
|
|
30mA
|
|
30mA
|
|
||||||
|
Rated Input Voltage
|
|
|
|
4V-8.4V
|
|
|
|
||||||
|
Rated Torgue
|
|
|
|
15kg.cm
|
|
18.5kg.cm
|
|
||||||
|
Rated Current
|
|
|
|
1600mA
|
|
4080mA
|
|
||||||
|
Kt
|
|
|
|
10kg.cm/A
|
|
|
|
||||||
|
(Item)
|
|
|
(Specification)
|
|
|
||||
|
Size
|
|
|
65X30X58.4
|
|
|
||||
|
Limit Angle
|
|
|
No limit
|
|
|
||||
|
Case material
|
|
|
Aluminum
|
|
|
||||
|
Gear material
|
|
|
Steel
|
|
|
||||
|
Bearing type
|
|
|
Ball bearings
|
|
|
||||
|
Angle Sensor
|
|
|
Type
|
12 Bite Magnetic Encoded
|
|
||||
|
|
|
|
Angle
|
360°
|
|
||||
|
|
|
|
Life
|
No Limit
|
|
||||
|
Connector and Cable |
|
|
Type
|
JR
|
|
||||
|
|
|
|
Material
|
PVC
|
|
||||
|
|
|
|
Length
|
30CM
|
|
||||
|
|
|
|
Pin Definition
|
1
|
Signal
|
||||
|
|
|
|
|
2
|
Vcc
|
||||
|
|
|
|
|
3
|
GND
|
||||
|
The Weight
|
|
|
235.2g± 1g
|
|
|
||||
|
Horn Type
|
|
|
15T/7.6mm
|
|
|
||||
|
Gear Ratio
|
|
|
1/305
|
|
|
||||
|
Back Lash
|
|
|
≦0.5°
|
|
|
||||
|
The rocker phantom
|
|
|
0°
|
|
|
||||
|
The rocker screw
|
|
|
M3X6
|
|
|
||||
|
Motor
|
|
|
Core Motor
|
|
|
||||
|
(Item)
|
|
|
|
(Specification)
|
|
|
|||||
|
Command Signal
|
|
|
|
Pulse width modulation
|
|
|
|||||
|
Control System Type
|
|
|
|
Digital comparator
|
|
|
|||||
|
Operating Travel
|
|
|
|
360° (at 500→2500μsec)
|
|
|
|||||
|
Left&Right Travelling Angledeviation
|
|
|
|
≤ 1°
|
|
|
|||||
|
Centering Deviation
|
|
|
|
≦1°
|
|
|
|||||
|
Neutral Position
|
|
|
|
1500 μsec
|
|
|
|||||
|
Dead Band Width
|
|
|
|
≤4 μsec
|
|
|
|||||
|
Rotating Direction
|
|
|
|
Counterclockwise(at 1500→2500 μsec)
|
|
|
|||||
|
Pulse Width Range
|
|
|
|
500→2500 μsec
|
|
|
|||||
|
Electronic Protection
|
|
|
|
Stall 4sec
|
|
|
|||||
|
Temperature protection
|
|
|
|
>70°C
|
|
|
|||||
|
(Item)
|
|
|
(Specification)
|
|
|||
|
Life test
|
|
|
＞100000
|
|
|||
|
The motor noises
|
|
|
45±5dB
|
|
|||
|
Steering gear noises
|
|
|
70±5dB
|
|
|||
