Quick Details
-
Name:
-
South G1
Quick Details
-
Warranty:
-
ONE YEAR
-
Place of Origin:
-
China
-
Brand Name:
-
South
-
Name:
-
South G1

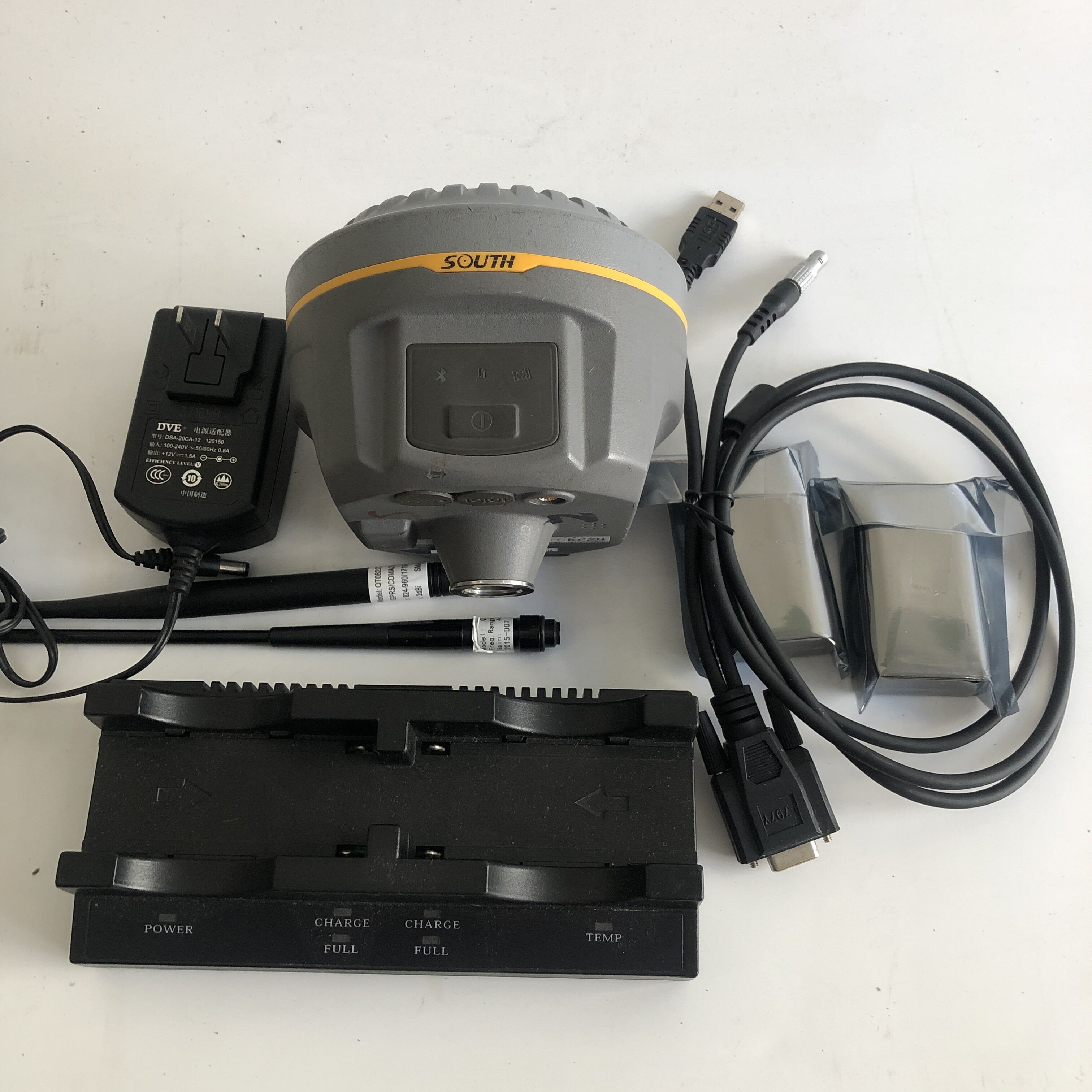

Product Description
Including:BASE
ANTENNA 2PCS
CHARGER
BATTERY 2PCS
TRIBRACH
CONNECTOR
EXTERNAL RADIO
TRANSMITTING ANTENNA
EXTERNAL RADIO CABLE
DATA CABLE
ROVER
ANTENNA 2PCS
BATTERY 2PCS
CHARFER
CONTROLLER
SOFTWARE
BRACKET
CARBON POLE
POST PROCESSING SOFTWARE
ANTENNA 2PCS
CHARGER
BATTERY 2PCS
TRIBRACH
CONNECTOR
EXTERNAL RADIO
TRANSMITTING ANTENNA
EXTERNAL RADIO CABLE
DATA CABLE
ROVER
ANTENNA 2PCS
BATTERY 2PCS
CHARFER
CONTROLLER
SOFTWARE
BRACKET
CARBON POLE
POST PROCESSING SOFTWARE
Specification
|
Surveying Performance
|
|
|
|
Channel
|
220 Channels
|
|
|
Signal Tracking
|
BDS B1, B2, B3,
|
|
|
|
GPS L1C/A, L1C, L2C, L2E, L5
|
|
|
|
GLONASS L1C/A, L1P, L2C/A,L2P, L3
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GNSS Feature
|
Positioning output rate: 1HZ~50HZ
|
|
|
|
Initialization time : <10s
|
|
|
|
Initialization reliability :
|
|
|
|
Initialization reliability: >99.99%
|
|
|
Positioning Precision
|
|
|
|
Code Differential GNSS Positioning
|
Horizontal: 0.25 m + 1 ppm
|
|
|
|
Vertical: 0.50 m + 1 ppm
|
|
|
|
SBAS positioning accuracy: typically<5m 3DRMS
|
|
|
Static GNSS Surveying
|
Horizontal: 2.5 mm + 0.5 ppm
|
|
|
|
Vertical: 5 mm + 0.5 ppm
|
|
|
Real-Time Kinematic Surveying (Baseline<30km)
|
Horizontal: 8 mm + 1 ppm
|
|
|
|
Vertical: 15 mm + 1 ppm
|
|
|
|
Horizontal: 8 mm + 0.5 ppm
|
|
|
|
Vertical: 15 mm + 0.5 ppm
|
|
|
Network RTK
|
RTK initialization time: 2~8s
|
|
|
Physical
|
|
|
|
Dimension
|
12.9cm × 11.2cm
|
|
|
Weigh
|
970g(includiing installed battery)
|
|
|
Material
|
Magnesium aluminum alloy shell
|
|
|
Environmental
|
|
|
|
Operating
|
−45℃~+60℃(-49℉~+140℉)
|
|
|
Storage
|
−55℃~+85℃(-67℉~+185℉)
|
|
|
Humidity
|
Non-condensing
|
|
|
Waterproof/Dustproof
|
IP67 standard,protected from long time immersion to depth of 1m
|
|
|
|
IP67 standard,fully protected against blowing dust
|
|
|
Shock and Vibration
|
Not operating: Withstand 2 meters pole drop onto the cement ground naturally
|
|
|
|
operating : Withstand 40G 10milliseconds sawtooth wave impact test
|
|
|
Electrical
|
|
|
|
Power consumption
|
2W
|
|
|
Battery
|
Rechargeable, removable Litium-ion battery
|
|
|
Battery Life
|
Single battery: 7h( static mode ) 5h( interual UHF base mode )
|
|
|
|
6h( rover mode )
|
|
|
Communications and Data storage
|
|
|
|
I/O Port
|
5PIN LEOM external power port + RS232
|
|
|
|
7PIN LEOM RS232 + USB
|
|
|
|
1 network/radio data link antenna port
|
|
|
|
SIM card slot
|
|
|
Wireless Modem
|
Integrated internal radio receiver and transmitter 0.5W/2W
|
|
|
|
External radio transmitter 5W/25W
|
|
|
Working frequency
|
410-470MHz
|
|
|
Communication protocol
|
TrimTalk450s, TrimMark3, PCC EOT, SOUTH
|
|
|
Cellular Mobile Network
|
WCDMA3.5G network communication module, GPRS/EDGE compatible,
CDMA2000/EVDO |
|
|
|
3G optional
|
|
|
Double Module
|
support for android, ios cellphoon connection
|
|
|
|
EDR standard
|
|
|
NFC communication
|
Realizing close range ( shorter than 10cm ) automatic pair between
Galxy G1 and controller |
|
|
|
( controller equipped NFC wireless communication module needed)
|
|
|
Data storage/Transmission
|
4GB internal storage, more than 3 year raw observation data (1.4M/day)
base on recording from 14 satelites Plug and play more of USB data transmission |
|
|
Data Format
|
Differential data format: CMR+, CMRx, RTCM2.1, RTCM2.3, RTCM3.0,
RTCM3.1, RTCM3.2 |
|
|
|
GPS output data format: NMEA0813, PJK plan, cordinates binary code
|
|
|
|
Network model support: various, FKP, MAC, supporting NTRIP protocol
|
|
