- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
DCF-03
-
Brand Name:
-
HCH
-
Product name:
-

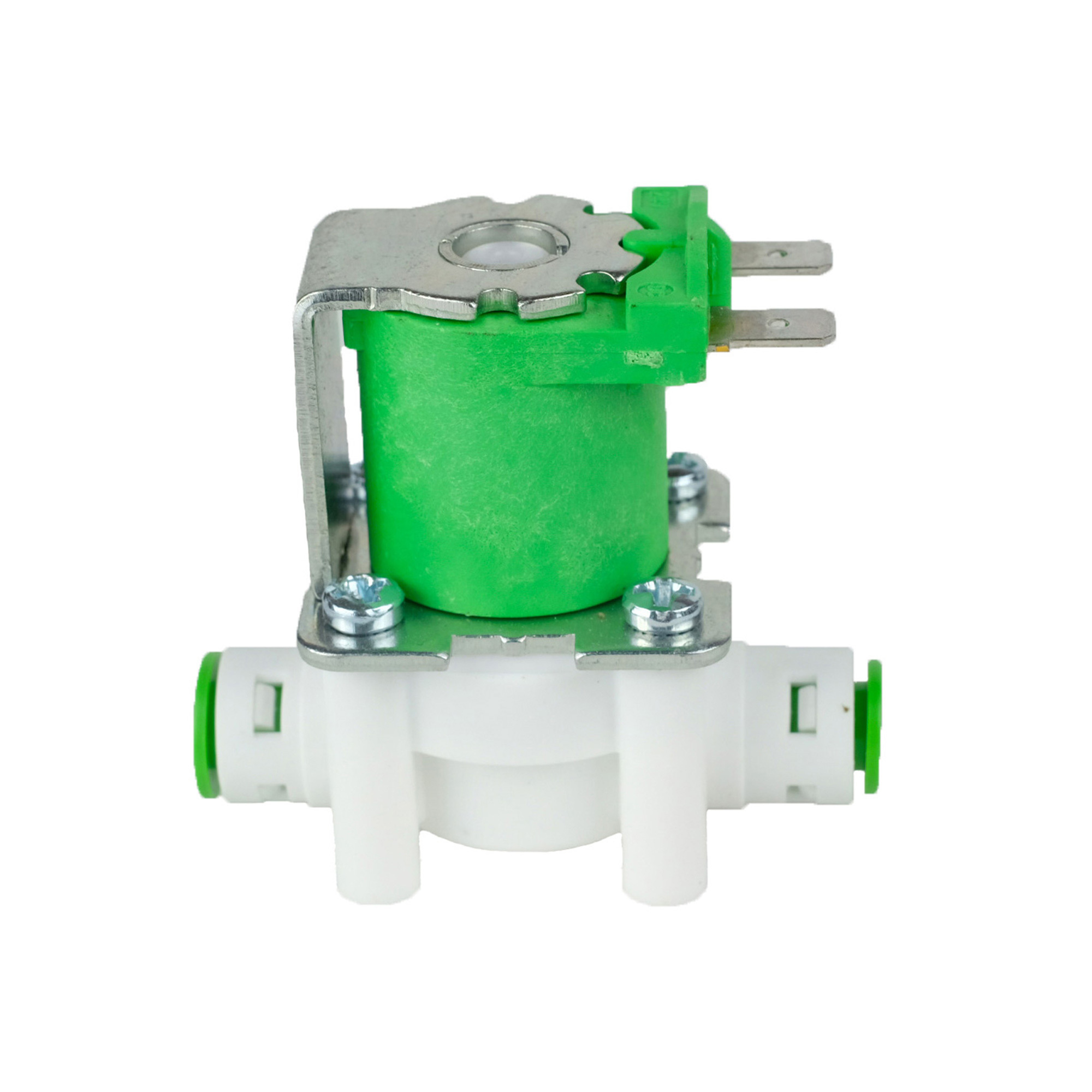

Inlet solenoid valve
-
Color:
-
Green,blue, white
-
Voltage:
-
DC12v 24v 36V AC110V 220V50/60Hz
-
Pressure range:
-
0.02~0.8MPa
-
Working medium temperature:
-
0~80℃
-
Operate life:
-
≥100000 OPS
-
Certificate:
-
CE,CQC
-
Size:
-
58.8*36*54.9(mm)
-
Connection:
-
Quick connect fitting
-
Usage:
-
Water filter system
Quick Details
-
Port Size:
-
1/4" 3/8"
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
DCF-03
-
Brand Name:
-
HCH
-
Product name:
-
Inlet solenoid valve
-
Color:
-
Green,blue, white
-
Voltage:
-
DC12v 24v 36V AC110V 220V50/60Hz
-
Pressure range:
-
0.02~0.8MPa
-
Working medium temperature:
-
0~80℃
-
Operate life:
-
≥100000 OPS
-
Certificate:
-
CE,CQC
-
Size:
-
58.8*36*54.9(mm)
-
Connection:
-
Quick connect fitting
-
Usage:
-
Water filter system
|
Model
|
DCF-01
|
DCF-03
|
DCF01A220
|
||
|
Rated voltage
|
DC12V DC24V DC36V AC110V 220V 50/60Hz
|
≥5m
|
AC220V 50/60Hz
|
||
|
Pressure range
|
0.02~0.8MPa
|
≥100ml/min
|
≥100ml/min
|
||
|
Working medium temperature
|
0~80℃
|
F
|
F
|
||
|
Certification
|
CQC
|
TUV
|
|
||
|
Inlet size
|
1/4"
|
3/8''
|
1/4"
|
||
* High Quality *Good Price
* Quick Reply *Excellent Service
* On Time Shipment * Well package
Q1. Are you a manufacturer or a trader?
A1:We are a
p
rofessional manufacturer
.
Q2.What certificates do you have?
A2:CQC、ISO、TUV、CE、UL
Q3. What’s the payment?
A4:We accept bank transfer, TT, Paypal &L/C, or others method.
Q4. Is small order available?
A5:Yes, we do not only supply MOQ order, but also small order for trial test or small projects.
Q5.We can put my company logo on products?
A6:We supply OEM service, it's fine to send goods with your company logo, but need to tool up the new inserts and apply the Multiple-Listing for the certificates.
Q6.How long is your delivery time?
A7:If there is inventory, it generally takes 1-3 working days; if there is no inventory, it generally takes 7-10 working days, which should be determined according to the quantity.
