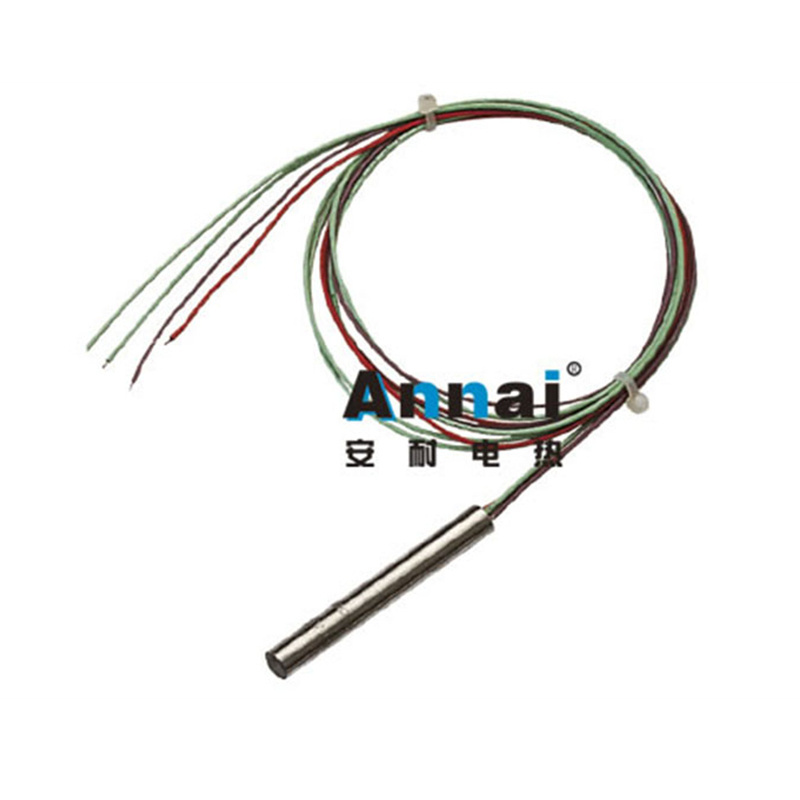

Wholesale Single-end Industrial Pencil Electric 220 V Mould 4 Wire Cartridge Heater With Thermocouple

Wholesale Single-end Industrial Pencil Electric 220 V Mould 4 Wire Cartridge Heater With Thermocouple

FOB Reference Price: Get Latest Price

≥10 Pieces

US $6

≥100 Pieces

US $5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: ANNAI

Dimension(L*W*H):: As per orders

Weight:: 0.5 KG

Working Temperature Range:: 100 - 900 ℃

Core Components:: Resistance wire, Mgo powder

Product Name:: Pencil Electric 220 V Mould 4 Wire Cartridge Heater With Thermocouple

Sheath Material:: SS304, 321, 316L, Incoloy840, Titanium

Sheath Dia.:: 3~32mm

Length Available:: 30-2000mm (tolerance:±1 mm)

Wattage Tolerance:: +5%, -10%

Resistance tolerance:: +10%, -5%

operating temp:: ≤900°C

After Warranty Service:: Video technical support

Quick Details

Type:: Cartridge Heater

Power Source:: Electric

Voltage:: 110V-415V

Place of Origin:: Guangdong, China

Brand Name:: ANNAI

Dimension(L*W*H):: As per orders

Weight:: 0.5 KG

Working Temperature Range:: 100 - 900 ℃

Core Components:: Resistance wire, Mgo powder

Product Name:: Pencil Electric 220 V Mould 4 Wire Cartridge Heater With Thermocouple

Sheath Material:: SS304, 321, 316L, Incoloy840, Titanium

Sheath Dia.:: 3~32mm

Length Available:: 30-2000mm (tolerance:±1 mm)

Wattage Tolerance:: +5%, -10%

Resistance tolerance:: +10%, -5%

operating temp:: ≤900°C

After Warranty Service:: Video technical support

Specification

Production Name	Wholesale Single-end Industrial Pencil Electric 220 V Mould 4 Wire Cartridge Heater With Thermocouple
Sheath Material	SS304, SS321, SS316, INCOLOY840, Titanium
Sheath Dia.	3mm-32mm (Tolerance: -0.02mm-0.08mm)
Length	30mm-2000mm (Tolerance: ±1mm)
Voltage	110V -450V
Wattage	To be customized (Tolerance: +4%-8%)
Operating Temperature	Max 900℃
T/C Type	Normally with J or K type thermocouple

Characteristics:

1)Long-term service life,advanced design of interior structure,highly purified magnesia rod and powder, great heat conductivity,and special abrasive equipment.
2)Adopt special qbrasive equipment, to ensure tube diameter is fit for operation equipment. High heat efficiency and quick heat elimination.

3)Adopt imported thermocouple (K-type, J-type) to control temperature accurately.
4)Applicable especially to equipment with strict temperature requirement.

Product Show

Application:

Applicable to 3D printer, plastic formed mold, glass hot bending machine, packing machinery, thermal pressure forming machine, cigarette making machine, coffee machine, pharmaceutical machinery, shoemaking industry, etc.

All products are manufactured as per CCC and CE Criteria.
