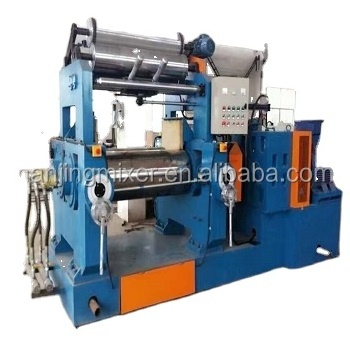

China Manufacturer XK-450 Two Roll Rubber Open Mixing Mill with(CE/ISO)/rubber compound two roll mill

China Manufacturer XK-450 Two Roll Rubber Open Mixing Mill with(CE/ISO)/rubber compound two roll mill

FOB Reference Price: Get Latest Price

≥1 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Mixer

Voltage:: as per customer's request

Dimension(L*W*H):: 6290x2330x1780mm

Weight (KG):: 20000 KG

Type:: Open Mixing Mill

Diameter of rolls:: 550

Working length of roll:: 1500

Working speed of front roll:: 28.6

Fraction ratio of rolls:: 1:1.29

Nip regulating mode:: Manual or Electric

Batch capacity(Kg):: 50-60

Motor speed(r/m):: 740

Marketing Type:: New Product 2020

Quick Details

Diameter of Roll(mm):: 550 mm

Length of Roll(mm):: 1500 mm

Place of Origin:: Jiangsu, China

Brand Name:: Mixer

Voltage:: as per customer's request

Dimension(L*W*H):: 6290x2330x1780mm

Weight (KG):: 20000 KG

Type:: Open Mixing Mill

Diameter of rolls:: 550

Working length of roll:: 1500

Working speed of front roll:: 28.6

Fraction ratio of rolls:: 1:1.29

Nip regulating mode:: Manual or Electric

Batch capacity(Kg):: 50-60

Motor speed(r/m):: 740

Marketing Type:: New Product 2020

Product Description

Used for rubber&plastic mixing,sheeting.

Features:

· Tailored structure,stable performance, easy to operate.

· There are varied speeds and fraction ratios available, which can satisfy most customers’ formula and processing requirements.

· Frame, frame cap and base, looking very nice, are welded and treated by annealing for stress relieving.

· Chilled alloy cast iron roll is abrasion resistant with long service life.

· The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.

· Perfect emergency stop device can ensure the safety of personnel and equipment.

· The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.

· Stock pan is easy to clean up with dislodging device.

· Human nature designed operating system reduces labor intensity.

· Modular structure offers various structures for customers’ option.

· The flexible design system can satisfy customers’ special design requirements within the shortest time.

· A load test running will be made to the assembled equipment in our company to save debugging time for customers.

Specification

Model		X(S)K-160	X(S)K -250	X(S)K -360	X(S)K -400	X(S)K -450	X(S)K -550	X(S)K-660
Diameter of rolls		160	250	360	400	450	550	660
Working length of roll		320	620	900	1000	1200	1500	2130
Working speed of front roll		8.95	14.9	17.4	19.3	23.1	28.6	30
Fraction ratio of rolls		1:1.35	1:1.1	1:1.27	1:1.27	1:1.27	1:1.29	1:1.05
Max.gap(mm)		5	8	10	10	10	15	15
Nip regulating mode		Manual	Manual	Manual	Manual or Electric	Manual or Electric	Manual or Electric	Electric
Batch capacity(Kg)		1-2	10-15	20-15	25-35	30-50	50-60	120-140
Motor	Power	5.5	15	30	45	55	90/110	180
Motor	Motor speed(r/m)	1440	730	980	740	980	740	740
Reducer		Full closed type hardened gear speed reducer
Reduction ratio		43	35	49.7	38	47.2	35.6	126.2
Overall dimension (mm)		1120x920 X1295	3400x1270 X1620	4140x1770 X1700	4490x1700 X1750	5570x1900 X1750	6290x2330 X1780	7500x 2630x2060
Weight (kg)		1100	4200	7600	9000	11500	20000	26500
