Quick Details
-
Weight:
-
8000 kg
-
Dimension(L*W*H):
-
7941x2360x2500mm
-
Power:
-
85kw
-
Engine Capacity:
-
/
-
Engine Model:
-
YUCHAI
-
Transmission:
-
4wd
-
Chassis:
-
Off road
-
Brake:
-
Air brake
-
Dipper capacity:
-
0.7cbm
-
Output capacity:
-
3.5cbm
-
Tyre Size:
-
16/70-20
-
Cylinder:
-
4
Quick Details
-
Marketing Type:
-
New Product
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OEM
-
Weight:
-
8000 kg
-
Dimension(L*W*H):
-
7941x2360x2500mm
-
Power:
-
85kw
-
Engine Capacity:
-
/
-
Engine Model:
-
YUCHAI
-
Transmission:
-
4wd
-
Chassis:
-
Off road
-
Brake:
-
Air brake
-
Dipper capacity:
-
0.7cbm
-
Output capacity:
-
3.5cbm
-
Tyre Size:
-
16/70-20
-
Cylinder:
-
4
Product Description
Product Features:

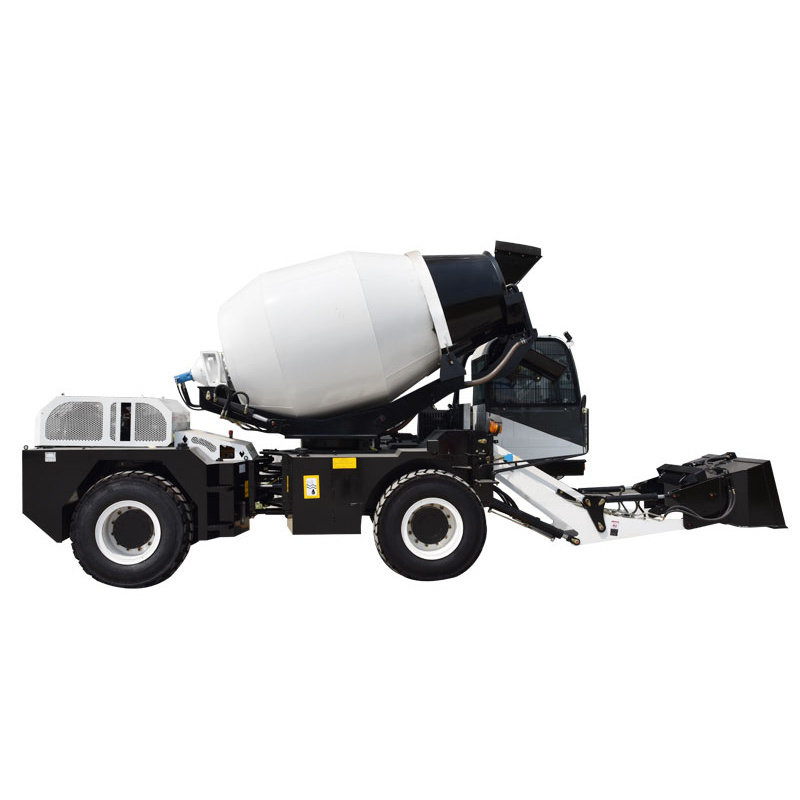

Model HY-3500 Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader. It features bidirectional driving, which is realized by the 270 degrees slewing of drum. The concrete output ability is 14 cube meters per hour. The outsize wheel-side reducer driving axle and full hydraulic transmission case make the mixer truck move in any kinds of complex off road ways, the max. moving speed can be up to 25 km/hour, and the min. turning radius is 5.3 meters only.
HY-3500 is equipped with driving camera, automatic water feeding & metering system, hydraulic water suction pump, and air conditioner, etc. The mixing drum can be slewed hydraulically through 270 degrees together for high discharge over 1.6m on the four sides of the vehicle. The drum can also be lifted up 16 degrees from the bottom by two hydraulic cylinders for the convenience of concrete discharge.
Specification:
|
|
Net
|
8100 KG
|
|
|
|||
|
|
Transmission
|
4 WD
|
|
|
|||
|
|
Brake
|
Air Brake
|
|
|
|||
|
|
Chassis
|
Off-road
|
|
|
|||
|
|
Loader bucket
|
capacity
|
|
0.7m3
|
|||
|
|
|
Control
|
|
Hydraulic
|
|||
|
|
Tilt angle
|
20%
|
|
|
|||
|
|
Speed
|
High
|
|
0-30KM/H
|
|||
|
|
|
Low
|
|
0-9KM/H
|
|||
|
|
Mini turning radius
|
3.5M/R
|
|
|
|||
|
Engine
|
Type
|
Yuchai
|
4108
|
|
|||
|
|
Rated Power/RPM
|
85KW/2200RPM
|
|
|
|||
|
|
Max.Torque/RPM
|
360N.M/1400RPM
|
|
|
|||
|
|
Cylinder
|
4
|
|
|
|||
|
|
Starter
|
Electric
|
|
|
|||
|
|
Cooling type
|
water cooling
|
|
|
|||
|
Maxing Drum |
Output capacity
|
3.5M3
|
|
|
|||
|
|
Bank Angle
|
16 °
|
|
|
|||
|
Chute
|
Swing Angle
|
≥50°
|
|
|
|||
|
Loader control
|
Hydraulic 4 way stick
|
|
|
|
|||
|
Tyre model
|
16/70-20 construction tyre
|
|
|
|
|||
|
Electronic parts
|
Waterproof circuit
|
|
|
|
|||
|
Drum Rotation
|
270 degree to provided 4 ways discharge concrete
|
|
|
|
|||
|
Water tank capacity
|
297L
|
|
|
|
|||
|
Hydraulic oil tank capacity
|
150L
|
|
|
|
|||
|
Diesel oil tank capacity
|
190L
|
|
|
|
|||
