PCE.3N303.NE12GB.50 Replace Power supply plug and socket input connector

PCE.3N303.NE12GB.50 Replace Power supply plug and socket input connector

FOB Reference Price: Get Latest Price

≥20 Pieces

US $2.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Reunion

Model Number:: PCE.3N303.NE12GB.50

Keywords:: waterproof power cable connector,power connector

Material:: Nylon

Connector type:: Male Terminals

Certificate:: UL

Pin:: 3pin

Model No:: PCE.3N303.NE12GB.50

Mating cycle:: 2000times

Waterproof:: IP67

Function:: Power Charging

Quick Details

Type:: ADAPTER

Application:: Power

Gender:: Male

Place of Origin:: Guangdong, China

Brand Name:: Reunion

Model Number:: PCE.3N303.NE12GB.50

Keywords:: waterproof power cable connector,power connector

Material:: Nylon

Connector type:: Male Terminals

Certificate:: UL

Pin:: 3pin

Model No:: PCE.3N303.NE12GB.50

Mating cycle:: 2000times

Waterproof:: IP67

Function:: Power Charging

PCE.3N303.NE12GB.50 Replace Power supply plug and socket input connector

3N series powercon Connector's:

Name:	3N power connector
Model NO:	PCE.3N303.NE12GB.50
Color:	Yellow/black/blue/grey
Material:	Nylon
Coupling:	Push-Pull
Cable diameter:	8.5~12mm
Termination:	Solder
Pin number:	3 pins

Technical parameters:

Contact diameter:	2.2mm
Contact resistance:	<2.0
Working voltage:	250v
Working amper:	30A
Working temperature:	-30 to 105
Mechanical life:	>2000
Suitable cable diameter:	8.5-12
Protection class:	IP67/IP50
Product Certificat:	UL

Main features:

1: Waterproof (IP67) and Waterproof (IP50)
2: The power input and power output with a different lock to avoid short circuit
Quick and easy twist lock .
3:Material for the nylon fiber , fire rating V-0 , corrosion resistance, good weather resistance and excellent electrical properties

4:High temperature environment still has good electrical insulation,
5:Socket terminals using imported beryllium copper, with high life expectancy and conductivity.

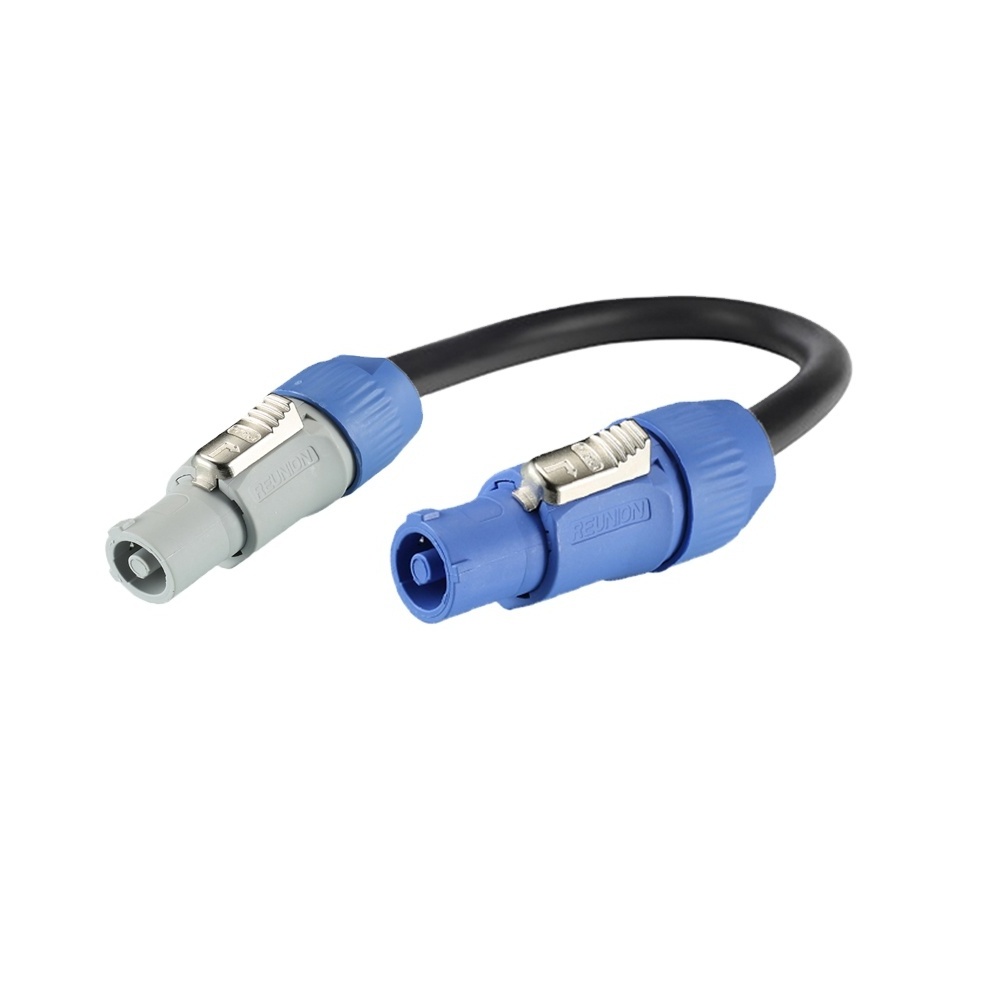

Picture:

Application:

This product is widely used in electronic, instrumentation, video processing, medical equipment and other Led electrical signal connection. Especially for frequent connections need to be separated, need to shield the instrumentation and equipment on the electrical signal connection

About manufacturer:

Reunion is a professional manufacturer of electronic connectors .
Our products are suitable for medical, military, industrial control, LED screen, navigate, test and measurement, oil and nuclear industry, tele-communications.
Since in 2011 , we have successfully provided lots of products and earned good reputation from our customers.
Our main products is electrical connector. Meanwhile, we could provide all kinds of connects as low voltage connector, plastic connector, miniature connector, inserts series B K S F P M N, high pressure connector, high voltage connector, cable assemblies, accessories, other/special.
