- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380v50hz
-
Power:
-
4.2kw
-
Dimension(L*W*H):
-
3200*1500*1850mm
-
Weight:
-
850kg
-
Name:
-
Custom napkin printer machine
-
Function:
-
Folding, embossing and cutting
-
Speed:
-
0-800pcs/min
-
Raw material:
-
Jumbo roll paper
-
Color:
-
Red and white
-
Model:
-
300
-
Power Source:
-
380v50hz-three phase
-
Total Power:
-
4.2kw
-
Control system:
-
PLC
-
Embossing unit:
-
Steel to wool
Quick Details
-
Production Capacity:
-
800pcs/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SR
-
Voltage:
-
380v50hz
-
Power:
-
4.2kw
-
Dimension(L*W*H):
-
3200*1500*1850mm
-
Weight:
-
850kg
-
Name:
-
Custom napkin printer machine
-
Function:
-
Folding, embossing and cutting
-
Speed:
-
0-800pcs/min
-
Raw material:
-
Jumbo roll paper
-
Color:
-
Red and white
-
Model:
-
300
-
Power Source:
-
380v50hz-three phase
-
Total Power:
-
4.2kw
-
Control system:
-
PLC
-
Embossing unit:
-
Steel to wool
Product Description
Introduction:

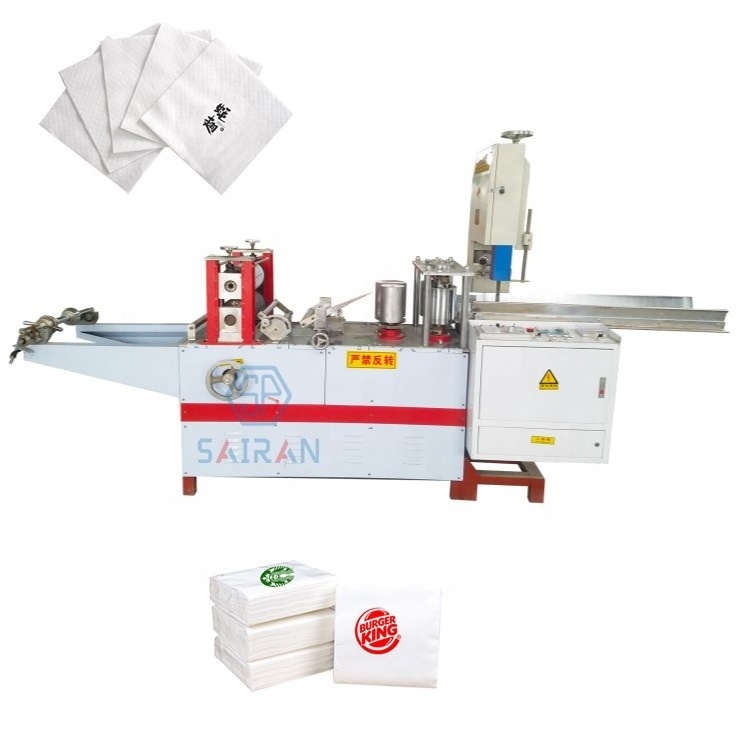

The automatic embossing and folding napkin paper machine is used for embossing, folding, electronic counting, and cutting the raw paper into napkins with clear patterns, neat and beautiful. The whole processing is completed by this machine at one time. Due to the high degree of automation, good processing quality, and high production efficiency, it is an ideal production equipment for paper product factories and urban and rural families to build factories and become rich with small investment and quick results. In addition, embossing can produce various clear and beautiful patterns according to user needs.
Product Paramenters
|
Machine Name
|
Napkin paper machine
|
|
Model
|
180-460
|
|
Unfolding Size
|
180*180—460*460 mm
|
|
Folded size
|
90*90-230*230mm
|
|
Raw paper diameter
|
≤φ1200mm
|
|
Raw paper Core inner diameter
|
75mm Standard (Other size are available)
|
|
Embossing Roll
|
Steel to rubber, steel to wool
|
|
Counting System
|
Electronic Counting
|
|
Power
|
4.2KW
|
|
Voltage
|
380v50hz
|
|
Dimension
|
3200*1000*1800mm
|
|
Weight
|
600-1200KG
|
|
Speed
|
0—800 pcs/minute
|
|
Power source
|
Frequency Control,electromagnetic governor
|
|
Transmission
|
6 Chains
|
Classification:
1. According to the speed: ordinary low-speed napkin machine, high-speed napkin machine
2. According to the number of embossing rolls: single embossing napkin machine, double embossing napkin machine.
3. According to color printing: ordinary napkin machine, single-color printing napkin machine, double-color printing napkin machine and multi-color printing napkin machine
4. According to the number of layers: single-layer napkin machine, double-layer napkin machine
5. Other categories can be freely combined: such as ordinary low-speed single-color printing napkin machine, high-speed color printing napkin machine, double embossing color printing napkin machine, etc.
Working details show
Features:
1.Automatic folding, embossing, cutting, heating and counting.
2.The machine models can be customized according to customers’ napkin size.
3.The embossing is steel to wool or steel to rubber folding,the embossing pattern is clear and various.
4.The unified shaping size and entire column are easy for napkin packing.
Packing & Delivery
We will use film winding before loading the cabinet for anti-corrosion and anti-collision treatment.
If you need to use wooden box packaging, we will strictly follow the relevant export wooden box packaging regulations, and will do anti-collision fixation of machinery and equipment before wooden box packaging. The box board packaging has tight seams, and the box board combination is flat and without misalignment. The cloth nails are reasonable and so on.
