Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ROUTERSTAR
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3200*1840*1900mm
-
Power (kW):
-
9
-
Weight (KG):
-
1300
-
Product name:
-
1325 automatic tool changer 3d wood carving cnc router machine
-
Control system:
-
NK280B
-
Application:
-
Wood Working
-
Spindle:
-
China HQD ATC water Cooling Spindle 9KW
-
Motor:
-
Leadshine servo motor 850w
-
Working area:
-
1300*2500mm
-
Software:
-
Artcam/Type3
-
table:
-
vacuum table with Pump 7.5kw
-
Tool quantity:
-
12 tools
-
tool changing model:
-
Disk type
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ROUTERSTAR
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3200*1840*1900mm
-
Power (kW):
-
9
-
Weight (KG):
-
1300
-
Product name:
-
1325 automatic tool changer 3d wood carving cnc router machine
-
Control system:
-
NK280B
-
Application:
-
Wood Working
-
Spindle:
-
China HQD ATC water Cooling Spindle 9KW
-
Motor:
-
Leadshine servo motor 850w
-
Working area:
-
1300*2500mm
-
Software:
-
Artcam/Type3
-
table:
-
vacuum table with Pump 7.5kw
-
Tool quantity:
-
12 tools
-
tool changing model:
-
Disk type

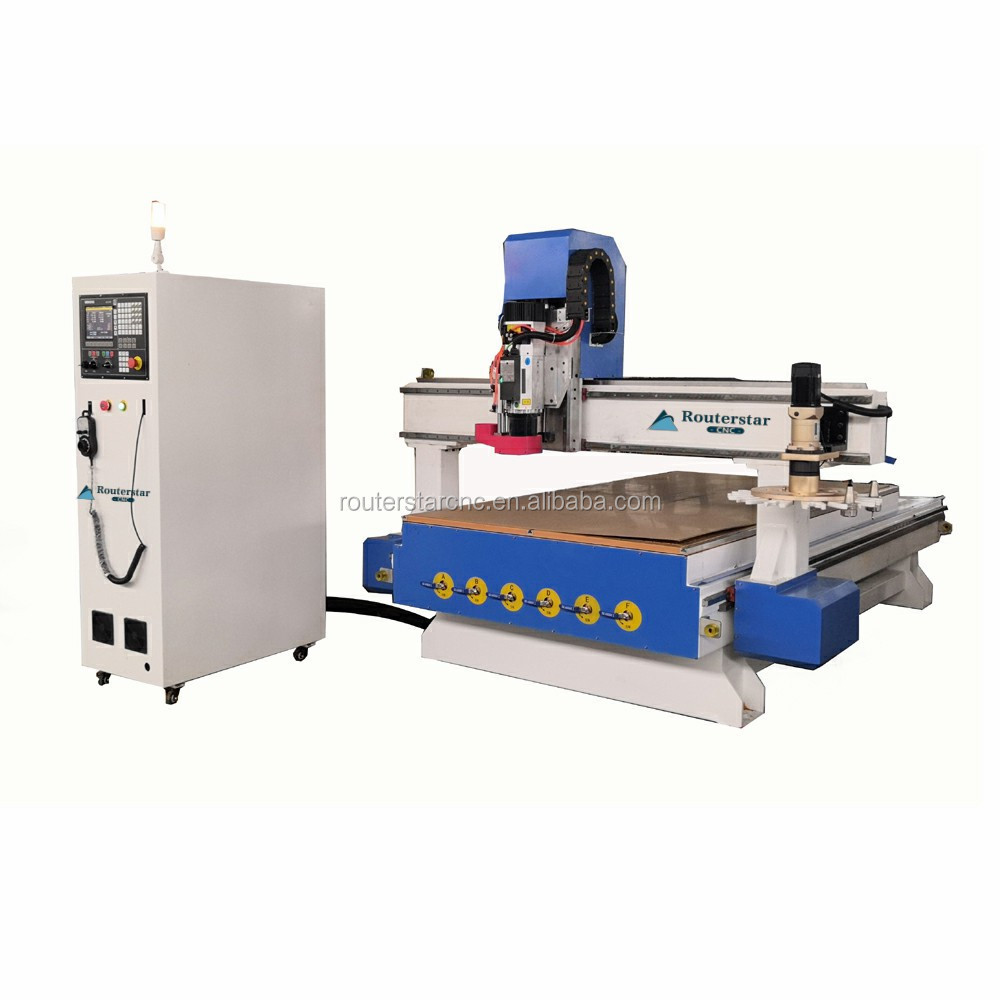

1325 automatic tool changer 3d wood carving cnc router machine with HQD ATC spindle 9KW
1. pictures:
This model is auto toold change type cnc router machine, automatic changing, need less time to change, higher efficiency than the manual changing tool, it will be easily change tool.
save cost, and changing tools time also less.
can be widely used in wood door making industry, and other furniture industry which with complex drawing design.
Configuration:
#working area: 1300*2500*250mm
#AC380V/50HZ 3Phase
#Steel pipe welding body T type
#Syntec control system
#Taiwan Hiwin square orbit M25 for XYZ
#TBI ballscrew for Z axis, Helical gear for XY axis
# with dust collector
#China 9kw ATC air cooling spindle
#China servo motor and driver Leadshine
#vacuum table with 7.5kw vacuum pump water cooling
#auto position sensor and automatic oiling system
#Wooden case package
parameters:
|
Model Number |
P rocessing length |
P rocessing width |
M achine size |
P ackage size |
|
RS1325ATC cnc router |
2500mm |
1300mm |
3.2 *2.18*1.5m |
3.3*2.28*1.7m |
|
D riving motor |
D river |
T able type |
G antry |
C ontrol system |
|
China servo motor 850w |
China servo driver |
V acuum table water cooling pump 7.5kw |
8mm thick steel gantry |
Syntec control system/NK280B |
|
XY axis T ransmission way |
Z axis transmission way |
O rbit |
Machine body material |
D ust collect |
|
Helical gear |
TBI ballscrew |
Taiwan Hiwin/PMI square orbit M25 |
Welding steel pipe |
4kw double bag dust collector |
|
C arving spindle power |
C arving spindle speed |
F requency converter for carving spindle |
M ax moving speed |
M ax cuting speed |
|
China 9kw HQD air cooling ATC spindle |
0-24000r/min |
Delta brand 11kw |
35-50m/min |
20-25m/min |
|
Max carving speed |
W orking efficiency |
P ower supply |
Net weight |
Gross Weight |
|
15-25mm/min |
0.02mm |
AC380V 50HZ (can custom 220V) |
1500kgs |
1600kgs |
working samples:
http://www.routerstarcnc.en.alibaba.com
machine details:
#working area: 1300*2500*300mm
#AC380V/50HZ 3Phase
#Steel pipe welding body T type
#Weiho NK280B control system
#Taiwan Hiwin square orbit M25 for XYZ
#TBI ballscrew for Z axis, Helical gear for XY axis
# with dust collector 4kw
#China 9kw HQD ATC air cooling spindle
#China Leadshine servo motor and driver 850w, 750w for tool mangazine
#Japan reducer for machine, China reducer for tool mangazine
#vacuum table with 7.5kw vacuum pump water cooling
#Artcam software
#auto position sensor and automatic oiling system
#Wooden case package
OPTIONALS [PARTS
Japan Yaskawa servo motor and driver
Taiwan Syntec control system 6MB
Italy spindle 9KW
Taiwan Delta inverter
French Schnerider parts
