Road Construction Fabric High Strength NonWoven Geotextile Reinforcement Underlayment Filter Landscape Fabric Cloth
FOB Reference Price:
Get Latest Price
≥1000 Square meters
US $0.39
≥10000 Square meters
US $0.37
≥40000 Square meters
US $0.29
≥130000 Square meters
US $0.19
Free Inquiry
Customized Request
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Huabo
-
Model Number:
-
100-800g
-
Type:
-
Short Fiber Geotextile
-
Product name:
-
Non Woven Geotextile
-
Material:
-
PET PP Non Woven Geotextile
-
Color:
-
White Black Gray(as Request)
-
Thickness:
-
0.8-5.5mm
-
Break strength:
-
2.5kN/M~25KN/M
-
Packing:
-
Roll Packing
-
Certificate:
-
ISO
-
Sample:
-
Freely
-
Service:
-
24-hour Online
Quick Details
-
Warranty:
-
Lifetime
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other, NONE
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, NONE, Others
-
Application:
-
Outdoor
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Huabo
-
Model Number:
-
100-800g
-
Type:
-
Short Fiber Geotextile
-
Product name:
-
Non Woven Geotextile
-
Material:
-
PET PP Non Woven Geotextile
-
Color:
-
White Black Gray(as Request)
-
Thickness:
-
0.8-5.5mm
-
Break strength:
-
2.5kN/M~25KN/M
-
Packing:
-
Roll Packing
-
Certificate:
-
ISO
-
Sample:
-
Freely
-
Service:
-
24-hour Online

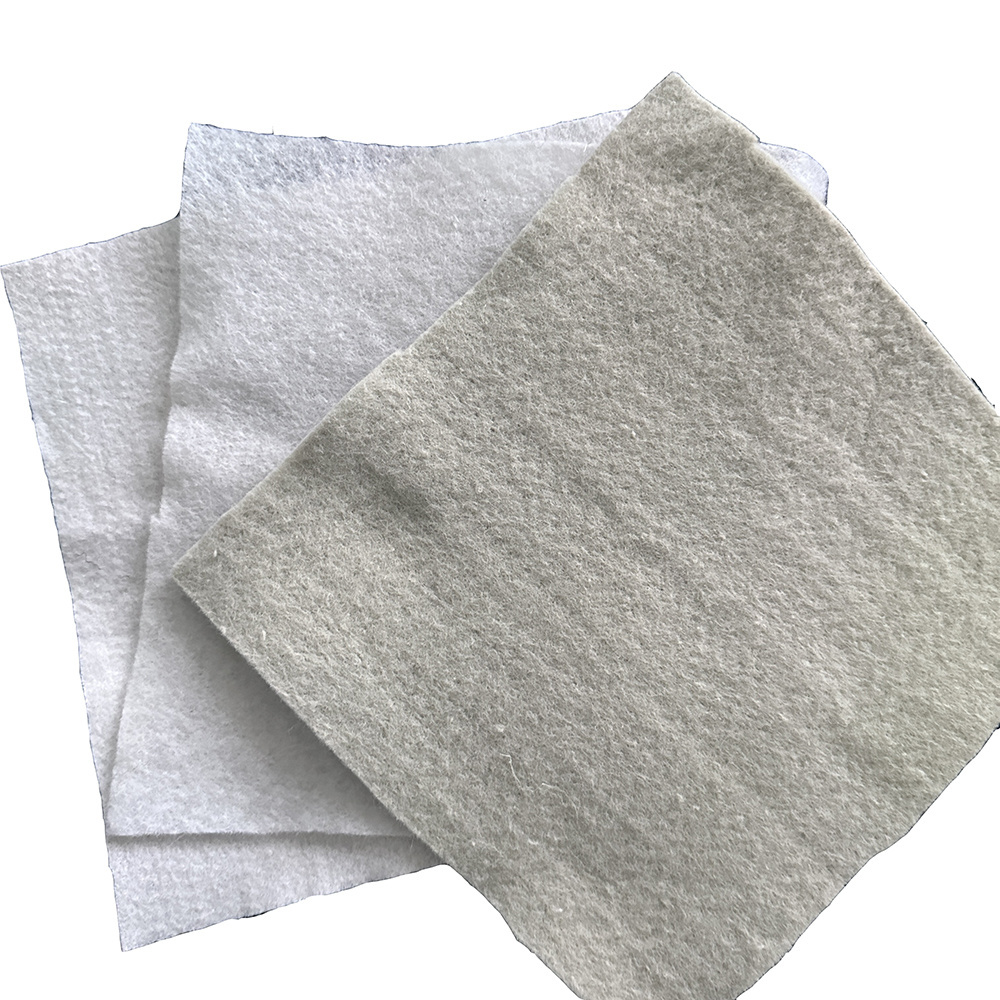

Short fiber needle punched non-woven geotextile
(tree wrapped fabric/cold resistant fabric)
Products Description
Staple fiber needled nonwoven geotextile is a water-permeable geotextile made of high quality polyester and nylon fibers.Raw materials such as polyester and polypropylene used in needle-punched geotextile are acid and alkali resistant, non-corrosive and non-moth-eaten; The product has good water permeability; Light weight, convenient construction.
Terms&Conditions
1. Product Name: Staple Fiber Needled Nonwoven Geotextile
2. Raw material: polyester (PET), polypropylene (PP)
3. Color: black, green, yellow, gray, white
4. Grammage: 100g-800g
5. Width: normal 6m.
6. Length: 50m or 100m
7. Sample: free
8. Production time: about 7 days after receiving the deposit.
9. More services: recommendations, routes to large transportation companies, installation guidance, including online video and offline technical manager guidance. Welding machine, wire, pipe selection.
2. Raw material: polyester (PET), polypropylene (PP)
3. Color: black, green, yellow, gray, white
4. Grammage: 100g-800g
5. Width: normal 6m.
6. Length: 50m or 100m
7. Sample: free
8. Production time: about 7 days after receiving the deposit.
9. More services: recommendations, routes to large transportation companies, installation guidance, including online video and offline technical manager guidance. Welding machine, wire, pipe selection.
Product specifications and performance parameters(GB/T 17638-1998)
Product specifications and performance parameters
|
Item
|
Nominal breaking strength/(kN/m)
|
|
|
|
|
|
|
|
|
||||||||
|
|
3
|
5
|
8
|
10
|
15
|
20
|
25
|
30
|
40
|
||||||||
|
Longitudinal and ransverse tracture strength (KN/m²)≥
|
3
|
5
|
8
|
10
|
15
|
20
|
25
|
30
|
40
|
||||||||
|
Elongation corresponding to nominal breaking strength（%）
|
20-100
|
|
|
|
|
|
|
|
|
||||||||
|
Breaking strength
（kN）≥
|
0.6
|
1
|
1.4
|
1.8
|
2.5
|
3.2
|
4
|
5.5
|
7
|
||||||||
|
Mass deviation rate per unit
area（%）
|
±5
|
|
|
|
|
|
|
|
|
||||||||
|
Width deviation rate（%）
|
-5
|
|
|
|
|
|
|
|
|
||||||||
|
Thickness deviation rate（%）
|
±10
|
|
|
|
|
|
|
|
|
||||||||
|
Equivalent pore size O35(mm)
|
0.07-0.20
|
|
|
|
|
|
|
|
|
||||||||
|
Vertical permeability coefficient
（cm/s）
|
Kx(10-1 - 10-3）
K=1.0-9.9
|
|
|
|
|
|
|
|
|
||||||||
|
Longitudinal and transverse tearing strength（kN）≥
|
0.1
|
0.15
|
0.2
|
0.25
|
0.4
|
0.5
|
0.65
|
0.8
|
1
|
||||||||
|
Acid and alkali resistance (strength retention rate
（%）
|
80
|
|
|
|
|
|
|
|
|
||||||||
|
Antioxidant performance strength retention rate（%）
|
80
|
|
|
|
|
|
|
|
|
||||||||
|
UVresistance strength retention
rate（%）
|
80
|
|
|
|
|
|
|
|
|
||||||||
Details Images
Product packaging
Installation Instructions
Certifications
