- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
5400*1900*2500 mm
-
Weight:
-
5.7 KG
-
Product name:
-

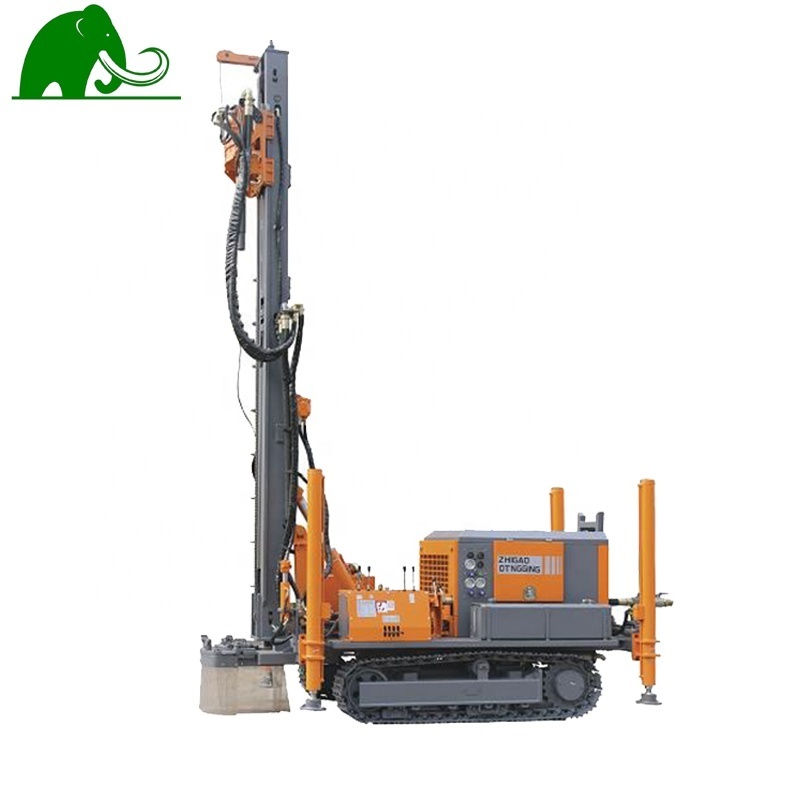

Water Wells Drilling Rigs
-
Drilling depth:
-
180m
-
Hole diameter:
-
110-200 mm
-
Working Pressure(bar):
-
10-24bar
-
Rotating torque:
-
5600N.m / 2800N.m
-
Rotate speed:
-
0-80r/min
-
Winch Pull up Force:
-
1.5T
-
Walking speed:
-
2.5KM/H
-
Climbing Ability:
-
25°
-
Drill pipe diameter:
-
76-89
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
ANBIT
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
5400*1900*2500 mm
-
Weight:
-
5.7 KG
-
Product name:
-
Water Wells Drilling Rigs
-
Drilling depth:
-
180m
-
Hole diameter:
-
110-200 mm
-
Working Pressure(bar):
-
10-24bar
-
Rotating torque:
-
5600N.m / 2800N.m
-
Rotate speed:
-
0-80r/min
-
Winch Pull up Force:
-
1.5T
-
Walking speed:
-
2.5KM/H
-
Climbing Ability:
-
25°
-
Drill pipe diameter:
-
76-89
Products Description
|
Engine
|
Yuchai YCD4R22T-80 59kw
|
|
Drill pipe Diameter
|
76mm*3m
|
|
Hole size
|
110-202 mm
|
|
Rotation torque
|
5660 N.m
|
|
Rotation speed
|
0-80 rpm
|
|
Feed type
|
Oil cylinder+chain
|
|
Feed force
|
24 kN
|
|
Pull up Force
|
70 kN
|
|
The pull up force of winch
|
1500 kg
|
|
Travel distance of support jack oil cylinder
|
1400 mm
|
|
Tramming speed
|
2.4 km/h
|
|
Gradient
|
25 deg
|
|
Ground clearance
|
280 mm
|
|
Total weight
|
5700 kg
|
