Quick Details
-
Model Number:
-
s9871
-
Thickness:
-
custom
-
Size:
-
custom
-
Product name:
-

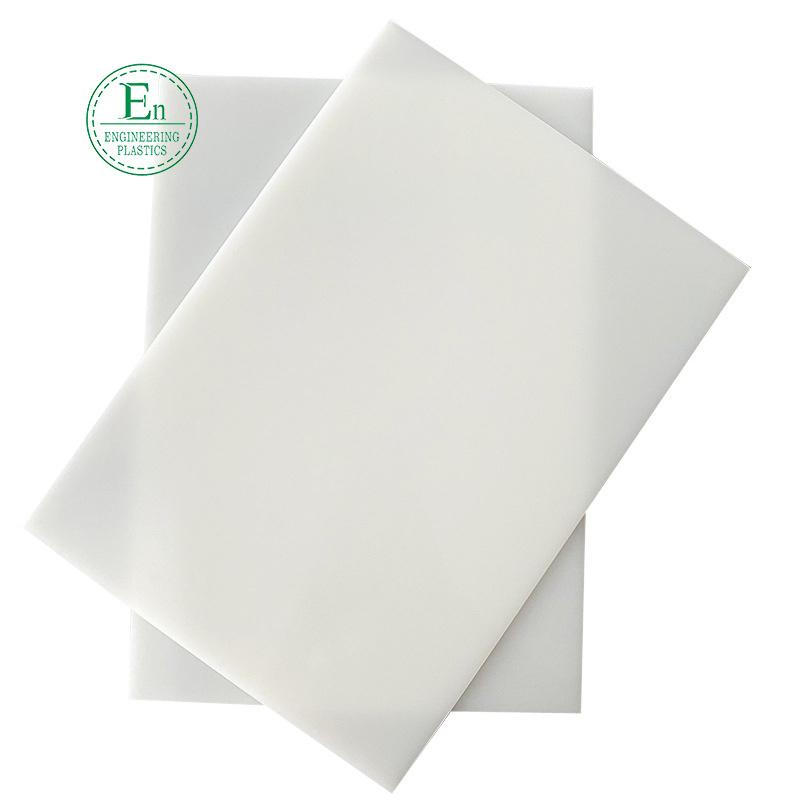

PVDF sheet board plate tube rod pipe
-
Density:
-
1.75~1.78
-
Color:
-
White
-
Application:
-
Industry
-
Certificate:
-
ISO9001
-
Service:
-
OEM ODM
-
MOQ:
-
1pcs
-
Packing:
-
Wooden Pallet
-
Sample:
-
Avaliable
Quick Details
-
Processing Service:
-
Cutting, Moulding
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
gz-plastic
-
Model Number:
-
s9871
-
Thickness:
-
custom
-
Size:
-
custom
-
Product name:
-
PVDF sheet board plate tube rod pipe
-
Density:
-
1.75~1.78
-
Color:
-
White
-
Application:
-
Industry
-
Certificate:
-
ISO9001
-
Service:
-
OEM ODM
-
MOQ:
-
1pcs
-
Packing:
-
Wooden Pallet
-
Sample:
-
Avaliable
Prouduct Parameters
The Main Properties Of
PVDF
PVDF has the best characteristics in fluorine plastic, which are the strongest toughness, low coefficient of friction, strong corrosion resistance, aging and weather resistance, good
radiation resistance. PVDF (polyvinylidene fluoride) has the granular Alias: polyvinylidene fluoride; Fluorine resin-2; F2;F26; PVDF; fluororesin-2. Guangzhou Engineering Plastics
Industries (Group) Company has studied and applied this material in many industries for many years. And we know that the PVDF material has the following main characteristics.
Special properties of PVDF
1. Its Anti degeneration is also one of the optimal fluoride resins.
2. It has excellent insulation properties, dielectric constant (60~ 106Hz) reaches 6.0~8.0.
3. Its radiation-resistant properties are more prominent, radiated by 3x 108 lats r-ray irradiation.
4. It has a high tensile strength, good impact strength and toughness, high hardness and abrasion resistance.
5. Moreover, its water absorption is only 0.03% in 80C; Its chlorine penetrability is the smallest among fluorine resins.
6. The PVDF has the excellent physical properties. The relative density of polyvinylidene fluoride is 1.75~1.78. Long-term use temperature is -40~+125C.
7. The mechanical strength of PVDF is the most superior among Fluorine resin, and under certain temperature and pressure it can still maintain a good intensity.
8. PVDF has the characteristics of prominent anti-aging of UV and weather aging resistance,
its products even stay outdoor 10 or 20 years, they will not be friable or split.
9. PVDF has a good chemical stability. It will not be corrupted by acid, alkali, strong oxidizing agent and halogen at room temperature; it will not be affect by ordinary organic solvents; it can only be swelling or partly dissolved by a handful of chemicals such as fuming sulfuric acid, alkali, ketones and ether; it can be dissolved into a colloidal solution by strong polar organic solvents such as dimethyI acetamide and Dimethyl Sulfoxide (DMSO).
Regular size
Product color:
white and so on.
Sheet Size:
1000mm X 500mm X (6-100)mm ; 2000mm X 1000mm X (6- 100)mm
Rod Size:
(8-100)mm X 1000mm
Product Display
|
Property
|
Item No.
|
Unit
|
Value
|
|
1
|
Density
|
g/cm
3
|
1.79
|
|
2
|
Water absorption (23℃ in air)
|
％
|
0.05
|
|
3
|
Tensile strength
|
MPa
|
50
|
|
4
|
Tensile strain at break
|
％
|
>20
|
|
5
|
Compressive stress (at 2% nominal strain)
|
MPa
|
32
|
|
6
|
Charpy impact strength (unnotched)
|
KJ/m
2
|
No break
|
|
7
|
Charpy impact strength (notched)
|
KJ/m
2
|
10
|
|
8
|
Tensile modulus of elasticity
|
MPa
|
2300
|
|
9
|
Ball indentation hardness
|
N/mm2
|
110
|
|
10
|
Rockwell hardness
|
--
|
M75
|
Customized Service
NO.1 Mail samples
Customized samples, our engineers can make exactly the same products according to the samples you provide, measure the specifications and test the product materials.
NO.2 Provide Drawings
We support CAD drawings, PDF files, 3D formats for customization, such as STP, STEP, X-T, etc.Confidential handling of products according to your needs.
NO.3 Provide Photos
If there are only photos and no detailed drawings and samples, you can provide detailed size specifications of the product, and we can also help you process and produce the product.
Finished Product Display
We can provide customized PVDF accessories and profiles to meet customer needs.
We are a company that focuses on the research, manufacture, and sale of engineering and high-performance plastics. At the same time, we offer machined plastic components. If you have any problems or want to get the quoted price of any plastics or machined components, please feel free to contact us. Our engineers will reply to you as soon as possible.
Application
Our products are applied in many industries such as
Application:
1. Acid and alkali resistant.
2. Anti-corruptedand wearable injection molded parts, wire and cable,sheathing, molding lining pieces.
Test Creatificate
Our Factory
The plant covers an area of 10,000 square meters, and the production equipment includes Haas imported from the United States, CNC machining centers, wire cutting, spark machines, punching machines, injection molding machines, CNC engraving and milling machines, CNC gear hobbing machines, CNC lathes, CNC milling machines, grinding machines and other machinery equipment .
Our company is developing in the mode of quality for survival,brand for development and customer's demand,welcome new and old customers to visit our factory for guidance.
Exhibition & Our Strength
The company has rich experience, strong strength and participated in many high-end exhibitions;Many partners from other countries are visiting.
WELL -KNOWN ENTERPRISE COOPERATION
Cooperation with many well-known companies
Q1. We don't have drawings, can we produce according to the samples we provide?
A1. OK
Q2. How to customize plastic parts?
A2. Customized according to drawings
Q3. Can I make a sample for testing first?
A3. OK
Q4. How long is the proofing cycle？
A4. 2-5 days
Q5. What are your processing equipment？
A5. CNC machining center, CNC lathe, milling machine, engraving machine, injection molding machine, extruder, molding machine
Q6. What craftsmanship do you have for processing accessories？
A6. According to different products, different processes are used, such as machining, extrusion, injection molding, etc.
Q7. Can injection products be surface treated? What are the surface treatments?
A7. OK. Surface treatment: spray paint, silk screen, electroplating, etc.
Q8. Can you help assembling the product after it is made？
A8. OK
Q9. How much temperature can the plastic material withstand？
A9. Different plastic materials have different temperature resistance, the lowest temperature is -40℃, and the highest temperature is 300℃. We can recommend materials according to the working conditions of your company.
Q10. What certifications or qualifications does your company have？
A10. Our company’s certificates are: ISO, Rohs, product patent certificates, etc.
Q2. How to customize plastic parts?
A2. Customized according to drawings
Q3. Can I make a sample for testing first?
A3. OK
Q4. How long is the proofing cycle？
A4. 2-5 days
Q5. What are your processing equipment？
A5. CNC machining center, CNC lathe, milling machine, engraving machine, injection molding machine, extruder, molding machine
Q6. What craftsmanship do you have for processing accessories？
A6. According to different products, different processes are used, such as machining, extrusion, injection molding, etc.
Q7. Can injection products be surface treated? What are the surface treatments?
A7. OK. Surface treatment: spray paint, silk screen, electroplating, etc.
Q8. Can you help assembling the product after it is made？
A8. OK
Q9. How much temperature can the plastic material withstand？
A9. Different plastic materials have different temperature resistance, the lowest temperature is -40℃, and the highest temperature is 300℃. We can recommend materials according to the working conditions of your company.
Q10. What certifications or qualifications does your company have？
A10. Our company’s certificates are: ISO, Rohs, product patent certificates, etc.
