Quick Details
-
Voltage:
-
/
-
Dimension(L*W*H):
-
3200x1200x730 mm
-
Weight:
-
750 kg
-
Key Selling Points:
-
non-required power
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Item:
-
vibrating sluice box
-
Sample testing:
-
Avalibale
-
usage:
-
gold washing machine
-
application:
-
placer gold washing
-
Machine type:
-
gold mining equipment
-
customized service:
-
available
-
Local Service Location:
-
None
-
Certification:
-
ISO9001:2015
Quick Details
-
Production Capacity:
-
high
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Hengcheng
-
Voltage:
-
/
-
Dimension(L*W*H):
-
3200x1200x730 mm
-
Weight:
-
750 kg
-
Key Selling Points:
-
non-required power
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Item:
-
vibrating sluice box
-
Sample testing:
-
Avalibale
-
usage:
-
gold washing machine
-
application:
-
placer gold washing
-
Machine type:
-
gold mining equipment
-
customized service:
-
available
-
Local Service Location:
-
None
-
Certification:
-
ISO9001:2015
low cost easy operating gold mining equipment underflow sluice box for gold panning

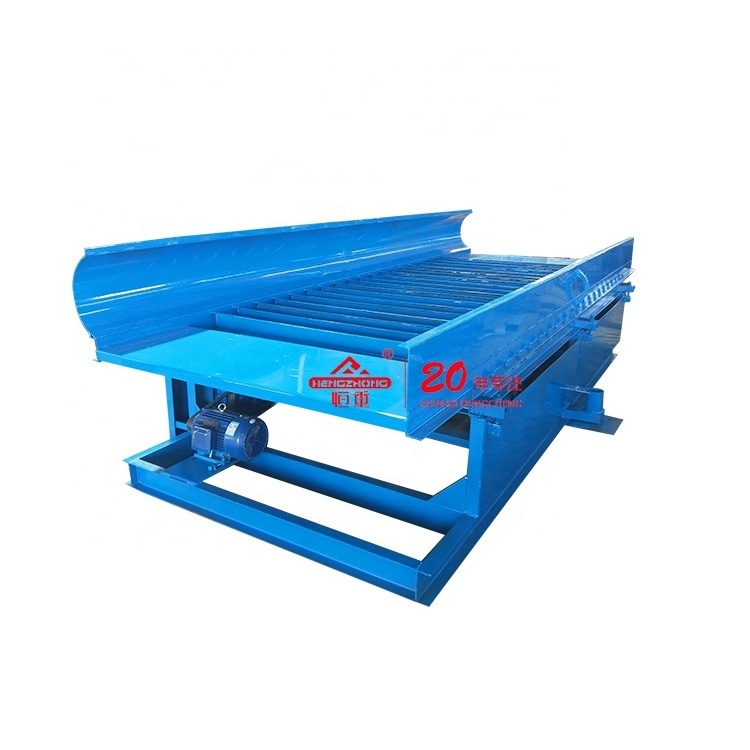

Vibrating gold sluice box which is also called instigating sluice box and agitating sluice box, It is the perfect combination of sluice and jigging machine for having both the advantages of big capacity of sluice chute and jigging characteristics of jig machine. Vibrating sluice box is widely used in gold concentration, to replace the traditional sluice box.
Vibrating gold sluice box has an enhanced gold recovery, especially for the gold of fine particles. The recovery can be up to 85% to 90%. To compare the normal sluice box and vibrating gold sluice box, normal sluice box is with good recovery rate for the big size gold as the volumn and gravity is bigger than the buoyancy of water, so the big particle will go down the sluice. But when the gold is very fine or in flake, it will be difficult to be down.
What is gold Gold Sluice Box ?
• Sluice box is one of the most popular equipment for gold mining,
Which consist the steel structure and carpet. Sluice box is normally used in gold washing plant, it's been wildly used to recovery the placer gold directly together with trammel screen.
- Modern gold prospectors primarily use Sluices box made of metal with miner's moss In the bottom for trapping gold.
Working Principle
There is a rubber pad on the shaking chute bed, which is driven by electric motor and can move up and down .While moving the light gravity material will be flew out by the water, heavy gravity material such as gold & other metal will fall down and be kept.
Main Features
1. Fixed sluice are simple design;
2. No need for power;
3. Big capacity;
4. Good concentration ratio;
5. Easy maintain and easy use.
Gold vibrating sluice box Specification :
|
Model |
FGS-12 |
FGS-15 |
|
Dimension (mm) |
3200x1200x730 |
4000x1500x730 |
|
Capacity (m³/h) |
20-25 |
30-35 |
|
Feeding size (mm) |
<20 |
<20 |
|
Slurry density (%) |
30 |
30 |
|
Water required (m³/h) |
40-50 |
60-80 |
|
Motor power (KW) |
Driving motor 1.1kw
|
Driving motor 2.2kw
|
|
Recovery (%) |
90 |
90 |
|
Frequency (shift/min) |
28-30 |
28-30 |
|
Slope angle for installation |
6°-7° |
6°-7° |
|
Concentration Cleaning Up Cycle (h) |
4 |
4 |
|
Weight (kg) |
750 |
1100 |
1. All the goods will be delivered in 10-20 days after receving payment.
2. The machine will be packed in export container.
3. Motors and small parts will be packed in new strong wooden cases that suitable for long distance ocean transportation.
4. We promise that your goods will be shipped to destination timely and safely.
