Quick Details
-
Application:
-
Office Building
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Jielong
-
Model Number:
-
ECR-225-1P-(400)
-
Type:
-
Automatic Door Operators
-
Voltage::
-
220V±10%,110V,240V
-
Frequency::
-
50-60HZ
-
Corn of motor::
-
Pure Copper
-
Other material::
-
Aluminium,Iron,electron
-
Certificate::
-
CCC,CE, ISO 2000:2008
-
Lift Capacity::
-
200kg~2000kg are available
-
Protection Grade::
-
IP 40
-
Color:
-
Silver, can be customized
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, total solution for projects, Others
-
Application:
-
Office Building
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Jielong
-
Model Number:
-
ECR-225-1P-(400)
-
Type:
-
Automatic Door Operators
-
Voltage::
-
220V±10%,110V,240V
-
Frequency::
-
50-60HZ
-
Corn of motor::
-
Pure Copper
-
Other material::
-
Aluminium,Iron,electron
-
Certificate::
-
CCC,CE, ISO 2000:2008
-
Lift Capacity::
-
200kg~2000kg are available
-
Protection Grade::
-
IP 40
-
Color:
-
Silver, can be customized
JIELONG
Shutter Motors Ltd
estableshed in 1988, Focus on Industrial shutter door opener, Fireproof door motor, Rolling shutter door motor and their accessories. Following accumulated technical experience, management system for more than 27 years,
JIELONG
has become the leading manufacturer of rolling shutter door in China.
PRODUCTS FEATURES:
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- Pleasing designs with powerful drive.
- With 120 ℃ overheat protection, overload protection.
- Safety Brake, accurate limited control positioning, with double limit switches protection.
- Manual operation when power-off.
- Easy to install, easy to maintain and long product life.
- With the national patent of Chian-break protection device.

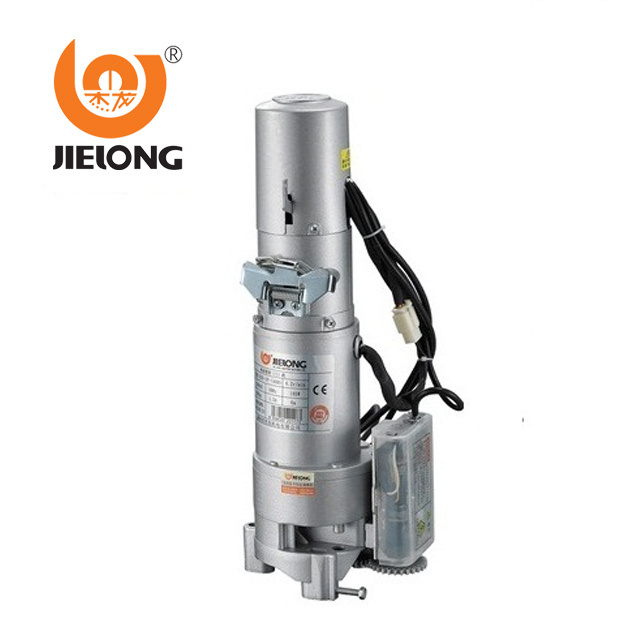

ECR 400kg Rolling Door Motor
| TECHNICAL PARAMETERS: |
| Model | Rated output forque (N.m) | Rated output speed (r/min) | Motor power (W) | Rated voltage (V/Hz) | Rated current (A) |
Continuous working time (min) |
Durm dube outer diameter (mm) | Max. lifting power (kg.f) |
Max. lift height (m) |
|
| Profile thickness (mm) | ||||||||||
| 15 | 20 | |||||||||
| Single phase motor | ||||||||||
| ECR-84-1P | 84 | 5.0 | 75 | 220/50 | 2.8 | 7 | 89 | 200 | 4 | 4.5 |
| ECR-168-1P | 168 | 5.0 | 250 | 220/50 | 2.8 | 7 | 114 | 300 | 6 | 7 |
| ECR-225-1P | 225 | 4.2 | 180 | 220/50 | 1.8 | 7 | 114 | 400 | 6 | 7 |
| ECR-343-1P | 343 | 4.8 | 370 | 220/50 | 3.2 | 7 | 140 | 500 | 6 | 7 |
| ECR-412-1P | 412 | 4.8 | 370 | 220/50 | 3.3 | 7 | 140 | 600 | 6 | 7 |
| ECR-647-1P | 647 | 4.0 | 400 | 220/50 | 4.7 | 7 | 165 | 800 | 7 | 7 |
| ECR-809-1P | 809 | 3.5 | 400 | 220/50 | 4.9 | 7 | 165 | 1000 | 6 | 7 |
| ECR-1617-1P | 1617 | 3.3 | 700 | 220/50 | 8.2 | 7 | 219 | 1500 | 9 | 10 |
| Three phase motor | ||||||||||
| ECR-168-3P | 168 | 5.0 | 250 | 380/50 | 1.5 | 15 | 114 | 300 | 6 | 7 |
| ECR-225-3P | 225 | 4.2 | 180 | 380/50 | 0.75 | 15 | 114 | 400 | 6 | 7 |
| ECR-343-3P | 343 | 4.8 | 250 | 380/50 | 1.5 | 15 | 140 | 500 | 6 | 7 |
| ECR-412-3P | 412 | 4.8 | 250 | 380/50 | 1.5 | 15 | 140 | 600 | 6 | 7 |
| ECR-647-3P | 647 | 4.0 | 370 | 380/50 | 2.3 | 15 | 165 | 800 | 7 | 8 |
| ECR-809-3P | 809 | 3.5 | 370 | 380/50 | 2.8 | 15 | 165 | 1000 | 6 | 7 |
| ECR-1401-3P | 1401 | 4.4 | 850 | 380/50 | 3.2 | 15 | 219 | 1300 | 7 | 8 |
| ECR-1617-3P | 1617 | 5.2 | 1000 | 380/50 | 3.8 | 15 | 219 | 1500 | 8 | 9 |
| ECR-2450-3P | 2450 | 3.6 | 1000 | 380/50 | 4.1 | 15 | 245 | 2000 | 12 | 13 |
Machine as Artworks
| ECR MOTOR ACCESSORIES: |
|
bracket board, side board, 1 big sprocket wheel, 1 small sprocket wheel, 3 discs, 1 chian, 1 bearing, 1 shaft |
| OPTIONAL DEVICES: |
