Quick Details
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
zhongding
-
Model Number:
-
ZD1507207
-
Color:
-
clear,green,opal,bronze,blue,orange,red,lake blue
-
Thickness:
-
4mm,6mm, 8mm, 10mm,12mm,14mm,16mm
-
Size:
-
2100x5800mm
-
UV coating:
-
50 micron
-
Quality:
-
10 years guarantee
-
MOQ:
-
1000sqm
-
Delivery:
-
within 7 days once confirm your deposit
-
Package:
-
Both sides with PE film
-
Style:
-
polycarbonate greenhouse panels,polycarbonate greenhouse sheet
-
Remarks:
-
OEM acceptable
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation
-
Project Solution Capability:
-
graphic design, 3D model design
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
zhongding
-
Model Number:
-
ZD1507207
-
Color:
-
clear,green,opal,bronze,blue,orange,red,lake blue
-
Thickness:
-
4mm,6mm, 8mm, 10mm,12mm,14mm,16mm
-
Size:
-
2100x5800mm
-
UV coating:
-
50 micron
-
Quality:
-
10 years guarantee
-
MOQ:
-
1000sqm
-
Delivery:
-
within 7 days once confirm your deposit
-
Package:
-
Both sides with PE film
-
Style:
-
polycarbonate greenhouse panels,polycarbonate greenhouse sheet
-
Remarks:
-
OEM acceptable

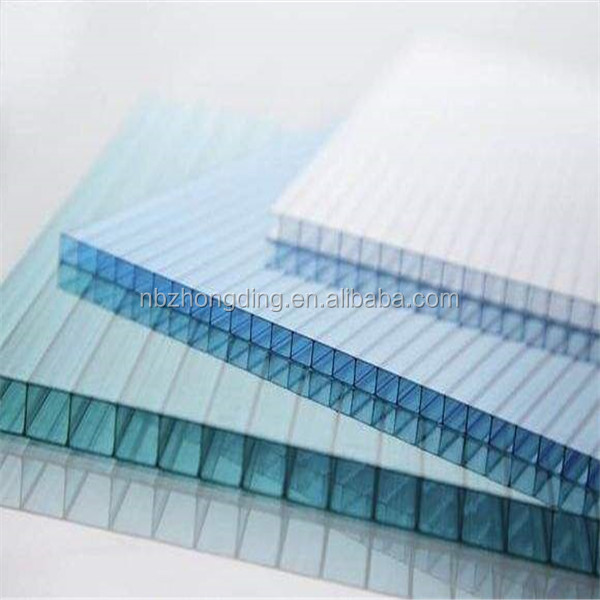

Zhongding polycarbonate hollow sheet/embossed polycarbonate solid sheet/polycarbonate corrugated sheet:
Brief Introduction
|
Thickness: |
4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm |
|
Width: |
1220mm-2100mm. |
|
Length: |
5800mm,6000mm,11800mm. |
|
Material: |
100% virgin Bayer/Lexan material. |
|
Color: |
Clear, Green, Blue ,Brown ,Opal ,Red ,Yellow. |
|
Coating: |
50 micron UV protection(One side or two sides). |
|
Guarantee: |
10 years. |
|
Certificate: |
ISO9001:2008, ROHS , SGS. |
|
Delivery Time: |
7-10 days once confirm your deposit. |
|
Payment: |
T/T , LC , CASH . |
|
Remarks: |
Special size and colors can be customized. |
Specification:
|
Thickness (mm) |
Structure |
Weight (g/sqm) |
Min. Bend Radius (mm) |
K Value (W/M2K) |
|
4 |
2-layer
|
850 |
700 |
4.1 |
|
5 |
1000 |
875 |
3.8 |
|
|
6 |
1300 |
1050 |
3.6 |
|
|
8 |
1500 |
1400 |
3.3 |
|
|
10 |
1700 |
1750 |
3.0 |
|
|
6 |
3-layer
|
1400 |
1050 |
3.4 |
|
8 |
1600 |
1400 |
3.2 |
|
|
10 |
2000 |
1750 |
2.7 |
|
|
12 |
2100 |
2100 |
2.6 |
|
|
14 |
2400 |
2450 |
2.4 |
|
|
16 |
2600 |
2800 |
2.2 |
Features:
| 1) Impact strength: | 850J/m. About 200-350 times of common glass. |
| 2) Light weight: | About 1/2 times of glass of the same thickness. |
| 3) Light transmission: | 80%-92% for different thickness of clear color. |
| 4) Specific gravity: | 1.2 g/cm3 |
| 5) Coefficient of thermal expansion: | 0.065 mm/m° C |
| 6) Temperature range: | -40° Cto 120° C |
| 7) Heat conductivity: | 2.3-3.9 W/m2 º |
| 8) Tensile strength: | >=60N/mm2 |
| 9) Flexural strength: | 100N/mm2 |
| 10) Heat deflection temperature: | 140 ° C |
| 11) Modulus of elasticity: | 2, 400mPa |
| 12) Tensile street at break: | >=65mPa |
| 13) Elongation at break: | >100% |
| 14) Specific heat: | 1.16J/kgk |
| 15) Soundproof index: | 4mm-27dB,10mm-33dB |
More pictures:
Applications :
| 1), Roofing skylight for office building,department store, hotel, stadium, school. |
| 2), Soundproof shields on express ways. |
| 3), LED diffused, Advertising lamp boxes, sign board.Telepohne booths |
| 4), Anti-riot shield, bullet resistant material, Bank ATMs. |
| 5), Agricultural greenhouses, zoos, botanical gardens. |
| 6), Swimming Pools roofing/cover/sheet |
| 7), Lighting for corridors, balcony, passages and subway entries, walkways. |
| 8), Walls, roofs,windows,screens,shower enclosure. |
| 9), Instrument and machine windscreen |
