Quick Details
-
Model Number:
-
12V 200ah
-
Battery Size:
-
525±1*270±1*220±1mm
-
Place of Origin:
-
China
-
Type:
-
Li-Ion
-
Product name:
-
lifepo4 batteries 200 amp
-
Cycle life:
-
more than 3000 Times
-
Weight:
-
about30kg
-
Cut-off voltage:
-
10V
-
Standard charge current:
-
200A
-
Warranty:
-
3years
-
Chargeable:
-
Yes
-
Certification:
-
CE/RoHS/UN38.3/MSDS
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
Consumer Electronics, BOATS, Golf Carts, SUBMARINES
-
Brand Name:
-
cyclenpo
-
Model Number:
-
12V 200ah
-
Battery Size:
-
525±1*270±1*220±1mm
-
Place of Origin:
-
China
-
Type:
-
Li-Ion
-
Product name:
-
lifepo4 batteries 200 amp
-
Cycle life:
-
more than 3000 Times
-
Weight:
-
about30kg
-
Cut-off voltage:
-
10V
-
Standard charge current:
-
200A
-
Warranty:
-
3years
-
Chargeable:
-
Yes
-
Certification:
-
CE/RoHS/UN38.3/MSDS
Product Description
CYCLEN is a professional manufacturer offering research, development, production, and sales services of lithium ion battery cell, and battery packs.
We design and manufacture custom-made batteries and cells for the specific needs. Customized lithium lifepo4 battery pack from 3.2V-96V, 10AH-600AH, which can be used in RV ,EV, Solar system, E-bike, UPS, energy storage system, telecommunication base station, E-scooter, E-tools, golf cart, fork lift,cleaning car , electric wheelchair, and other deep cycle application.
|
Normal performance
|
|
|
|
|||
|
NO
|
Item
|
General Parameter
|
Remark
|
|||
|
1
|
Model
|
3.2Ⅴ25Ah
|
Single
|
|||
|
2
|
Casing material for single cell
|
Nickel plated steel
|
|
|||
|
3
|
Standard capacity(0.2C5A)
|
200Ah
|
|
|||
|
4
|
Rated voltage
|
12.8V
|
3.20V(Work voltage:3.20V)
|
|||
|
5
|
Max.Charge voltage
|
14.6V
|
3.65V(Single Ave. charge Voltage)
|
|||
|
6
|
Cut-off voltage
|
10V
|
2.50V(Single Ave. Discharge Voltage)
|
|||
|
8
|
Standard charge current
|
30A
|
0.2C
|
|||
|
9
|
charging Time
|
About 5h
|
|
|||
|
10
|
Max Continuous discharge current
|
175A
|
1.17C
|
|||
|
11
|
Peak discharge current
|
320A
|
2.1C10seconds
|
|||
|
12
|
Battery dimension
|
525±1*270±1*220±1mm
|
|
|||
|
13
|
(Approx.)Total weight(Approx.)
|
About 30kg
|
|
|||
|
14
|
(Max, at 1000Hz.)Impedance(Max, at 1000Hz.)
|
≤ 20mΩ
|
|
|||
|
15
|
(CC/CV)
Charge method (CC/CV) |
Standard
|
0℃~45℃
|
|||
|
|
|
discharge
|
-20℃~45℃
|
|||
|
|
|
storage
|
-20℃~45℃
|
|||
Detailed Images
Features
1.Delivery high power
2.Good high-temperature resistance.
3.No memory effect
4.Higher-capacity compare with same size lead acid battery
5.Longer cycle life than other lithium-ion batteries
6.
Good safety characteristics and Eco-friendly
7.Ideal drop-in replacement for lead-acid batteries

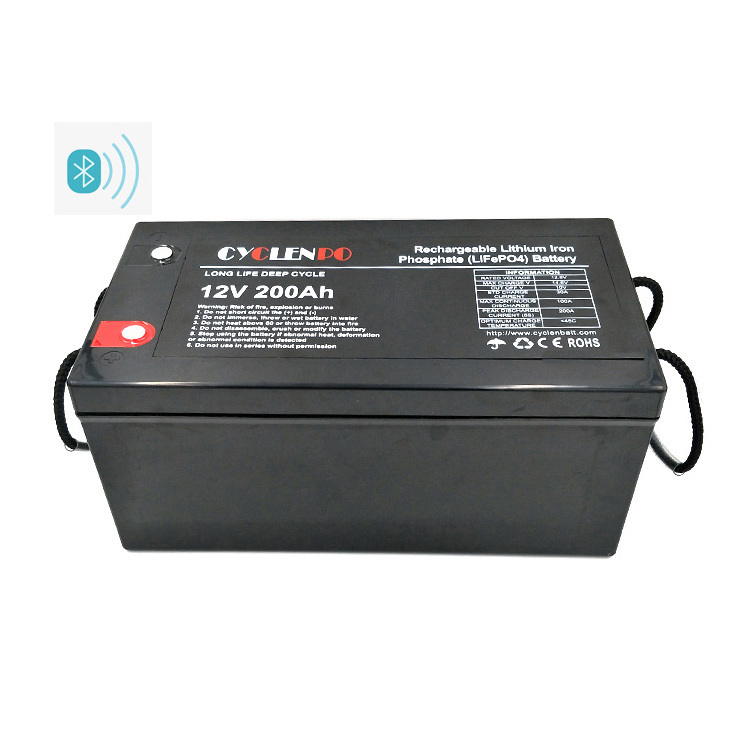

This battery also built with bluetooth function which allows you read battery status freely anytime.
