Quick Details
-
Year:
-
2022
-
Voltage:
-
220/380/400/415V,Customizable
-
Dimension(L*W*H):
-
900*600*1100mm
-
Motor Power (kW):
-
2.2
-
Weight (T):
-
0.55
-
Product name:
-
QA32-8 Punching Shearing Machine
-
Function:
-
Steel Metal Punching
-
Model:
-
Customizable
-
Power press:
-
Mechanical Stamping Press
-
Color:
-
Customers Requirement
-
After Warranty Service:
-
Online support,Video technical support
-
Certificate:
-
CE
Quick Details
-
Nominal Force (kN):
-
360
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TQ
-
Year:
-
2022
-
Voltage:
-
220/380/400/415V,Customizable
-
Dimension(L*W*H):
-
900*600*1100mm
-
Motor Power (kW):
-
2.2
-
Weight (T):
-
0.55
-
Product name:
-
QA32-8 Punching Shearing Machine
-
Function:
-
Steel Metal Punching
-
Model:
-
Customizable
-
Power press:
-
Mechanical Stamping Press
-
Color:
-
Customers Requirement
-
After Warranty Service:
-
Online support,Video technical support
-
Certificate:
-
CE
Product Description

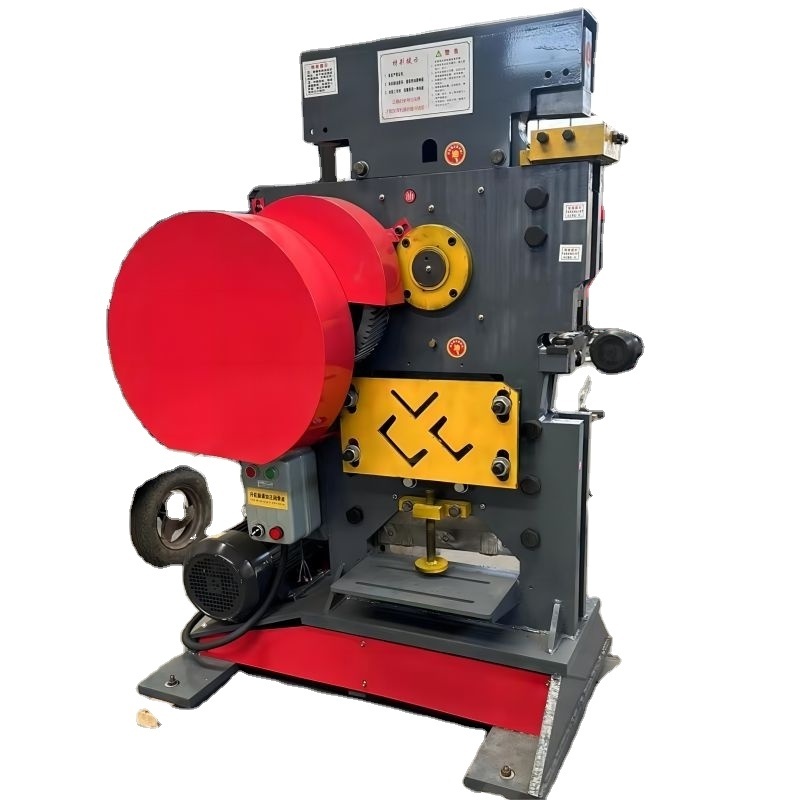

TZ32-8 multiifunctional punching and shearing machine
Multi function combined punching and shearing machine is a new type of shearing and punching equipment, which is widely used in the market. The device is a foot switch, which is flexible and safe to operate. The product is novel, easy to operate and widely applicable.
This machine is applicable to punching and shearing cold round steel, angle steel, channel steel, square steel, flat steel, steel plate, I steel, H steel and C steel with tensile strength less than 450MPa. It can also carry out special-shaped processing on angle steel, channel steel, etc., and shear and punch sheet materials.
It is widely used in machining, construction, electric power, shipbuilding, automobile, railway and other industries.
Specification
|
Model NO.
|
QA32-8
|
QA32-10
|
QA32-12
|
QA32-14
|
|
Shearing force
|
360KN
|
500KN
|
900KN
|
1200KN
|
|
Motor
|
2.2KW
|
3KW
|
4KW
|
5KW
|
|
Voltage
|
380V 50HZ 3p
|
380V 50HZ 3p
|
380V 50HZ 3p
|
380V 50HZ 3p
|
|
Weight
|
550KG
|
700KG
|
1100KG
|
1400KG
|
|
Dimensioin
|
900*600*1100mm
|
900*600*1250mm
|
1100*600*1450mm
|
1200*700*1500mm
|
|
Number of strokes
|
30/min
|
30/min
|
30/min
|
30/min
|
|
Cutter travel distance
|
27mm
|
30mm
|
36mm
|
40mm
|
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
