Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
wkd
-
Weight (KG):
-
105 KG
-
Product Name:
-
Triple Grinding Miller
-
Material:
-
Agate
-
Machine Type:
-
Grinder Mill
-
Feed Size:
-
-1.5mm
-
Outcome Granularity:
-
200mesh
-
Capacity(t/h):
-
0-30g
-
Motor:
-
0.37kw
-
Weight:
-
105kg
-
MOQ:
-
1 Set
-
Usage:
-
Grinding Ores
Quick Details
-
Output (kg/h):
-
10 - 50 kg/h
-
Feeding Size (mm):
-
0 - 1.5 mm
-
Output Size (mesh):
-
0 - 200 mesh
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
wkd
-
Weight (KG):
-
105 KG
-
Product Name:
-
Triple Grinding Miller
-
Material:
-
Agate
-
Machine Type:
-
Grinder Mill
-
Feed Size:
-
-1.5mm
-
Outcome Granularity:
-
200mesh
-
Capacity(t/h):
-
0-30g
-
Motor:
-
0.37kw
-
Weight:
-
105kg
-
MOQ:
-
1 Set
-
Usage:
-
Grinding Ores
Product Overview
Laboratory

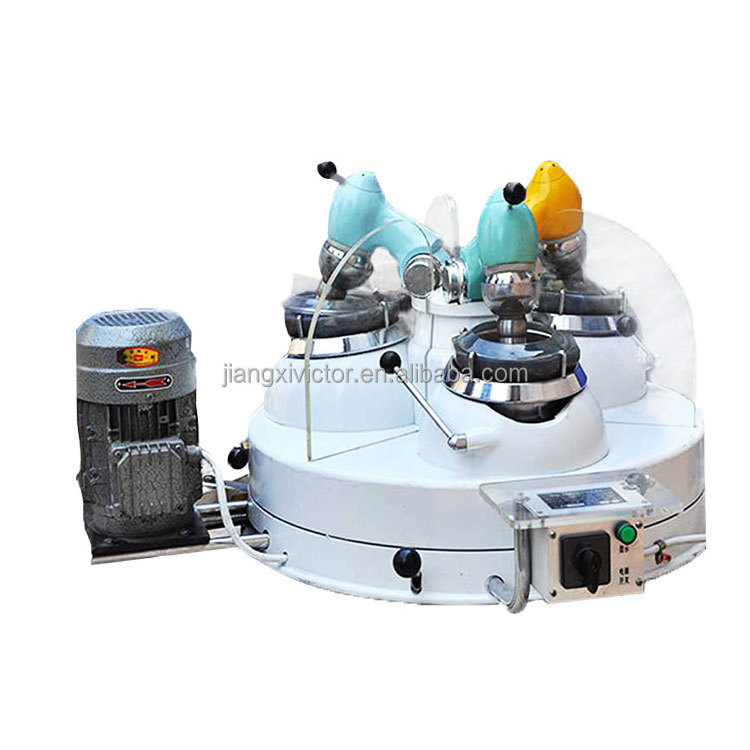

Triple Grinding Miller
XPM 120x3 mechanical agate mortar and pestle miller is a kind of grinding equipment which mill and analyze samples through dry grinding. mechanical grinding miller are mainly used to mill and analyze samples by laboratories in departments such as metallurgy, building material, coal, water and electricity, commercial inspection, and geology. Laboratory Grinding Mill are also used to grind a small quantity of materials.
FEATURES AT A GLANCE
Work Operational Principle
Grinding head, mortar support and clutch are evenly installed on the rotating seat and in the bearing of rotating seat, at an angle of 120 between each two of them. On the front of the base are mounted receiving support plate and electrical equipment; on its left is installed a motor.
When the clutches are connected, the motor drives the rotation of the grinding head through the belt pulley, gear shaft.The other end of gear shaft and the gear of mortar support engage. Since relative sliding occurs due to clockwise rotation of grinding bar and clockwise rotation of mortar, the materials are ground through the weight of grinding head.
When the clutches are connected, the motor drives the rotation of the grinding head through the belt pulley, gear shaft.The other end of gear shaft and the gear of mortar support engage. Since relative sliding occurs due to clockwise rotation of grinding bar and clockwise rotation of mortar, the materials are ground through the weight of grinding head.
PRODUCT SPECIFICATIONS
|
Technical Parameters of Lab Three Head Milling Machine
|
|
|
||
|
Model
|
Unit
|
XPM120*3
|
||
|
Diameter of mortar
|
mm
|
120
|
||
|
Amount of grinder head
|
pcs
|
3
|
||
|
Rotary Speed of pestle
|
r/min
|
220
|
||
|
Rotary Speed of mortar
|
r/min
|
9
|
||
|
Feed size
|
mm
|
-1.5
|
||
|
Capacity of each bowl
|
g
|
30
|
||
|
Power
|
w
|
370
|
||
|
Overall dimension
|
mm
|
750*700*480
|
||
|
Weight
|
kg
|
105
|
||
