DYNAMIC Road Compaction Hand Mini Walk Behind Reversible Portable Vibrating Plate Compactor Machine Compactador With Water Tank

DYNAMIC Road Compaction Hand Mini Walk Behind Reversible Portable Vibrating Plate Compactor Machine Compactador With Water Tank

FOB Reference Price: Get Latest Price

≥1 Pieces

US $419

≥3 Pieces

US $400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: Gasoline Power

Power:: 5.5hp

Weight:: 86 kg

Dimension(L*W*H):: 1100*400*950

Engine:: Air-cooled, 4 cycle, Gasoline

Engine type:: Honda GX160

Fuel Tank:: 3.6 liter

PLATE SIZE:: 590*400mm

After Warranty Service:: Online support

Max. Forwards or backwards speed:: 20 m/min

Compacting force:: 13 KN

Working height of handle:: 680 mm

Max. Power output:: 5.5 HP

Name:: HZR-70

Quick Details

Marketing Type:: New Product 2023

Place of Origin:: Shanghai, China

Brand Name:: DYNAMIC

Voltage:: Gasoline Power

Power:: 5.5hp

Weight:: 86 kg

Dimension(L*W*H):: 1100*400*950

Engine:: Air-cooled, 4 cycle, Gasoline

Engine type:: Honda GX160

Fuel Tank:: 3.6 liter

PLATE SIZE:: 590*400mm

After Warranty Service:: Online support

Max. Forwards or backwards speed:: 20 m/min

Compacting force:: 13 KN

Working height of handle:: 680 mm

Max. Power output:: 5.5 HP

Name:: HZR-70

Profile

Shanghai Jiezhou Engineering & Mechanism Co., Ltd. (hereinafter referred to as “DYNAMIC”) is a professional manufacturer producing world-class concrete products for Road Industry. Located in Shanghai city of China, Dynamic established since 1983 and has been involved in a wide variety of road construction projects all around the domestic and overseas. DYNAMIC are based on humanism design, our product feature good appearance, reliable quality and stable performance which make you feel comfortable and convenient during the operation. They have been certified by ISO9001 Quality System and CE Safety System.

Product Description

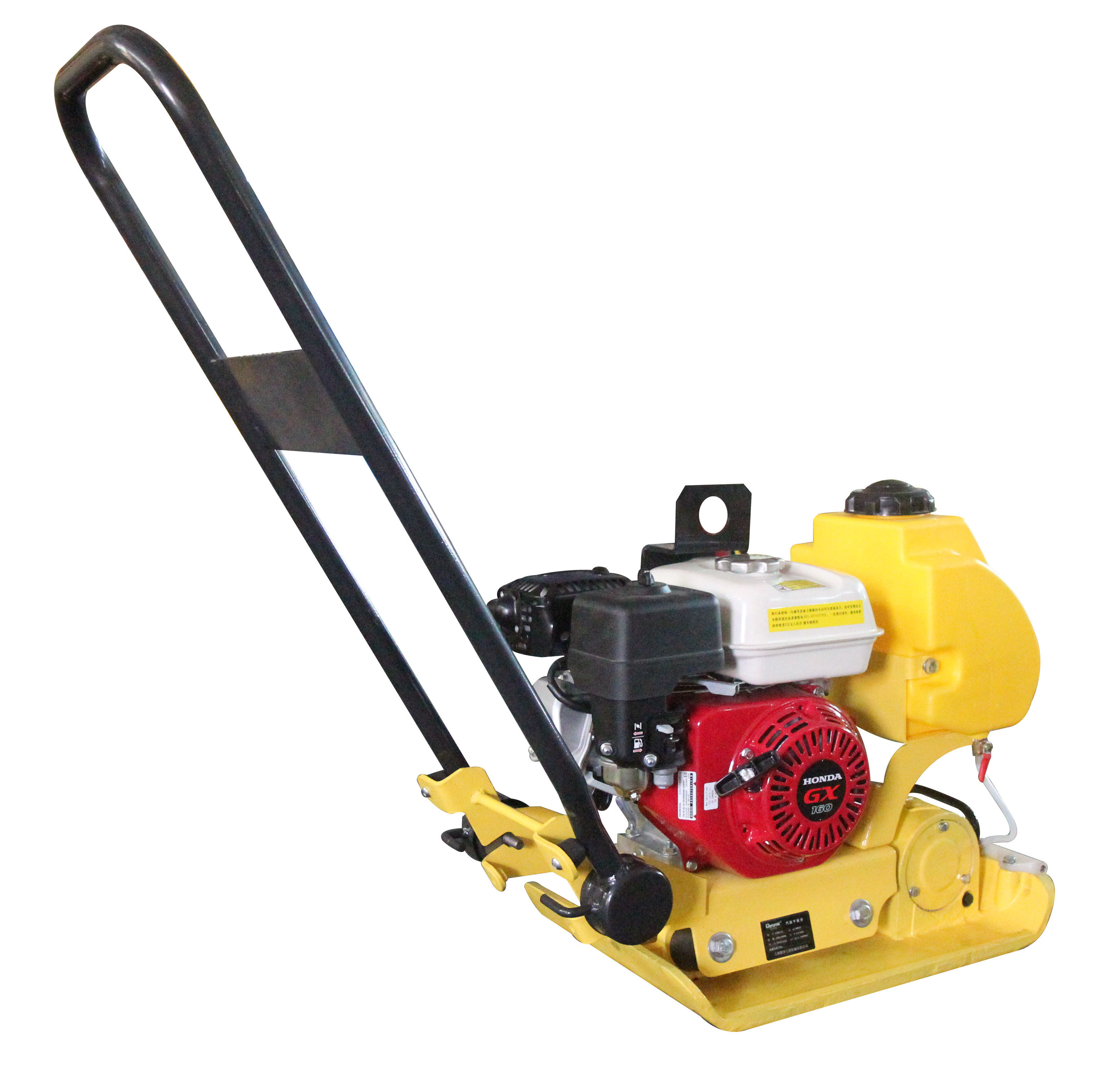

The HZR-70 plate compactor is powered by Honda GX-160 engine. The ramming capacity of 10 kilonewtons can be used in various soil,
asphalt, floor tiles, gardens and other environments. The integral base plate of nodular cast iron is solid and durable. There are
also water tank, damping pad, walking wheel and other accessories to choose from.

Model	HZR-70
Model	HZR-70
Weight kg (lb)	67
Dimension mm (in)	L1070W350H880
Plate size mm(in)	L535xW350
Centrifugal force kn	10
Forward travel m/min	22
Type	Honda GX160
Max. output kw(hp)	4.0/5.5
Max. speed rpm	3600
Fuel Tank liter(gal)	3.6

Features

1.DYNAMIC wacker mini garbage/roll plate compactor with Honda GX160
This machine are ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer
works and building construction. The asphalt models are suitable for hot or cold asphalt applications in confined areas.
2.Optimally suited for a variety of compaction applications due to high travel speeds and ease of maneuverability.
3.Guide handle with patented vibration dampening increase operator comfort and reduces fatigue.
4.The large capacity water tank and the wide filler opening improve productivity.
5.Tough ductile iron baseplate is extremely durable even under extremely conditions and provides for long service. Optional wheel
kit offer easier moving and transport.
