Quick Details
-
Color:
-
red,white,blue,green
-
Panel Size:
-
19x12.5x3.75mm, 19x12.5x3.75mm
-
Place of Origin:
-
China
-
Model Number:
-
JSS-5612A/Bxx
-
HS Code:
-
8531200000
-
name:
-
0.56 inch 1 digit 7 segment smd led display
-
Tube Chip Color:
-
FULL COLOR
-
digit height:
-
0.56 inch
-
segment color:
-
white diffused
-
surface color:
-
grey surface
-
polarity:
-
common anode or common cathode
-
OEM:
-
Yes
-
Warranty:
-
2 years
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
JSTRONIC
-
Color:
-
red,white,blue,green
-
Panel Size:
-
19x12.5x3.75mm, 19x12.5x3.75mm
-
Place of Origin:
-
China
-
Model Number:
-
JSS-5612A/Bxx
-
HS Code:
-
8531200000
-
name:
-
0.56 inch 1 digit 7 segment smd led display
-
Tube Chip Color:
-
FULL COLOR
-
digit height:
-
0.56 inch
-
segment color:
-
white diffused
-
surface color:
-
grey surface
-
polarity:
-
common anode or common cathode
-
OEM:
-
Yes
-
Warranty:
-
2 years

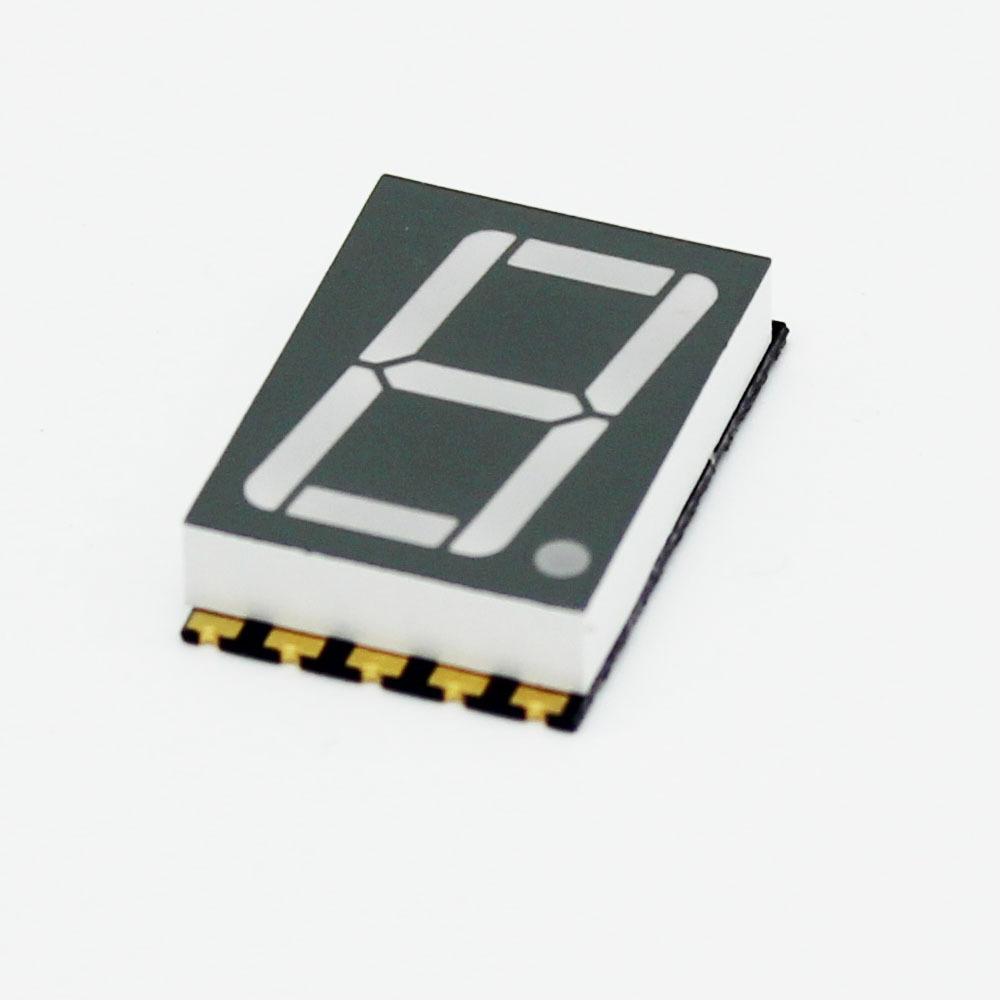

single digit 0.56 inch 7 segment led smd display
0.56 inch 7 segment smd led display dimension and circuit
*Ultra segment intensity
*Wide viewing angle
*Range of colors
*Gray or black face White segment
*RoHS compliant
*0.56 inch 7 segment smd display
0.56 inch 1 digit 7 segment smd seven segment led display
Electro/Optical Characteristics If=20mA Ta=25 C
|
Part Number |
EMITTED COLOR |
Peak Wavelength (mn) |
Vf(V) |
Iv( mcd ) |
|||
|
Common Cathode |
Common Anode |
Type |
Max |
Min |
Typ |
||
|
JSS-5611AUR |
JSS-5611BUR |
AlGaInP/GaAs Super red |
630 |
2.0 |
2.5 |
10 |
20 |
|
JSS-5611AUE |
JSS-5611BUE |
AlGaInP/GaAs Ultra red |
625 |
2.0 |
2.5 |
40 |
80 |
|
JSS-5611AUA |
JSS-5611BUA |
AlGaInP/GaAs Ultra Amber |
605 |
2.0 |
2.5 |
40 |
60 |
|
JSS-5611AUY |
JSS-5611BUY |
AlGaInP/GaAs Ultra Yellow |
590 |
2.0 |
2.5 |
40 |
60 |
|
JSS-5611AUG |
JSS-5611BUG |
AlGaInP/GaAs Yellow Green |
574 |
2.0 |
2.5 |
10 |
15 |
|
JSS-5611APG |
JSS-5611BPG |
InGaN/Sic Pure Green |
525 |
3.2 |
3.8 |
150 |
200 |
|
JSS-5611AUB |
JSS-5611BUB |
InGaN/Sic Ultra Blue |
470 |
3.2 |
3.8 |
40 |
50 |
|
JSS-5611AUW |
JSS-5611BUW |
InGaN/Sic Ultra White |
x-0.31/y-0.31 |
3.2 |
3.8 |
200 |
400 |
Products detailed picture
Note: If 5611 layout don't meet your requirements, it also have below 5612 type for choose
1.We can supply all kinds of SMD 7 segment led display from 0.20inch to 0.80inch
Digit number:1,2,3 and 4 digits
2.We can offer both 7 segment and 14 segment SMD led display
3.Avaliable color:red,yellow,green,blue,white etc
4.Face color:Grey
5.Lens color:white diffused
1. How to shipping ?
(1) Normally , it will be shiped out by DHL UPS TNT express or other express for the weight is not too heave and box size is small .
(2) it will be shipping out by air or sea once the weight and size is huge enough.
(3) the shpping way from our clients' advise.
2.what will be the types of payment?
The payment we can accept are T/T transaction,Paypal,Western Union,etc.
3.Could you please send me the samples for comfirm the quality?
Of course ,We can provide some free samples for our clients comfirm the quality.
Our main is to help customer reach their goals.We are making great efforts to achieve their win-win situation and sincerely welcome you to join us.
Welcome to visit our factory.
For more details or free samples testing,please "send" now
