Quick Details
-
Productivity:
-
62/105M³/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
minle
-
Weight:
-
44000 kg
-
Dimension(L*W*H):
-
14180*2550*4000
-
Warranty of core components:
-
Details consultation
-
concrete output Pressure:
-
10.1 MPa
-
Hopper capacity:
-
600L
-
Placing depth:
-
58m
-
Horizontal distance:
-
53m
-
Slewing angle:
-
±270°
-
Oil tank volume:
-
650L
-
Maximum water pressure:
-
0.8MPa
-
Water tank volume:
-
1000L
-
Product name:
-
Concrete Pump Truck
-
Concrete pump type:
-
Reliable Concrete Pumping
Quick Details
-
Power Type:
-
Details consultation
-
Max. vertical conveying distance:
-
Details consultation
-
Max. horizontal conveying distance:
-
Details consultation
-
Productivity:
-
62/105M³/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
minle
-
Weight:
-
44000 kg
-
Dimension(L*W*H):
-
14180*2550*4000
-
Warranty of core components:
-
Details consultation
-
concrete output Pressure:
-
10.1 MPa
-
Hopper capacity:
-
600L
-
Placing depth:
-
58m
-
Horizontal distance:
-
53m
-
Slewing angle:
-
±270°
-
Oil tank volume:
-
650L
-
Maximum water pressure:
-
0.8MPa
-
Water tank volume:
-
1000L
-
Product name:
-
Concrete Pump Truck
-
Concrete pump type:
-
Reliable Concrete Pumping
|
Pumping system
|
Project
|
Unit
|
Value
|
|
|
|
|
Max. Theor. output
|
m3/h
|
170
|
|
|
|
|
Max. Theor. concrete output Pressure
|
MPa
|
10.1
|
|
|
|
|
Hopper capacity
|
L
|
600
|
|
|
|
|
Filling height
|
mm
|
1400
|
|
|
|
|
Hydraulic system type
|
|
Open loop
|
|
|
|
|
Distribution valve
|
|
S valve
|
|
|
|
|
Oil cylinder dia.×stroke
|
mm
|
φ140×2100
|
|
|
|
|
Concrete cylinder dia.×stroke
|
mm
|
φ260×2100
|
|
|
|
|
Hydraulic oil cooling
|
|
Air cooling
|
|
|
|
|
Recommended concrete slump
|
cm
|
12~23
|
|
|
|
|
Max. aggregate dimension
|
mm
|
40
|
|
|
|
Placing boom
|
Placing depth
|
m
|
58
|
|
|
|
|
Horizontal distance
|
m
|
53
|
|
|
|
|
Placing depth
|
m
|
41.2
|
|
|
|
|
Slewing angle
|
|
±270
|
|
|
|
|
Pipe diameter
|
mm
|
125
|
|
|
|
|
End hose length
|
mm
|
3000
|
|
|

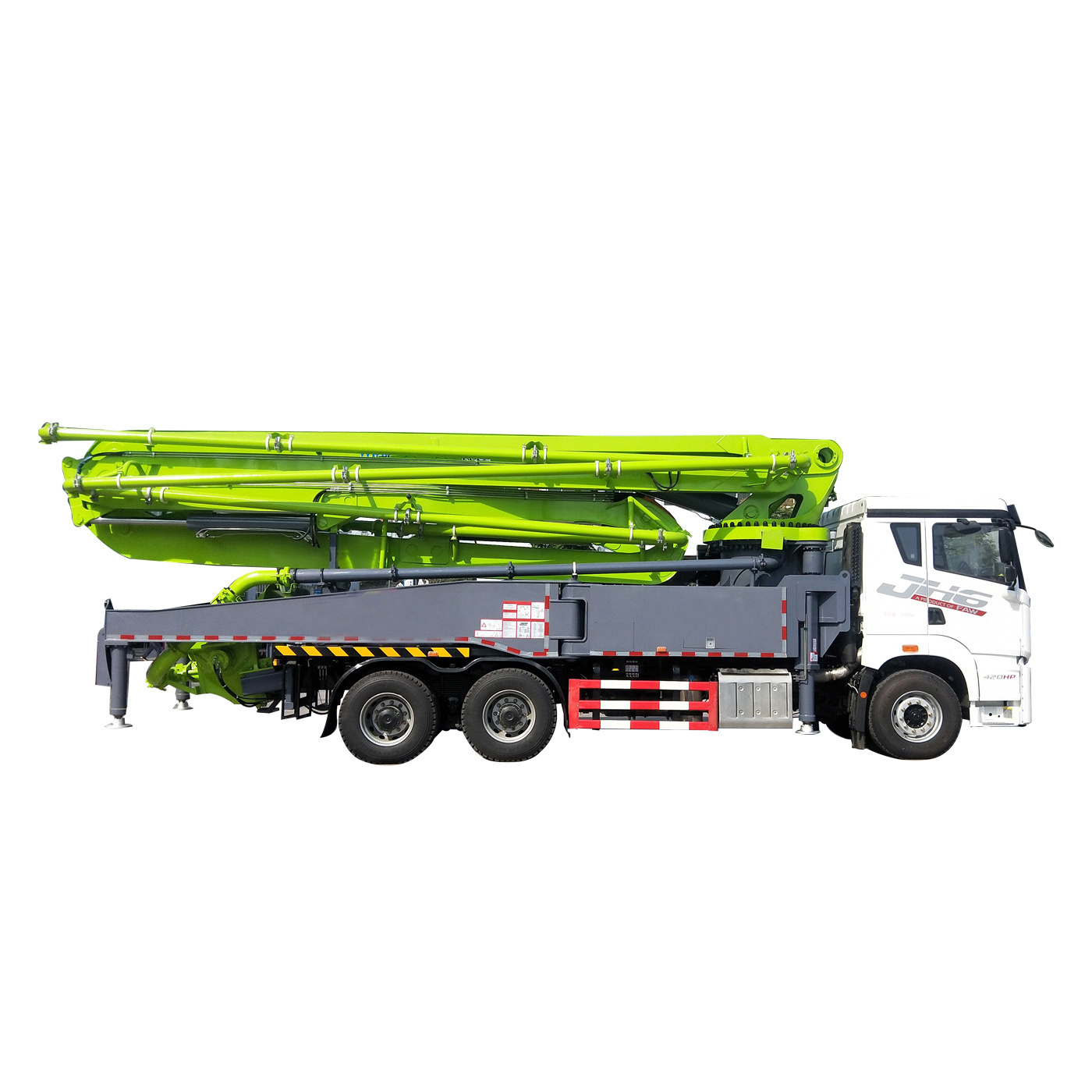

Truck-mounted concrete boom pump truck
Truck-Mounted Concrete Boom Pump is a convenient and efficient dedicated construction machinery for transporting and concreting concrete, which has features of short construction period, large spreading range, low labor strength and operation in confined space. It is widely used in high-rise construction, underground construction and large concrete construction.
Main advantage：
1, Φ230 conveying cylinder with Φ125 cylinder, the concrete requirements are low, can not only meet the needs of low pressure large displacement pumping, but also can achieve high pressure small displacement to replace the needs of the vehicle pump.
2, automatic engine speed control, speed changes with the displacement between 1200-1600, low displacement low speed, high displacement high speed, this speed range is the largest part of the engine torque, fuel economy and efficient.
3, the main valve group adopts double pump double circuit electronically controlled high and low pressure switching valve block, high and low pressure switching is completed with one key, without stopping the pump, and the oil circuit is simple, low failure rate, convenient maintenance.
4, the boom adopts load sensitive proportional multi-way valve, the action speed is stepless adjustment, fast and slow freely,excellent operation performance; Not only can realize the remote control, but also can realize the emergency manual operation.
5, stirring and leg by gear pump oil supply, with pressure relay can realize automatic reversal of stirring, prevent large stones stuck blade.
2, automatic engine speed control, speed changes with the displacement between 1200-1600, low displacement low speed, high displacement high speed, this speed range is the largest part of the engine torque, fuel economy and efficient.
3, the main valve group adopts double pump double circuit electronically controlled high and low pressure switching valve block, high and low pressure switching is completed with one key, without stopping the pump, and the oil circuit is simple, low failure rate, convenient maintenance.
4, the boom adopts load sensitive proportional multi-way valve, the action speed is stepless adjustment, fast and slow freely,excellent operation performance; Not only can realize the remote control, but also can realize the emergency manual operation.
5, stirring and leg by gear pump oil supply, with pressure relay can realize automatic reversal of stirring, prevent large stones stuck blade.
*
Boom pump trucks can be customized from 25m to 70m
1.What's the warranty time? From the date of shipment, 1 year or 1500 working hours, whichever comes first. 2.What's your payment
term?We accept T/T(30% down payment and balance before shipping) and L/Cmostly, But if you prefer other payment terms please
contact us for furtherinformation. 3. How long is your delivery time?Usually, it is 7-10 days if the goods are in stock. or it is
15-20 days if the goodsare not in stock, it is according to quantity. 4.Can we paint our label on your product?Of course! OEM and
ODM are acceptable, please send us your logo or brandwe'll paint for you..
term?We accept T/T(30% down payment and balance before shipping) and L/Cmostly, But if you prefer other payment terms please
contact us for furtherinformation. 3. How long is your delivery time?Usually, it is 7-10 days if the goods are in stock. or it is
15-20 days if the goodsare not in stock, it is according to quantity. 4.Can we paint our label on your product?Of course! OEM and
ODM are acceptable, please send us your logo or brandwe'll paint for you..
