- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YCHS
-
Model Number:
-
9G-1.4
-
Forward Speed:
-
540r/min
-
Product name:
-
Sickle Bar Mower
-
Cutting Width:
-
1400mm
-
Cutting height:
-
50-80mm
-
Weight:
-
120KG
-
Usage:
-
Plant Cuting
Quick Details
-
Grade:
-
DIY, Industrial
-
Voltage:
-
24V
-
Feature:
-
4-Stroke, Anti-slip, Folding Handle, Grass Box, Height Adjustable Handles, Mulch, Self Propelled, Single Cylinder, Steel Chasis, Steel Deck
-
Warranty:
-
1 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YCHS
-
Model Number:
-
9G-1.4
-
Forward Speed:
-
540r/min
-
Product name:
-
Sickle Bar Mower
-
Cutting Width:
-
1400mm
-
Cutting height:
-
50-80mm
-
Weight:
-
120KG
-
Usage:
-
Plant Cuting

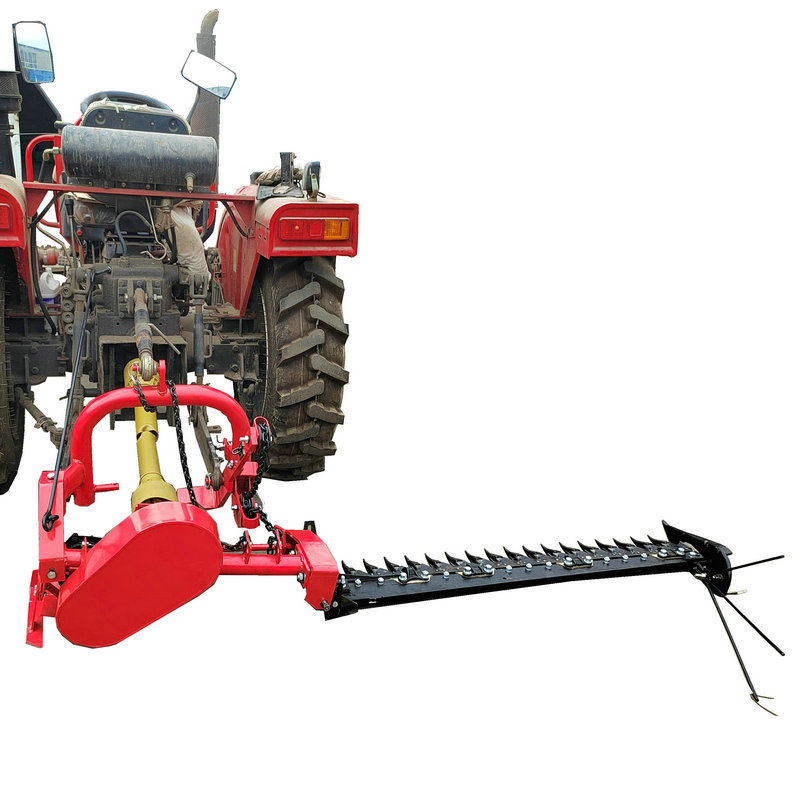

Model 9G series of s ickle bar mower takes advantage of the offset crank link mechanism to drive the cutter blade mow grass, and it is adequate for cutting the natural and planted grasses in ranch, mountain and hilly area. The structure of this machine is compact and the operation is easy and reliable and the residues is lower after cutting.
Advantages:
l This mower is a 3-point pitch sickle bar mower.
l Double knife cutter bars have the advantage of a dynamic balance achieved by having two exactly similar knives reciprocate in opposite directions thereby generating less vibration than single knife cutter bars.
|
Model |
unit |
9G-1.6 |
9G-1.8 |
9G-2.1 |
|
|
Working width |
mm |
1400 |
1600 |
1800 |
2100 |
|
Working depth |
mm |
50-80 |
|||
|
PTO Rotation speed |
r/min |
540 |
|||
|
PTO shaft spline |
|
6 spline |
|||
|
Total weight |
kg |
120 |
124 |
128 |
135 |
|
Matched power |
hp |
12-20 |
15-20 |
20-30 |
20-30 |
|
Linkage |
|
Three-point suspension I type |
|||
