Quick Details
-
Brand Name:
-
Huarui
-
Model Number:
-
A81/P81
-
Product name:
-
80Amp Trafimet Type A81 Plasma Cutting Torch
-
Gas:
-
Single
-
Standard length:
-
6m 12m(customized)
-
Rating:
-
80Amps
-
Duty cycle:
-
60%
-
Cutting capacity:
-
12mm Max(Most Materials)
-
Air flow:
-
105 litres per minute
-
Cable fitting:
-
1/4-3/8'' and Central
-
Certification:
-
ISO9001, CCC, CE, ROHS, TUV
-
Packing:
-
1set/box neutral packing, 5sets/Carton Box
Quick Details
-
Type:
-
CUTTING TORCH
-
Warranty:
-
Three months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Huarui
-
Model Number:
-
A81/P81
-
Product name:
-
80Amp Trafimet Type A81 Plasma Cutting Torch
-
Gas:
-
Single
-
Standard length:
-
6m 12m(customized)
-
Rating:
-
80Amps
-
Duty cycle:
-
60%
-
Cutting capacity:
-
12mm Max(Most Materials)
-
Air flow:
-
105 litres per minute
-
Cable fitting:
-
1/4-3/8'' and Central
-
Certification:
-
ISO9001, CCC, CE, ROHS, TUV
-
Packing:
-
1set/box neutral packing, 5sets/Carton Box
Huarui MIG Welding Torch Advantages
■ Huarui MIG Torch, with novel appearance, is lightweight and comfortable. It is ergonomically designed with good heat resistance and flame retardant characteristics.
■ Huarui welding cable is produced based on international standard with accurate square meters.
■ Huarui spare parts are manufactured by advanced imported equipment ---Lean Production
■ Huarui universal ball joint allows welder flexible operation during working.
■Huarui’s each air cooled torch must pass the following tests: Insulation resistance test, High voltage test, Air flow test, Gas seal test.
■ Huarui’s each water cooled torch must pass the following tests: Insulation resistance test, High voltage test, Water flow test, Water seal test.

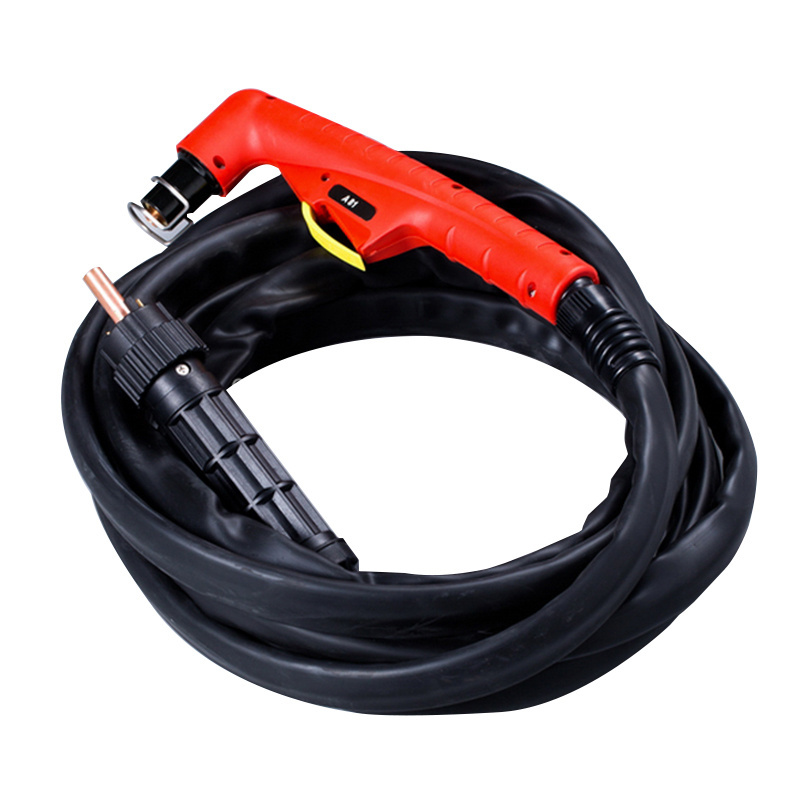

High Quality Trafimet Type A81P81 Plasma Cutting Torch
■ Gas: Single Air Flow: 105 litres per minute
■ Rating: 80 Amp @60% Duty Cycle
■ Cutting Capacity: 12mm Max( most materials)
■Rear Connector: 1/8''Bsp Connection, Central Connection, G3/8'' Connection
|
1. PF0119
|
Torch Head -Hand
|
|
2. PF0120
|
Torch Head - Machine
|
|
3. EA0125
|
O-Ring - Torch Head
|
|
4. FH560
|
Diffuser
|
|
FH561
|
Extended Diffuser
|
|
5. PR0109
|
Electrode Harfnium -Long Life
|
|
PR0107
|
Electrode Harfnium
|
|
6. PR0108
|
Extended Electrode,harfnium
|
|
PR0115
|
Extended Electrode - Long Life,harfnium
|
|
7. PE0107
|
Swirl Ring
|
|
8. PD0105-10
|
Tip 1.0mm - 50 Amp
|
|
PD0105-11
|
Tip 1.1mm - 70 Amp
|
|
PD0105-12
|
Tip 1.2mm - 80 Amp
|
|
9. PD0106-10
|
Extended Tip 1.0mm - 50 Amp
|
|
PD0106-12
|
Extended Tip 1.2mm - 80 Amp
|
|
10. PC0115
|
Nozzle Retaining Cap
|
Changzhou Hu
aru
i W
elding
& Cut
ting Co., LTD
We are located in Xiazhuang, Xueyan Industrial Park, Changzhou city with convenient transportation access, cover an area of 42,000 square meters and there are 200staffs. Since the establishment in 1985, HUARUI has kept focusing on heavy industry to make welding & cutting solutions and has become one of the leading manufacturers in welding & cutting by modern manufacturing equipment, special technology, and strict testing systems. The products have gained ISO9001, CE certifications. Our company is specialized in MIG/TIG/Plasma welding torches and spare parts.
The annual output of welding torches exceeds 295,000 pieces.
The output of contact tips exceeds 18 million pieces.
The products are mainly exported to Europe, America, Africa and Southeast Asia and etc. Widely used in ship-building, railway, aviation and other related welding industry. Our torches can fit different kinds of foreign equipment.
We have cooperated with many famous companies and gained a good reputation from customers on the basis of good qualityand service.
We welcome the customers all over the world to visit our company for business.
Q1: Can I get a free samples to check the quality?
A:Sure,we can supply the free sample for welding spare parts, but you need to pay the air cost.
Q2: Can I put my logo on the boxes/cartons?
A: Yes, this can be made according to your requirements.
Q3: How can you guarantee your products quality ?
A: Huarui’s each torch must pass the following tests before packing: Insulation resistance test, High voltage test, Air/Water flow test, Air/Water seal test.
Q4: Can I pay by Alibaba Trade Assurance?
A: Yes, of cause, this is strongly recommended.
