Quick Details
-
Warranty:
-
25 Years
-
Brand Name:
-
JXSOL
-
Place of Origin:
-
Hebei, China
-
Panel Dimensions:
-
1908*1134*35mm
-

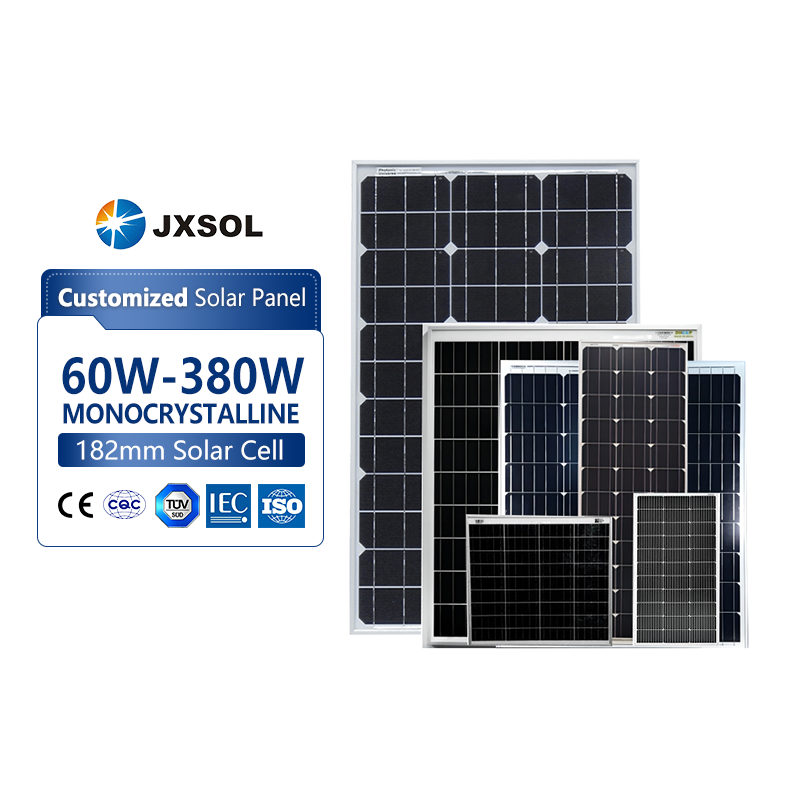

Product name:
-
Sola Panel
-
Solar cell:
-
Monocrystalline Silicon Cells
-
Frame:
-
Anodized Aluminium Alloy
-
Application:
-
Solar Power System
-
Junction Box:
-
IP68
-
Weight:
-
28.0kgs
-
Cable:
-
4.0mm2
-
OEM Order:
-
Acceptable
-
Glass:
-
3.2mm Tempered Low Iron
-
Connector:
-
MC4 Compatible Connector
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
21.30%
-
Warranty:
-
25 Years
-
Brand Name:
-
JXSOL
-
Place of Origin:
-
Hebei, China
-
Panel Dimensions:
-
1908*1134*35mm
-
Product name:
-
Sola Panel
-
Solar cell:
-
Monocrystalline Silicon Cells
-
Frame:
-
Anodized Aluminium Alloy
-
Application:
-
Solar Power System
-
Junction Box:
-
IP68
-
Weight:
-
28.0kgs
-
Cable:
-
4.0mm2
-
OEM Order:
-
Acceptable
-
Glass:
-
3.2mm Tempered Low Iron
-
Connector:
-
MC4 Compatible Connector
|
Module Type
|
Max.Power Voltage Vmp(V)
|
Max.Power Current Imp(A)
|
Open Circuit Voltage Voc(V)
|
Short Circuit Current Isc(A)
|
Cell Type
|
Module Dimension
|
|
JX182-26M-60W
|
14.5
|
4.83
|
17.55
|
5.26
|
13*2
|
650*400*25
|
|
JX182-26M-70W
|
14.56
|
4.81
|
17.62
|
5.24
|
13*2
|
650*400*25
|
|
JX182-32M-80W
|
17.92
|
4.46
|
21.68
|
4.87
|
8*4
|
540*760*25
|
|
JX182-36M-90W
|
20.16
|
4.46
|
24.39
|
4.87
|
9*4
|
600*760*25
|
|
JX182-40M-100W
|
22.4
|
4.46
|
27.10
|
4.87
|
10*4
|
660*760*25
|
|
JX182-44M-110W
|
24.64
|
4.46
|
29.81
|
4.87
|
11*4
|
720*760*25
|
|
JX182-40M-150W
|
22.4
|
6.70
|
27.10
|
7.30
|
10*4
|
970*760*25
|
|
JX182-48M-180W
|
26.88
|
6.70
|
32.52
|
7.30
|
12*4
|
1150*760*25
|
|
JX182-33M-180W
|
18048
|
9.74
|
22.36
|
10.62
|
11*3
|
1480*680*30
|
|
JX182-52M-200W
|
23.52
|
8.50
|
28.46
|
9.27
|
13*4
|
1240*760*25
|
|
JX182-64M-250W
|
35.84
|
6.98
|
43.37
|
7.60
|
16*4
|
1520*760*30
|
|
JX182-72M-280W
|
40.32
|
6.94
|
48.79
|
7.57
|
18*4
|
1700*760*30
|
|
JX182-78M-300W
|
43.68
|
6.87
|
52.85
|
7.49
|
13*6
|
1240*1134*30
|
|
JX182-60M-320W
|
33.6
|
9.52
|
40.66
|
10.38
|
12*5
|
1640*992*30
|
|
JX182-70M-380W
|
39.2
|
9.69
|
47.43
|
10.57
|
14*5
|
1956*992*30
|
Tangshan Jingxin Science and Technology Company Limited established in 2012. Our factory is located in Kaiping,Tangshan city, HeBei Province, which is near from Tianjin port,convenient to transport. As a professional manufacturer and exporter, our company has 12+ years experience in manufacturing and exporting pv modules, solar energy system etc.We have professional production and sales teams,provide one-stop service. At the same time we also sell Longi,Jinko,Trina brand solar panel in Eu warehouse.
