Quick Details
-
Warranty:
-
Other
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HBN
-
Model Number:
-
DCMOTOR
-
Torque:
-
1.6-70kg.cm
-
Product Name:
-
Electric Motor
-
Application:
-
Automatic Product
-
Motor type:
-
BLDC Brushless Motor
-
Keywords:
-
Brushless Electric Motor
-
Voltage:
-
48V
-
Rated Voltage:
-
12v24vdc
-
Power:
-
0.5W Max (Can Customize)
-
Typical Applications:
-
Automotive Product
-
Certification:
-
CCC
-
Color:
-
Black
Quick Details
-
Speed(RPM):
-
7-470r/min -No load
-
Continuous Current(A):
-
0.9-1.2a
-
Efficiency:
-
IE 2
-
Warranty:
-
Other
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HBN
-
Model Number:
-
DCMOTOR
-
Torque:
-
1.6-70kg.cm
-
Product Name:
-
Electric Motor
-
Application:
-
Automatic Product
-
Motor type:
-
BLDC Brushless Motor
-
Keywords:
-
Brushless Electric Motor
-
Voltage:
-
48V
-
Rated Voltage:
-
12v24vdc
-
Power:
-
0.5W Max (Can Customize)
-
Typical Applications:
-
Automotive Product
-
Certification:
-
CCC
-
Color:
-
Black
Products Description

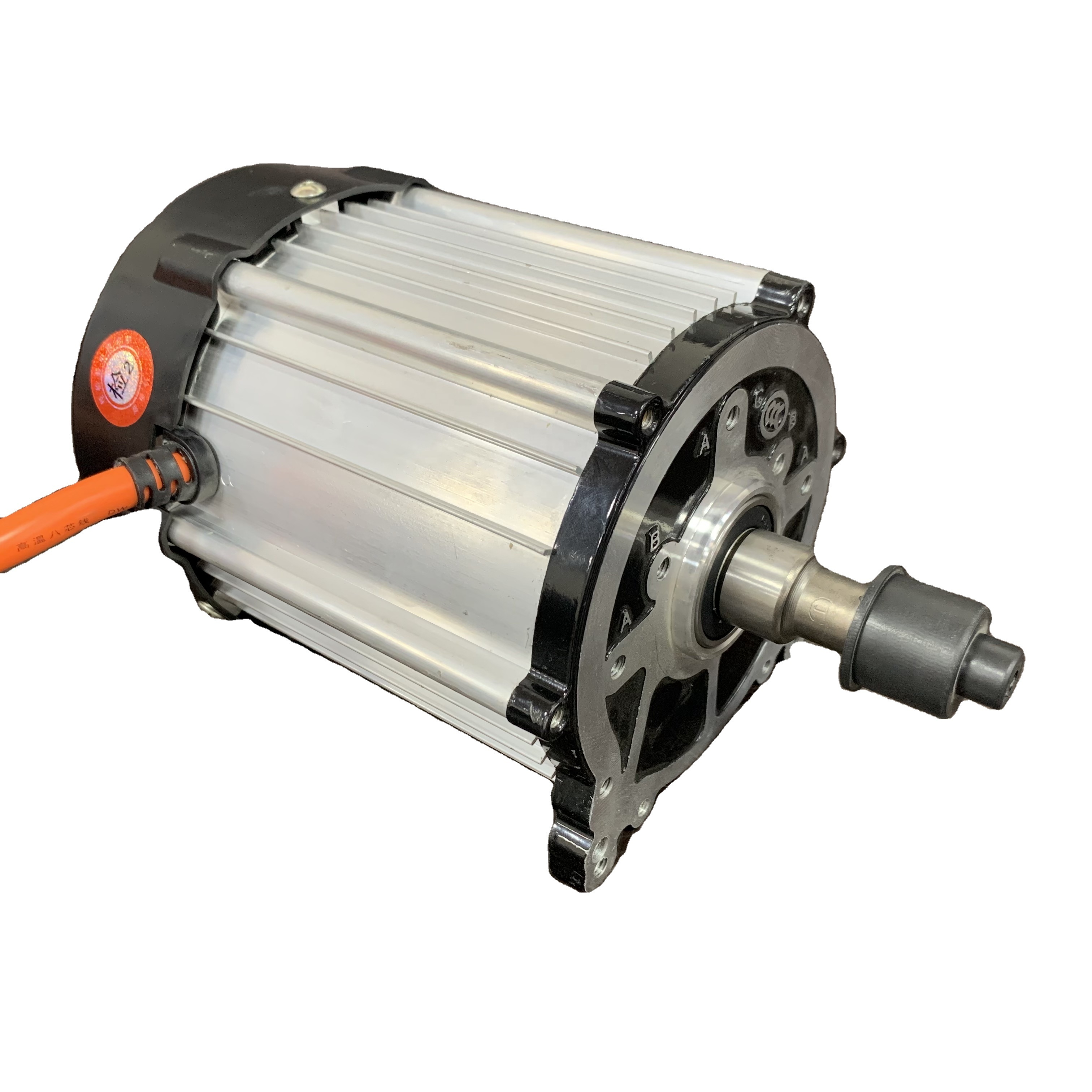

Various types of multifunctional motors
● Good external characteristics can output large torque at low speed, so that it can provide large starting torque
● High efficiency and strong overload capacity make it excellent in dragging systems
● Wide speed range, can run at full power at any speed
● Small size and high power density
● The braking effect is good because its rotor is a permanent magnet material, the motor can enter the generator state when braking
● There is no mechanical commutator, and it adopts a fully enclosed structure, which can prevent dust from entering the inside of the motor, and has high reliability
● Simpler than the drive control of the asynchronous motor
Product Paramenters
We can do anything from 300w to 3000w. We can communicate if necessary.
|
Rated power (W)
|
500
|
650
|
800
|
1000
|
1200
|
|
Rated voltage（V）
|
48/60
|
48/60
|
48/60
|
48/60
|
48/60
|
|
Rated current（A）
|
14/11
|
17/14
|
21/16
|
25/21
|
31/25
|
|
No-load speed（RPM）
|
3100-3500
|
3100-3500
|
3100-3500
|
3100-3500
|
3100-3500
|
|
Peak torque （NM）
|
12.5
|
15
|
18
|
22
|
28
|
|
Peak efficiency
|
≥86%
|
≥88%
|
≥90%
|
≥91%
|
≥92%
|
|
Protection level
|
IP56
|
IP56
|
IP56
|
IP56
|
IP56
|
|
Insulation level
|
F
|
F
|
F
|
F
|
F
|
