Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WKS
-
Voltage:
-
380V/220V/upon
-
Dimension(L*W*H):
-
600*400*1000 mm
-
Weight (KG):
-
220 KG
-
Marketing Type:
-
Available
-
Product name:
-
coarse crusher
-
Name:
-
primary coarse crusher grinder
-
Function:
-
Make Dry Powder
-
Machine Type:
-
Grinder Mill
-
Usage:
-
Powder Milling
-
Keyword:
-
Pulverizer Machine Herbs Spice
-
Raw material:
-
304/316SS
-
Suitable for:
-
Chemical Powder Grinder Mill
-
Feature:
-
High Efficiency Grain Grinder
-
After-sales Service Provided:
-
1 Year
Quick Details
-
Output (kg/h):
-
30 - 300 kg/h
-
Feeding Size (mm):
-
0 - 200 mm
-
Power (kW):
-
3
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WKS
-
Voltage:
-
380V/220V/upon
-
Dimension(L*W*H):
-
600*400*1000 mm
-
Weight (KG):
-
220 KG
-
Marketing Type:
-
Available
-
Product name:
-
coarse crusher
-
Name:
-
primary coarse crusher grinder
-
Function:
-
Make Dry Powder
-
Machine Type:
-
Grinder Mill
-
Usage:
-
Powder Milling
-
Keyword:
-
Pulverizer Machine Herbs Spice
-
Raw material:
-
304/316SS
-
Suitable for:
-
Chemical Powder Grinder Mill
-
Feature:
-
High Efficiency Grain Grinder
-
After-sales Service Provided:
-
1 Year
Products Description

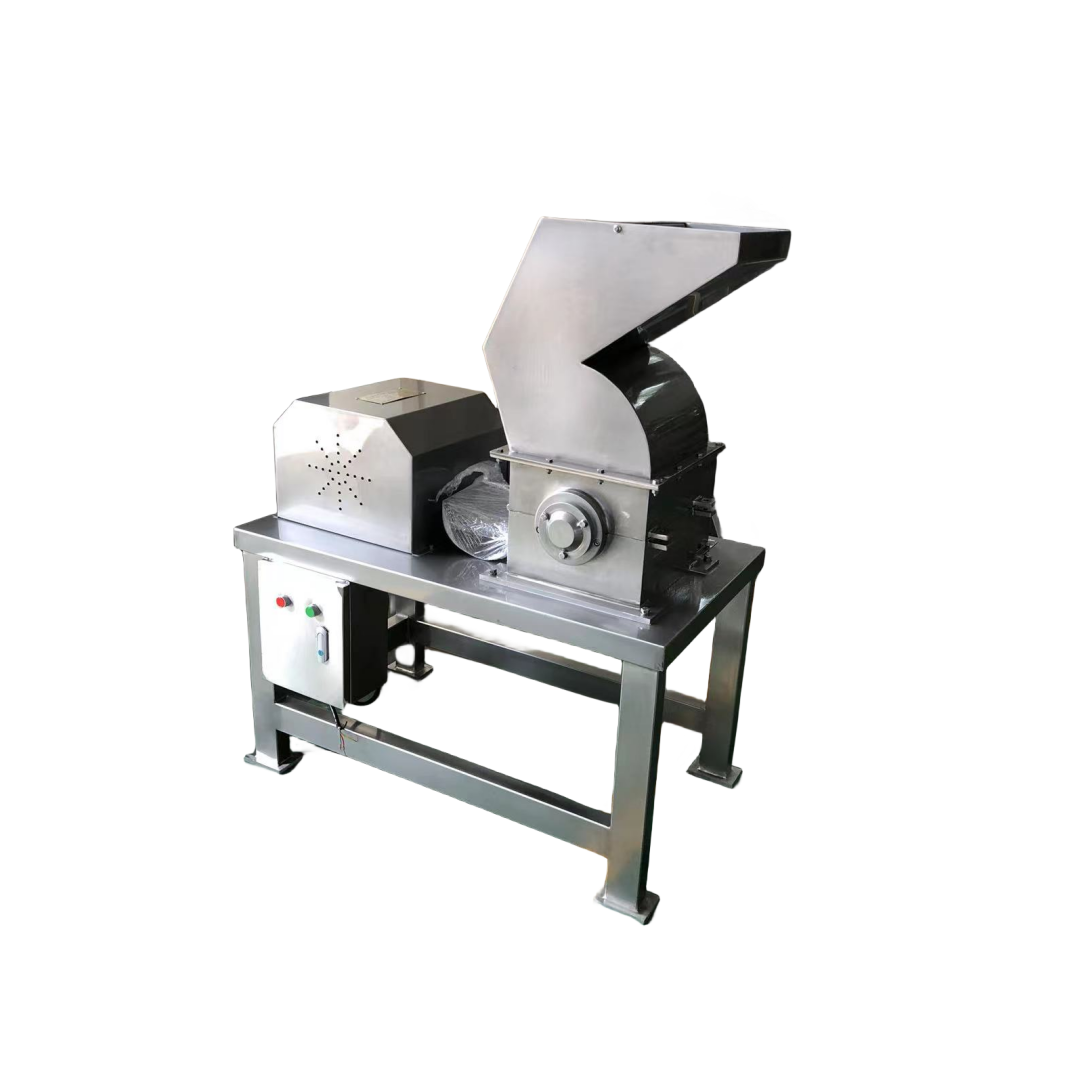

Coarse crusher without bracket
Coarse crusher with bracke
t
(customized according to customer requirements)
Working principle
Materials go from the hopper into the crushing chamber and get crushed by impact and shear of rotating knife and fixed knife, under the function of centrifugal knife, the material flows automatically to the exit.
Application
This machine is suitable for the chemical industry, metallurgy, food and other industries, can process material which is hard and difficult to crush, can be a pre-equipment of micro crushing process, it is not restricted by material viscosity, hardness, softness and fiber, it has a better crushing effect on any material , it is a universal pulverizer.
Parameters
|
Model
|
Capacity (KG/H)
|
Spindle speed (r/min)
|
Feed size(mm)
|
Motor(KW)
|
Dimension(mm)
|
Fineness(mm)
|
Weight(kg)
|
|
CSJ-100
|
15-100
|
500
|
<100
|
2.2
|
550*380*1000
|
0.5-30
|
170
|
|
CSJ-200
|
30-300
|
500
|
<200
|
3
|
600*400*1000
|
0.5-30
|
220
|
|
CSJ-300
|
50-400
|
500
|
<300
|
4
|
700*500*1100
|
0.5-30
|
300
|
|
CSJ-400
|
100-800
|
500
|
<400
|
5.5
|
800*780*1300
|
0.5-30
|
420
|
|
CSJ-500
|
150-1000
|
500
|
<500
|
7.5
|
850*840*1450
|
0.5-30
|
530
|
|
CSJ-600
|
200-1500
|
500
|
<600
|
11
|
920*900*1600
|
0.5-30
|
650
|
|
CSJ-800
|
300-2000
|
500
|
<800
|
15
|
1150*1050*1600
|
0.5-30
|
880
|
Details Images
Coarse crusher without dust removal
Coarse crusher with dust removal
Coarse
crusher w
ith stairs
Screen mesh o
f diffe
rent fineness
Application
