Quick Details
-
Weight (KG):
-
2000 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
xingle
-
Dimension(L*W*H):
-
2670*3000*3050mm
-
Power (kW):
-
5.5 kW
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Mixing Tank
-
Function:
-
Mixing Liquid Materials
-
Machine Type:
-
Vacuum Mixer Mixing Machine
-
After-sales Service Provided:
-
Online Support
-
Heating method:
-
Electricity Heating
-
Capacity:
-
1000L-1200L
-
Feature:
-
Efficient Mixing Equipment
-
Certification:
-
GMP
Quick Details
-
Barrel Volume (L):
-
1200
-
Max. Loading Volume (L):
-
1000 L
-
Range of Spindle Speed(r.p.m):
-
0 - 63 r.p.m
-
Weight (KG):
-
2000 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
xingle
-
Dimension(L*W*H):
-
2670*3000*3050mm
-
Power (kW):
-
5.5 kW
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Mixing Tank
-
Function:
-
Mixing Liquid Materials
-
Machine Type:
-
Vacuum Mixer Mixing Machine
-
After-sales Service Provided:
-
Online Support
-
Heating method:
-
Electricity Heating
-
Capacity:
-
1000L-1200L
-
Feature:
-
Efficient Mixing Equipment
-
Certification:
-
GMP
Products Description

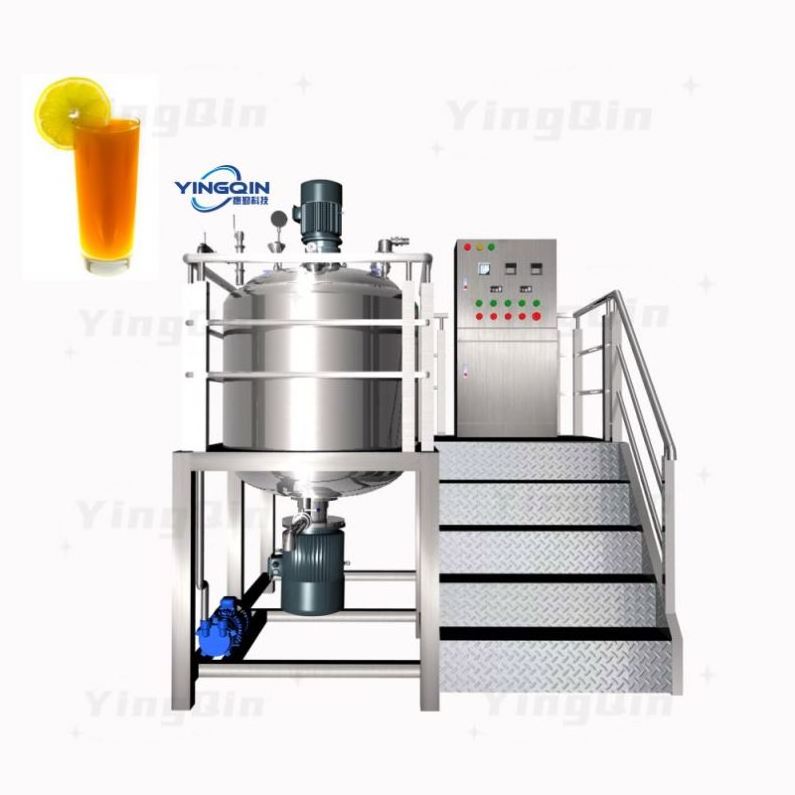

Stainless Steel Mixing Tank
|
Pot body
|
Working volume: 1000L; Full volume: 1200L
|
|
Voltage
|
380V/50HZ
|
|
Inner pot
|
Cylinder: material SUS316L, wall thickness: 4mm
|
|
Stirring motor
|
Stirring motor power: 5.5KW
Speed: 0-63 rpm |
|
Heating method
|
Electric heating, water circulation cooling
|
|
Remark
|
Volume: 50L, 100L, 200L, 300L, 500L, 1000L~5000L can be customized.
|
|
Structure
|
1.Three-layer stainless steel, can use heating tank, can be vacuumed, flange sealing
2.Upper one-way stirring with scraping wall,lower-loaded high-speed shear homogenization
3.button control
4.Delta double inverter 5 electric heating
|
This machine is an electric heating mixer for mixing and stirring of different materials, mixing and dissolving of slime, etc.
Bottom magnetic agitator with propeller impeller, speed from 0-63 rpm
1. Heat way:Materials are heated and stirred by electricity and heat .
2.Automatic electric heating is used for stirring in ring configuration, and the operation of the machine is controlled by touch screen. By doing so, automation and safety are realized.
3.The unique mixing technology makes the agitator in good contact with the bottom of the pot and the wall of the pot, mixing fully and evenly, so that the materials can be stirred effectively without sticking to the pot.
4.Made of stainless steel, effective mixing material, low noise, easy to operate.
5. The automatic cylindrical shape adopts circuit control, a small and mini machine device.
2.Automatic electric heating is used for stirring in ring configuration, and the operation of the machine is controlled by touch screen. By doing so, automation and safety are realized.
3.The unique mixing technology makes the agitator in good contact with the bottom of the pot and the wall of the pot, mixing fully and evenly, so that the materials can be stirred effectively without sticking to the pot.
4.Made of stainless steel, effective mixing material, low noise, easy to operate.
5. The automatic cylindrical shape adopts circuit control, a small and mini machine device.
6.
This machine is equipped with a mirror light, which can provide brightness in the pot. And the sight glass port, you can observe the internal materials.
7.V
acuum function:
Vacuum pressure gauge Know the pressure inside the pot, start and stop automatically.Vacuum port for
Defoamering.
Details Images
Application
Stainless Steel Mixing Tank
could be used in food, beverage industry, cosmetics,wine and alcohol etc industries.
1.
In the food products:it can be used to stir juice, alcohol, chocolate sauce, and other liquid beverages and sauces
2.
In the cleaning products, it can be used to stir some cleaning liquids such as toothpaste, body wash, laundry detergent, dish washing liquid, etc.
3.
In cosmetic products, it can be used in facial cleanser, lotion, essence oil, etc.
