Quick Details
-
Place of Origin:
-
China
-
Pixel Pitch:
-
Other, Other, 5mm
-
HS Code:
-
8531200000
-
Display Function:
-
Graphics
-
name:
-

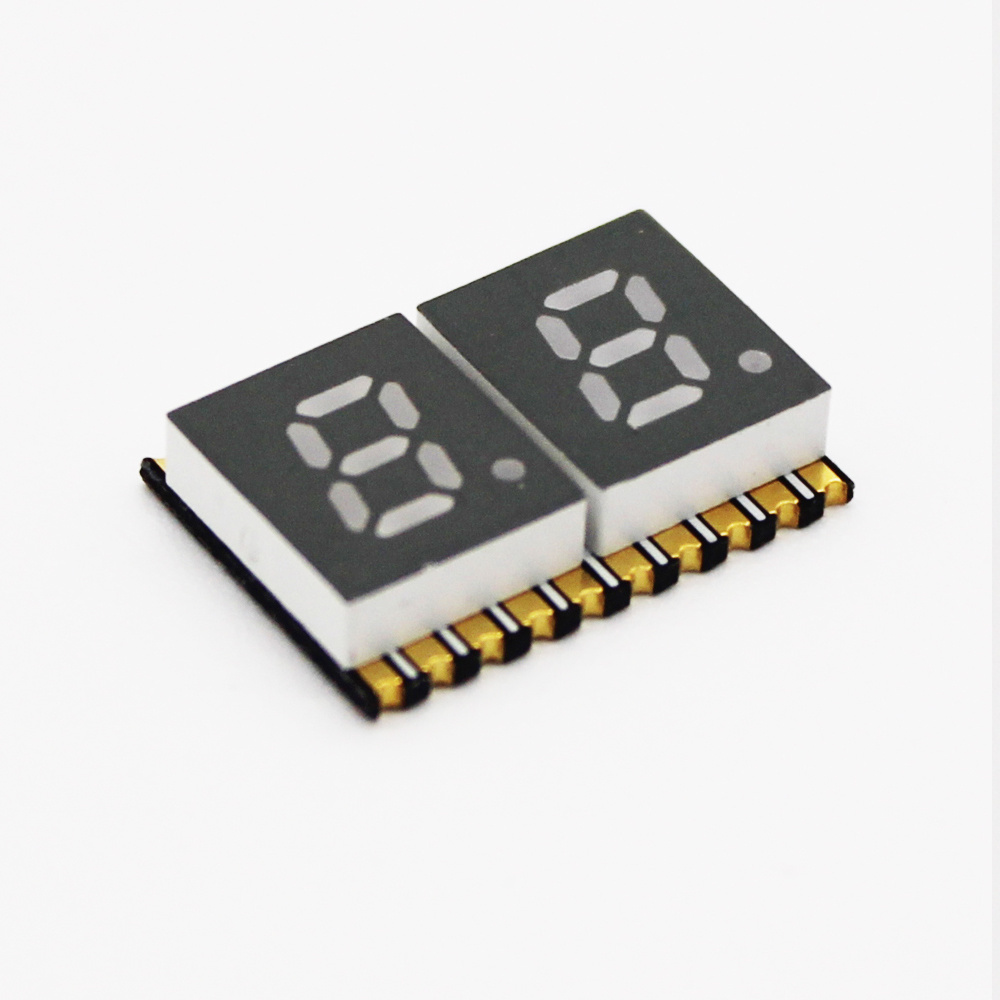

0.2" 7 segment smd led display factory
-
digit height:
-
0.20 inch
-
segment color:
-
white diffused
-
surface color:
-
grey surface
-
OEM:
-
Yes
-
Polarity:
-
Common Anode or Common Cathode
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LED
-
Panel Size:
-
14.1*10*3mm, 14.1*10*3mm
-
Place of Origin:
-
China
-
Pixel Pitch:
-
Other, Other, 5mm
-
HS Code:
-
8531200000
-
Display Function:
-
Graphics
-
name:
-
0.2" 7 segment smd led display factory
-
digit height:
-
0.20 inch
-
segment color:
-
white diffused
-
surface color:
-
grey surface
-
OEM:
-
Yes
-
Polarity:
-
Common Anode or Common Cathode
Product Description
Outer Dimension & INTERNAL CIRCUIT DIAGRA
Specification
*Ultra segment intensity
*Wide viewing angle
*Range of colors
*Gray or black face White segment
*RoHS compliant
*0.2 inch 7 segment smd
*Wide viewing angle
*Range of colors
*Gray or black face White segment
*RoHS compliant
*0.2 inch 7 segment smd
Electro/Optical Characteristics If=20mA Ta=25 C
|
Part Number
|
|
EMITTED COLOR
|
Peak
Wavelength (mn) |
Vf(V)
|
|
Iv(mcd)
|
|
|||
|
Common Cathode
|
Common Anode
|
|
|
Type
|
Max
|
Min
|
Typ
|
|||
|
JSS-2020AUR
|
JSS-2020BUR
|
AlGaInP/GaAs Super red
|
640
|
2.0
|
2.5
|
10
|
20
|
|||
|
JSS-2020ASR
|
JSS-2020BSR
|
AlGaInP/GaAs Ultra red
|
625
|
2.0
|
2.5
|
40
|
80
|
|||
|
JSS-2020AUA
|
JSS-2020BUA
|
AlGaInP/GaAs Ultra Amber
|
605
|
2.0
|
2.5
|
40
|
60
|
|||
|
JSS-2020AUY
|
JSS-2020BUY
|
AlGaInP/GaAs Ultra Yellow
|
590
|
2.0
|
2.5
|
40
|
60
|
|||
|
JSS-2020AUG
|
JSS-2020BUG
|
AlGaInP/GaAs Yellow Green
|
574
|
2.0
|
2.5
|
10
|
15
|
|||
|
JSS-2020APG
|
JSS-2020BPG
|
InGaN/Sic Pure Green
|
525
|
3.2
|
3.8
|
150
|
200
|
|||
|
JSS-2020AUB
|
JSS-2020BUB
|
InGaN/Sic Ultra Blue
|
470
|
3.2
|
3.8
|
40
|
50
|
|||
|
JSS-2020AUW
|
JSS-2020BUW
|
InGaN/Sic Ultra White
|
------
|
3.2
|
3.8
|
200
|
400
|
|||
Related Product
1.We can supply all kinds of SMD 7 segment led display from 0.20inch to 0.80inch
Digit number:1,2,3 and 4 digits
2.We can offer both 7 segment and 14 segment SMD led display
3.Avaliable color:red,yellow,green,blue,white etc
4.Face color:Grey
5.Lens color:white diffused
Digit number:1,2,3 and 4 digits
2.We can offer both 7 segment and 14 segment SMD led display
3.Avaliable color:red,yellow,green,blue,white etc
4.Face color:Grey
5.Lens color:white diffused
