Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DONGFU WIRE MESH
-
Model Number:
-
DF-WWM
-
Wire Gauge:
-
6 to 24 gauge, 6 - 24 gauge, or other custom size.
-
Product Name:
-
Welded Wire Mesh Panels, Rolls
-
Surface Treatment:
-
Untreated, galvanized (electro or galvanized), PVC coated, etc.
-
Mesh Size:
-
1/4 inch - 2 inch, or other custom size.
-
Process:
-
Welded after galvanized or galvanized after welding.
-
Welded Mesh Roll Length:
-
5 m, 10 m, 30 m or other custom size.
-
Welded Mesh Roll Width:
-
0.5 m - 1.8 m or other custom size.
-
Welded Mesh Panel Size:
-
1800 mm x 3000 mm (or more).
Quick Details
-
Material:
-
low carbon steel wire, stainless steel wire
-
Type:
-
Construction Wire Mesh
-
Application:
-
Fence Mesh
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DONGFU WIRE MESH
-
Model Number:
-
DF-WWM
-
Wire Gauge:
-
6 to 24 gauge, 6 - 24 gauge, or other custom size.
-
Product Name:
-
Welded Wire Mesh Panels, Rolls
-
Surface Treatment:
-
Untreated, galvanized (electro or galvanized), PVC coated, etc.
-
Mesh Size:
-
1/4 inch - 2 inch, or other custom size.
-
Process:
-
Welded after galvanized or galvanized after welding.
-
Welded Mesh Roll Length:
-
5 m, 10 m, 30 m or other custom size.
-
Welded Mesh Roll Width:
-
0.5 m - 1.8 m or other custom size.
-
Welded Mesh Panel Size:
-
1800 mm x 3000 mm (or more).

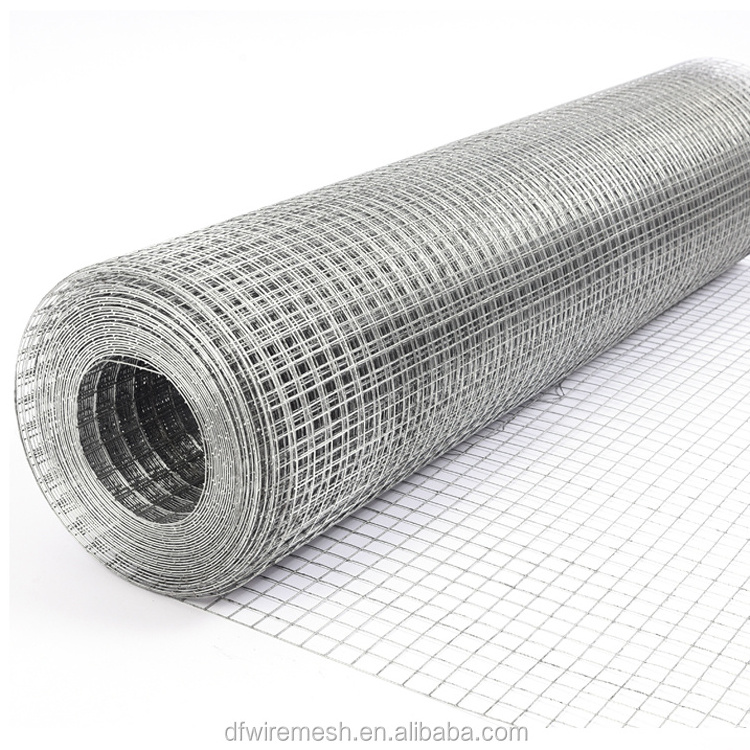

Welded Wire Mesh Panels and Welded Wire Mesh Rolls
(Non-galvanized, Hot-dipped Galvanized, Electro-galvanized, and PVC Coated.)
Welded wire mesh can be divided into 2 types according to different flexibility: welded mesh panel and welded mesh roll. Panel common size is 1800 mm × 3000 mm, we also accept other requirements. Welded mesh roll has better flexibility.
Welded wire mesh is made of low carbon steel wire, which has galvanized and PVC coated surfaces, which have great anti-corrosion, anti-rust, and weather resistance. Firm structure and high tensile strength are also the features of welded wire mesh, which makes it be widely used to make gabion, plaster walls, animal cages, and plant trellis.
| Tolerances on Mesh Dimensions | |
| Mesh Dimensions(mm) | Tolerance(mm) |
| < 50 | ±2.0 |
| ≥50 to < 200 | ±3.0 |
| Mesh Size and Wire Diameter | ||||
| Mesh Size | Wire Diameter Before & After PVC Coat | |||
| mm | inch | BWG No. | Before Coated (mm) | After Coated (mm) |
| 6.4 | 1/4 | 24–22 | 0.56–0.71 | 0.90–1.05 |
| 9.5 | 3/8 | 23–19 | 0.64–1.07 | 1.00–1.52 |
| 12.7 | 1/2 | 22–16 | 0.71–1.65 | 1.10–2.20 |
| 15.9 | 5/8 | 21–16 | 0.81–1.65 | 1.22–2.30 |
| 19.1 | 3/4 | 21–16 | 0.81–1.65 | 1.24–2.40 |
| 25.4 × 12.7 | 1 × 1/2 | 21–16 | 0.81–1.65 | 1.24–2.42 |
| 25.4 | 1 | 21–14 | 0.81–2.11 | 1.28–2.90 |
| 38.1 | 1 1/2 | 19–14 | 1.07–2.11 | 1.57–2.92 |
| 25.4 × 50.8 | 1 × 2 | 17–14 | 1.47–2.11 | 2.00–2.95 |
| 50.8 | 2 | 16–12 | 1.65–2.77 |
2.20–3.61 |
| Welded Wire Mesh Roll Size | |
| Mesh Inch | Width × Length |
| 1/2 | 3 ft. × 50 ft. |
| 1/2 | 4 ft. × 50 ft |
| 1/2 | 5 ft. × 50 ft. |
| 1/2 | 6 ft. × 50 ft. |
| 3/4 | 3 ft. × 50 ft |
| 3/4 | 4 ft. × 50 ft. |
| 3/4 | 5 ft. × 50 ft |
| 3/4 | 6 ft. × 50 ft. |
| 1 | 3 ft. × 50 ft. |
| 1 | 4 ft. × 50 ft. |
| 1 | 5 ft. × 50 ft. |
| 1 | 6 ft. × 50 ft. |
| welded Wire Mesh Panels Common Specification | |||
| Mesh | Wire Diameter | ||
| Expressed in Inches | Millimeters | Diameter | Millimeters |
| 1" × 1" | 25 mm × 25 mm | 11 G – 14 G | 2 mm – 3 mm |
| 2" × 1" | 50 mm × 25 mm | 8 G – 14 G | 2 mm – 4 mm |
| 2" × 2" | 50 mm × 50 mm | 8 G – 14 G | 2 mm – 4 mm |
| 3" × 2" | 75 mm × 50 mm | 6 G – 14 G | 2 mm – 5 mm |
| 3" × 3" | 75 mm × 75 mm | 6 G – 14 G | 2 mm – 5 mm |
| 4" × 2" | 100 mm × 50 mm | 4 G – 14 G | 2 mm – 6 mm |
| 4" × 4" | 100 mm × 100 mm | 4 G – 14 G | 2 mm – 6 mm |
| 5" × 5" | 125 mm × 125 mm | 4 G – 14 G | 2 mm – 6 mm |
| 6" × 6" | 150 mm × 150 mm | 4 G – 14 G | 2 mm – 6 mm |
| Note: Special specifications can be customized. | |||
