1. It has the advantages of low power consumption, high-efficiency, reasonable price, stable quality and the short-term recouping
of capital outlay.
2. The machine adopts full computer control, and the machine head is small.
3. The machine can make pattern directly on the machine, easy to operate ,Beginners are easy to learn.
4. With double head machine, the productivity is double of that of single head machine, also can be used for wide fabric.
5. Semi jacquard machine knitting collars
photo:
- Product Details
- {{item.text}}
Quick Details
-
Knitting Method:
-
Double
-
Computerized:
-
Yes
-
Gauge:
-
12 GG, 14 GG, 16 GG, 18GG
-
Knitting width:
-
42-80 inch
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NINGBO HAOYUE
-
Power:
-
550 W
-
Weight:
-
600 KG
-
Dimension(L*W*H):
-
2150*900*1700mm
-
Product Name:
-
collar knitting machine
-
Knitting function:
-
semi jacquard
-
gauge:
-
12g,14g,16g,18g
-
bed width:
-
42inch,52inch,60inch,68inch, 80inch
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Type:
-
Flat
-
Production Capacity:
-
max:1.6m/s; 600-800pcs/day
-
Knitting Style:
-
Weft
-
Knitting Method:
-
Double
-
Computerized:
-
Yes
-
Gauge:
-
12 GG, 14 GG, 16 GG, 18GG
-
Knitting width:
-
42-80 inch
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NINGBO HAOYUE
-
Power:
-
550 W
-
Weight:
-
600 KG
-
Dimension(L*W*H):
-
2150*900*1700mm
-
Product Name:
-
collar knitting machine
-
Knitting function:
-
semi jacquard
-
gauge:
-
12g,14g,16g,18g
-
bed width:
-
42inch,52inch,60inch,68inch, 80inch
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Free spare parts
Products Description

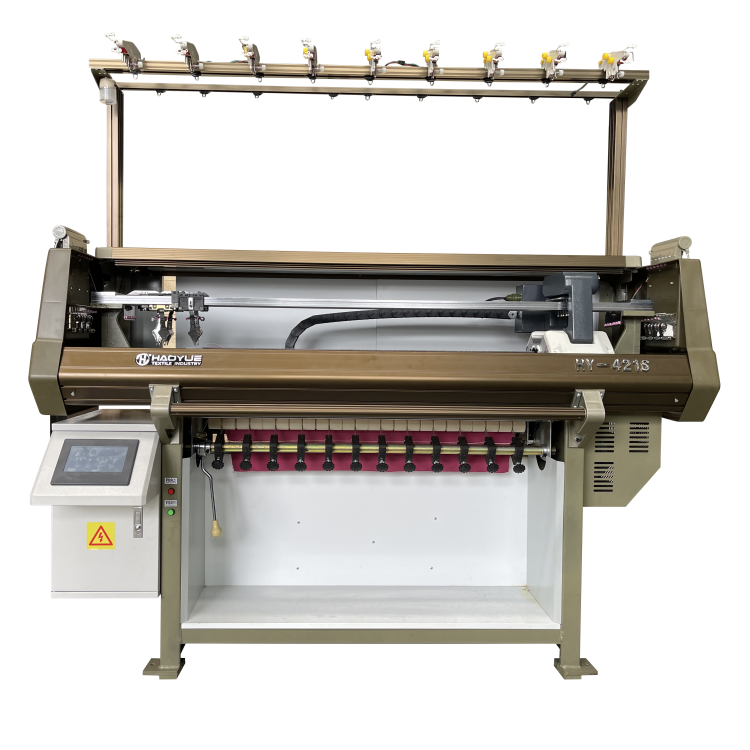

NINGBO HAOYUE PROFESSIONAL SEMI JACQUARD COLLAR KNITTING MACHINE
weater.
Specially designed for knitting collar and rib; through the extreme requirements in straightness, flatness and precision of machine parts such as bed- base, guide rail, needle-bed, cam-board and cams. We solved these problems that fabric lines grain is not clear, two edges of collar are different and flatness is not enough.This series with milling type needle bed. This series adopts digital technology, which can realize the functions with Knitting, Semi jacquard,A/B jack tuck and full tuck; capable knitting square semi jacquard and line etc.This series is suitable for knitting collar and clothing accessories. Machine control system is developed by ourselves . we can make designs on machine screen directly.
DOUBLE CARRIAGES SEMI JACQUARD COLLAR KNITTING MACHINE
Single carriage semi jacquard
Single carriage plain design
NINGBO HAOYUE
Semi jacquard collar knitting machine:
DAHAO CONTROL SYSTEM
The machine system can be customized according to your requirements.
DAHAO
CONTROL SYSTEM
The machine system can be customized according to your requirements.
HAOYUE CONTROL SYSTEM
The machine system can be customized according to your requirements.
SINGLE CARRIAGE
Linear velocity of the head can reach 1.6m/s. Each system is equipped with five functions as rib transfer, weaving, hangging head, non-weave and pin. In addition, it is secured by short-circuited electromagnetism, motor overcurrent. Locked-Rotor, etc...
NEEDLE BED
Insert part fits with the needle are made of imported steel through fine blanking and grinding, which reduces the wear and tear of the stitches, decreases the resistance of the stitches, and effectively improves the knitting efficiency.
DOUBLE CARRIAGE
Linear velocity of the head can reach 1.6m/s. Each system is equipped with five functions as rib transfer, weaving, hangging head, non-weave and pin.
Can work separately or in combination with double system.
YARN GUIDE RAIL
4/3 pcs yarn guide rail, can
8/6 yarns can be used by any weaving system and can be switched at any position.
MOTOR
Using cani control, can achieve the rapid return and direction changing of the machine carriage, accurate positioning, smooth conmutation .
8/6 PCS YARN FEEDER
The 8/6 yarns can be switched at any position. According to different knitting speed the control program can automatically adjust the position.
AUTOMATIC RESET PROBE
Automatic reset function, which ensures any deviation of the probe can be reset automatically regardless of the area.
YARN STOP
Positive yarn providing, successfully reduce yarn resistance, increase knitting efficiency.
LYCRA DEVICE
In order to make the machine work better, we have developed 24-hours intelligent system for automatic refueling.
Machine Paramenters
|
Gauge
|
12G,14G,16G,18G
|
|
|
|
|||
|
Knitting width
|
36,42,52,60,68, 80,100inch
|
|
|
|
|||
|
Knitting system
|
Single carriage
Double carriage |
|
|
|
|||
|
Knitting speed
|
Maximum 1.6m/s. (depending on knitting wide and knitting material)
|
|
|
|
|||
|
Knitting function
|
Knitting, Semi jacquard,A/B jack tuck and full tuck; line jacquard and plain design.
|
|
|
|
|||
|
Needle-bed
|
Wider needles bed, with high and low jacks at front and rear needle bed.
|
|
|
|
|||
|
Racking
|
Controlled by servo-motor racking within 2 inches and with fine adjusting function.
|
|
|
|
|||
|
Stitch density
|
Controlled by stepping motor,0-99, the stitch of the collar can be accurately controlled.
|
|
|
|
|||
|
Take-down system
|
Sub-segment combination rollers, Programmed instruction controlled by stepping motor, two speed options.
|
|
|
|
|||
|
Color-changing system
|
6 colors, two side interchangeable feeders.
|
|
|
|
|||
|
Protection system
|
The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device.
|
|
|
|
|||
|
Control system
|
LCD industrial display, Display various parameters, Express in Chinese or English.
|
|
|
|
|||
|
Power supply
|
Single-phase 220V,adopt advanced CMOS technology, having memorizing function at power shock stop.
|
|
|
|
|||
|
Volume and weight
|
2200*900*1700mm,600kgs(42inch)
2400*900*1700mm,650kgs(52inch) 3500*900*1700mm,900kgs(80inch double carriages) |
|
|
|
|||
|
Optional functions
|
Lycra function; Yarn storage device; Yarn feeder device
|
|
|
|
|||
Product packaging
|
Model
|
Knitting Width
|
Package Machine Size(MM)
|
|
Gross Weight(KGS)
|
|
|
HY-421S
|
42 inch
|
2300*1050*1800mm
|
|
around 600kgs
|
|
|
HY-521S
|
52 inch
|
2500*1050*1800mm
|
|
around 650kgs
|
|
|
HY-802S
|
80 inch
|
3500*1050*1800mm
|
|
around 900kgs
|
|
Knitting Samples
Company Introduction
NINGBO HAOYUE
is a professional high-tech manufacturer, production & sales of computerized flat knitting machine and professional collar knitting machine(such as sweater, shoe upper, polo collar,rib, scarf, hat,blanket etc.) By 25 years concentration and persistence,accumulated experience and technical progress, We have won the trust from many domestic and overseas suppliers. We own abundant technical advantages. Excellent facility,perfect quality management system. We will offer better quality, better service, better prices to our customers. People foremost, success through quality. Mutual benefit and double-win outcomes are our conception.
