Quick Details
-
Size:
-
13000*2500*3400mm
-
Place of Origin:
-
Shandong, China
-
Suspension:
-
Mechanical Suspension
-
Axle:
-
3axles
-
Landing Gear:
-
JOST Brand Two-speed
-
Color:
-
Optinal
-
Tire:
-
12R22.5
-
Tank carriage size (mm):
-
12800*2400*1800MM
-
Condition:
-
New
-
Brake:
-
Mechanical Brake
-
Leaf Spring:
-
10/10/10
-
Painting:
-
Wax Polishing
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
25001-30000 kg
-
Brand Name:
-
SINOTRUCK
-
Size:
-
13000*2500*3400mm
-
Place of Origin:
-
Shandong, China
-
Suspension:
-
Mechanical Suspension
-
Axle:
-
3axles
-
Landing Gear:
-
JOST Brand Two-speed
-
Color:
-
Optinal
-
Tire:
-
12R22.5
-
Tank carriage size (mm):
-
12800*2400*1800MM
-
Condition:
-
New
-
Brake:
-
Mechanical Brake
-
Leaf Spring:
-
10/10/10
-
Painting:
-
Wax Polishing
Specification
|

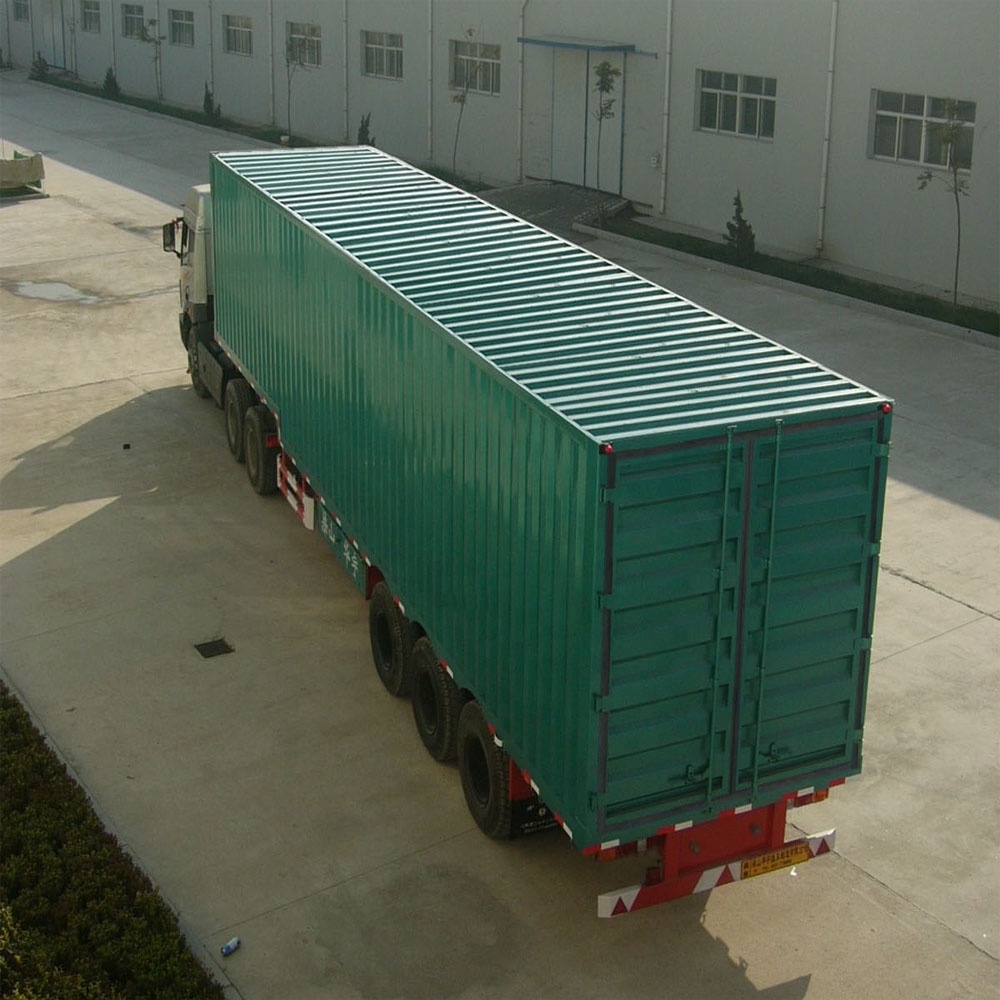

SPECIFICATION Of SEMI TRAILER
|
|
|
|
Trailer Model
|
3 Axles Container type Semi Trailer
|
|
|
Cargo Inner Dimension(Lx W x H)（mm）
|
12800*2400*1800
|
|
|
Whole Dimension(Lx W x H)（mm）
|
13000*2500*3400
|
|
|
Thickness of Cargo(mm)
|
Bottom 3mm, side 1.5mm
|
|
|
Remark
|
Two-Doors: the doors are on the right side and rear back.
|
|
|
Axle Brand
|
FUWA 13TON Axle
|
|
|
Axle Number
|
Three
|
|
|
Loading Capacity(kg)
|
50000kg
|
|
|
Wheelbase（mm）
|
6960+1350+1350
|
|
|
Suspension system
|
Common Mechanical suspension
|
|
|
Steel Spring
|
10/10/10 leaf spring suspension
|
|
|
The material of Main beam
|
The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm.
|
|
|
Tire Type
|
12R22.5 tubeless tires
|
|
|
Tire quantity
|
12units
|
|
|
Traction Pin
|
JOST
50mm or 90mm |
|
|
Spare Wheel Bracket
|
2 piece
|
|
|
Tool Box
|
1 Standard
|
|
|
Landing Gear
|
JOST C200
|
|
|
Brake system
|
Dual Line braking system ,none ABS.
|
|
|
Brake air chamber
|
Two double and two single chamber
|
|
|
Electrical system
|
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
|
|
|
|
Tail lamp with turn signal, brake light & reflector, side lamp etc.
|
|
|
|
One set 6-core standard Cable.
|
|
|
Painting
|
Color by customer’s requirement
|
|
|
Packing
|
Polish with wax before shipping
|
|
|
Delivery way
|
Transfer to China port, and carry by ro-ro ship, the freight cost depends on the volume.
|
|
Product Description
Packing & Delivery
Trucks are polished and polished before they leave the factory. We mainly deliver goods by sea, including bulk cargo, roll-on roll-off, frame, container and other large cargo transport mode. It is in Tianjin port, Qingdao port, Lianyungang port and other large Chinese ports.
FAQ
Q. Can your trucks be legally used in our country ?
A: Yes, they are CCC and ISO approved, and it has valid VIN number so that it can be used legally on road
Q. How about your product quality?
A: Yes, they are CCC and ISO approved, and it has valid VIN number so that it can be used legally on road
Q. How about your product quality?
A: The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certification.All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
Q. How about your company's service, especially after-sale service?
A: Jinan Sino Truck Sales Co.,Ltd. have been in this field for many years, our company is constantly improving the service quality to provide excellent service for customers according to the “client first” principle.We always do our best to solve all the problems and put our customer's interests in the first place.
Q. Is there any advantages of your price?
A: Jinan Sino Truck Sales Co.,Ld. is one of the important suppliers of Sinotruk, which provides guarantees for reasonable price and good quality. Especially,we provide a new service pattern--online assembly service, which aims to produce cars according to customers’ specific requirements.
Q. What is your lead time and voyage days?
A: Our trucks usually can be completed within 20 working days and the voyage day it may take 30 days to arrive in your ports, it depends on the distance of your country.
Q. How about your company's service, especially after-sale service?
A: Jinan Sino Truck Sales Co.,Ltd. have been in this field for many years, our company is constantly improving the service quality to provide excellent service for customers according to the “client first” principle.We always do our best to solve all the problems and put our customer's interests in the first place.
Q. Is there any advantages of your price?
A: Jinan Sino Truck Sales Co.,Ld. is one of the important suppliers of Sinotruk, which provides guarantees for reasonable price and good quality. Especially,we provide a new service pattern--online assembly service, which aims to produce cars according to customers’ specific requirements.
Q. What is your lead time and voyage days?
A: Our trucks usually can be completed within 20 working days and the voyage day it may take 30 days to arrive in your ports, it depends on the distance of your country.
After sale service
High quality trucks, no need to worry about after-sales service
