Quick Details
-
Brand Name:
-
TEAM WORK
-
Product name:
-
Conveyor Belt Cleaner Distributor Belt Scraper Conveyor
-
Material:
-
Polyurethane
-
Packaging:
-
carton or wooden box or customized
-
Port:
-
Tianjin/Qingdao
-
Supply capacity:
-
5000 / month
-
Certification:
-
CE ISO
-
Blade length:
-
500-2000mm
-
Key word:
-
Belt scraper conveyor
-
OEM:
-
Accept OEM
Quick Details
-
Warranty:
-
6 Months
-
Weight (KG):
-
30
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TEAM WORK
-
Product name:
-
Conveyor Belt Cleaner Distributor Belt Scraper Conveyor
-
Material:
-
Polyurethane
-
Packaging:
-
carton or wooden box or customized
-
Port:
-
Tianjin/Qingdao
-
Supply capacity:
-
5000 / month
-
Certification:
-
CE ISO
-
Blade length:
-
500-2000mm
-
Key word:
-
Belt scraper conveyor
-
OEM:
-
Accept OEM
Recommend Products
Products Description

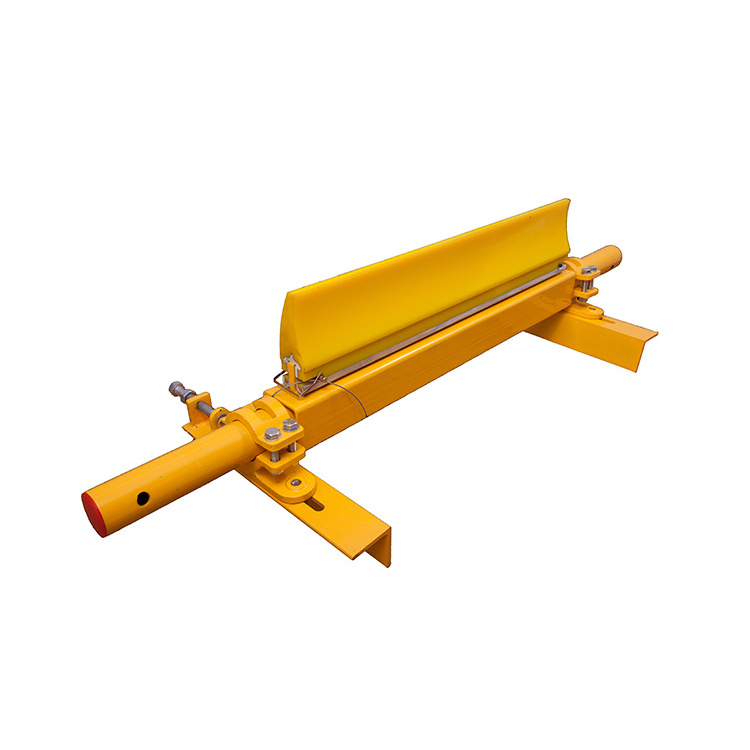

The belt cleaner can effectively wipe off the adhesive materials on the conveyor belt. Proper installation and maintenance of the belt cleaner can reduce the cost of material cleaning, reduce the downtime of the belt conveyor, and extend the service life of the belt and other conveyor components.
Characteristic
High performance polyurethane material blade: Wear resistance, hydrolysis resistance, corrosion resistance, fracture resistance, don't damage to the conveyor belt;
Quick replacement of blade: Pull out the fix pin, remove the old blade, replace it with a new blade, and then insert the fix pin;
Fixed rod split design: Consisting of middle fixed rod and extension rod on both sides, the length of fixed rod can be adjusted;
Spring tensioning mechanism: When the blade wears or the conveyor belt runs, the blade can automatically follow up and compensate to ensure that there is a suitable contact force between the blade tip and the conveyor belt;
|
Polyurethane belt cleaner
|
|
|
|
|
||||
|
Model
|
Belt width(mm)
|
Steel tube length(mm)
|
Blade length(mm)
|
NW/PC (kg)
|
||||
|
XLGH
|
500
|
1300
|
450
|
42.5
|
||||
|
|
650
|
1450
|
600
|
46.3
|
||||
|
|
800
|
1600
|
750
|
50.2
|
||||
|
|
1000
|
2000
|
900
|
57.5
|
||||
|
|
1200
|
2200
|
1100
|
62.6
|
||||
|
|
1400
|
2400
|
1300
|
67.8
|
||||
|
|
1600
|
2600
|
1450
|
76.9
|
||||
|
|
1800
|
2800
|
1650
|
81.3
|
||||
|
|
2000
|
3000
|
1800
|
85.9
|
||||
|
|
Blade Material: Polyurethane
|
|
|
|
||||
Mining industry polyurethane belt conveyor return scraper for tail pulley cleaning
