Product Details

{{item.text}}

Quick Details

Diameter Rotary:: 255mm

Number Rotary:: 60

Rotating Shaft Shredder:: 90rpm

number of fixed knife:: 4-8

maximum yield:: 1200kg/h

feeding caliber:: 700*800

power of main motor:: 37kw-90kw

host weight:: 4-10ton

Color:: Client's Requirements

Certification:: CE ISO

Quick Details

Place of Origin:: Shandong, China

Shaft Design:: Double

After-sales Service Provided:: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support

Diameter Rotary:: 255mm

Number Rotary:: 60

Rotating Shaft Shredder:: 90rpm

number of fixed knife:: 4-8

maximum yield:: 1200kg/h

feeding caliber:: 700*800

power of main motor:: 37kw-90kw

host weight:: 4-10ton

Color:: Client's Requirements

Certification:: CE ISO

Product Description

Industrial Cardboard Plastic Trash Can Shredder Garbage Shredder

Description:

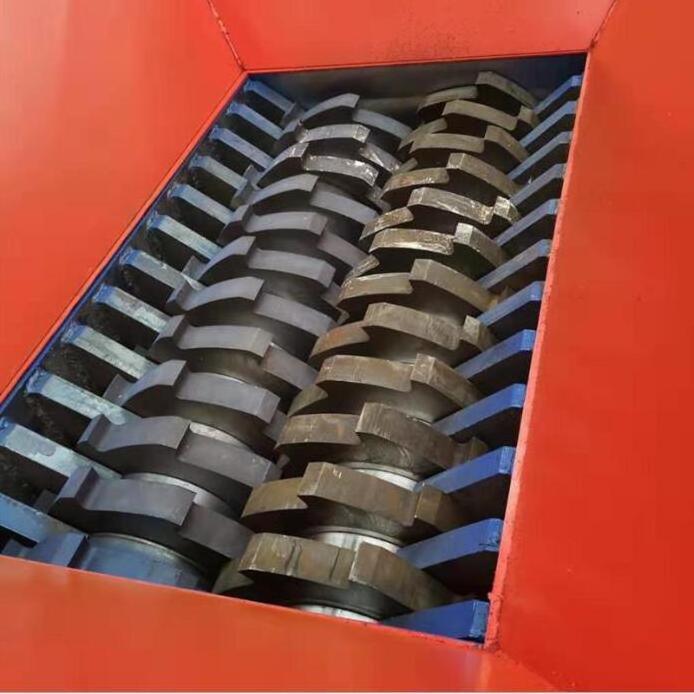

Double Shaft Shredder with loading hoppers, equipped with high quality cutters with low rotation speed for a lower energy consumption and noise reduction. It incorporates two counter-rotating shafts that intermesh with each other(2 shafts with sharp elements constituted by sharp-corners disks provided with hooks); Every hook has the task to hook the product and drive-it by the action of the two counter-rotating shafts). The material is powerfully torn and shredded by the talons of the cuttings discs. Specially designed rotor makes the shredder be extremely wear resistant.

Shredder Model	HT -600	HT -800	HT -1000	HT -1200	HT -1600
Diameter Rotary	255mm	255mm	300mm	300mm	300mm
Number Rotary	60	78	96	114	150
Rotating Shaft Shredder	90rpm	90rpm	90rpm	90rpm	90rpm
Number of Fixed Knife	4	4	4	8	8
Maximum yield	650kg/h	90kg/h	1000kg/h	120kg/h	150kg/h
Feeding caliber	700×800	880×1100	1070×1150	1280×1300	1650×2000
Power of main motor	18.5KW×2	22KW×2	30KW×2	37KW×2	45KW×2
Host weight	4000 kg	5400 kg	6200 kg	8000 kg	9500 kg

Application

1. All kinds of hollow containers: plastic beverage cans, plastic barrels, iron barrels, packing boxes, packaging barrels

2. Waste household appliances: TV, washing machine, refrigerator shell

3. Pipes: large pipes, pipe fittings, PE pipes

4. Waste template: wooden pallet, plastic tray, forklift pallet

5. Scrap tires: car tires, truck tires

6. Scrap metal: automobile shell, bicycle,aluminum alloy, scrap cast aluminum parts, engine shell,steel plate

7. Kitchen waste, domestic waste, rdf derivatives, medical waste,garden waste

8. Textile:clothes,shoes,woven bag

WORKING PRINCIPLE

This equipment is mainly composed of feed hopper,double shaft cutting system, Plc control system, discharging conveyor system and power system, etc.;

1.Feed hopper: Put the material to be crushed, so as to prevent the material from splashing out.

2.Double shaft cutting system:Using different blades according customers' material

3.Power system:We choose famous brands of motor in China, can also be configured according to customer needs

4.Discharging conveyor system:It adopts independent power system, and that power system is integrally fixed on the shredder by bolts, so that the power system can be integrally drawn out.

FEATURES

1. The shredder machine with big feed hopper allows us can put the big material.

2. The special design rotary knife work very efficiency.

3. The shredder machine is control by PLC control system; the blade can reverse to protect the machine and close automatically.

4. The knife is made with special alloy steel,through high temperature treatment,it can work for long life time.

5. Knife is very easy to change.

6. The machine is equipped with an extra large pulley to increase the inertia of the crusher, which can save energy and increase the crushing capacity.
