Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XINDA
-
Model Number:
-
WFB-X800/WFB-X1200
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
4500*1600*1600mm/4500*2400*1600mm
-
Weight:
-
1 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Bag Making Thickness Range:
-
20-60g
-
Max.Bag Making Length:
-
999mm
-
Production Speed:
-
20-60pcs/min
-
Model:
-
WFB-X800
-
Max.Bag Making Width:
-
800mm
-
Production Speed:
-
20-60pcs/min
-
Total Power:
-
5kw
-
Machine Weight:
-
1t
-
Overall Demensions:
-
4500*1600*1600mm
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
pillowcase,bedding bag, appliances bag, luggage-bag cap
-
Material:
-
Non Woven Bag
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XINDA
-
Model Number:
-
WFB-X800/WFB-X1200
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
4500*1600*1600mm/4500*2400*1600mm
-
Weight:
-
1 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Bag Making Thickness Range:
-
20-60g
-
Max.Bag Making Length:
-
999mm
-
Production Speed:
-
20-60pcs/min
-
Model:
-
WFB-X800
-
Max.Bag Making Width:
-
800mm
-
Production Speed:
-
20-60pcs/min
-
Total Power:
-
5kw
-
Machine Weight:
-
1t
-
Overall Demensions:
-
4500*1600*1600mm
| Main Introductions | ||||||

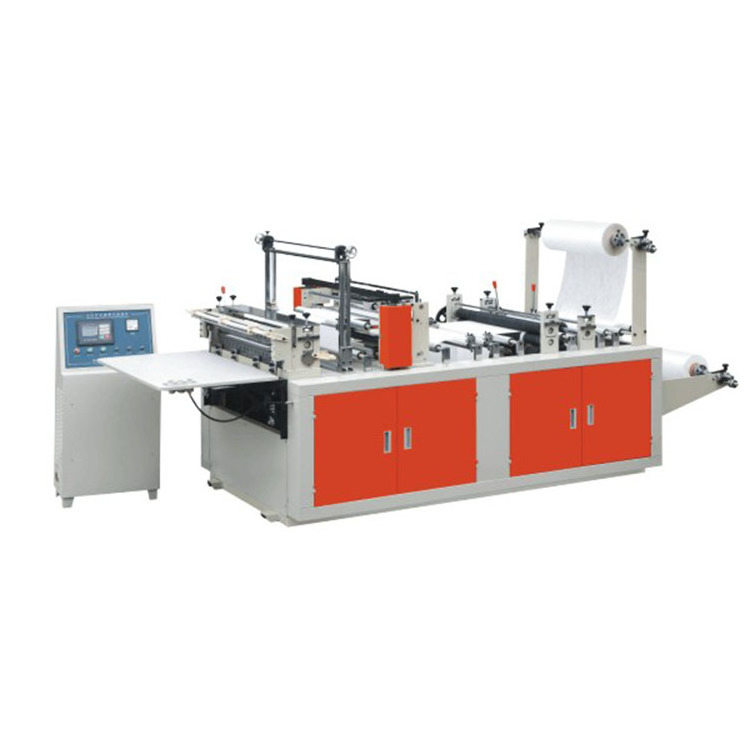

| This machine accepts double roll fabric feeding design, it seals the two roll fabric, cut and seal it into bag automatically. It's widely used in producing the bedding bag, appliances bag, luggage-bag cap, seat cover and other bulky itmes bag. | ||||||
| Performance and Characterisitics | ||||||
| 1)Micro-computer control system,perfect combination of electro mechanical technology and ultrasonic sealing technology. | ||||||
| 2)Stepping motor(servo motor control system can be selected and equipped) | ||||||
| 3)Arbitrary fixed length | ||||||
| 4)Accurate and stable photocell tracking | ||||||
| 5)Stop automatically when the label losts | ||||||
| 6)Automatic punching,automatic counting and counting alarm | ||||||
| 7)Heat-sealing decorative border | ||||||
| 8)Automatic constant temperature, perfect and smooth sealing, with EPC control | ||||||
| Main Technical Parameters | ||||||
| Model | WFB-X800 | WFB-X1200 | ||||
| Max.Bag Making Width | 800mm | 1200mm | ||||
| Bag Making Thickness Range | 20-60g | 20-60g | ||||
| Max.Bag Making Length | 999mm | 999mm | ||||
| Production Speed | 20-60pcs/min | 20-60pcs/min | ||||
| Total Power | 5kw | 8kw | ||||
| Machine Weight | 1t | 2t | ||||
| Overall Demensions | 4500*1600*1600mm | 4500*2400*1600mm | ||||
Packaging: wooden foot and plastic film
Terms of payment: 30% T/T in advance, the balance should be paid before the delivery
Delivery time: Within 20 days after receiving the deposit before the shipment
Guarantee period and maintenance:
Seller guarantees that the equipment is accordance with the function and requirement without manufacturing defects. The guarantee period is one year after the installation and adjustment.
Buyer is responsible for the costs including maintenance and spare parts if the equipment damage is caused by the buyer's improper use, not caused by the seller's design and manufacturing.
If the buyer needs seller to send an engineer the installation and training. The buyer should cover the all of expense for the seller's engineers, such as, air-tickets, visa, accommodation and local traffic charges, salary(USD 100/day) in buyer's side. And the buyer should do his best to cooperate the engineers of sales party in installation, supply the enough labor and tools, necessary accessory with them.
