sweet potato chips slicing machine slicer cutter
sweet potato chips slicing machine slicer cutter
sweet potato chips slicing machine slicer cutter
sweet potato chips slicing machine slicer cutter
sweet potato chips slicing machine slicer cutter
sweet potato chips slicing machine slicer cutter
sweet potato chips slicing machine slicer cutter
sweet potato chips slicing machine slicer cutter

sweet potato chips slicing machine slicer cutter

FOB Reference Price: Get Latest Price
≥1 Sets
US $1800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Type:
Slicer
Voltage:
220V/380V/50HZ
Power:
0.75kw
Weight:
75 KG
Dimension(L*W*H):
1000*900*580mm
Name:
multifunctional vegetable slicer
Product name:
vegetable fruit slicer cutter
Item name:
vegetable slicing machine
Item:
electric vegetable cutter machine
Cutting shape:
Slice Shape
Function:
Cutting Vegetable
Application scope:
Fruit and vegetable processing plant equipment
Production capacity:
500kg/h
Machine material:
SS304 Stainless Steel
Feature:
High Efficiency & Easy Operation

Quick Details

Marketing Type:
Hot Product 2023
Place of Origin:
Henan, China
Brand Name:
Awisy
Type:
Slicer
Voltage:
220V/380V/50HZ
Power:
0.75kw
Weight:
75 KG
Dimension(L*W*H):
1000*900*580mm
Name:
multifunctional vegetable slicer
Product name:
vegetable fruit slicer cutter
Item name:
vegetable slicing machine
Item:
electric vegetable cutter machine
Cutting shape:
Slice Shape
Function:
Cutting Vegetable
Application scope:
Fruit and vegetable processing plant equipment
Production capacity:
500kg/h
Machine material:
SS304 Stainless Steel
Feature:
High Efficiency & Easy Operation

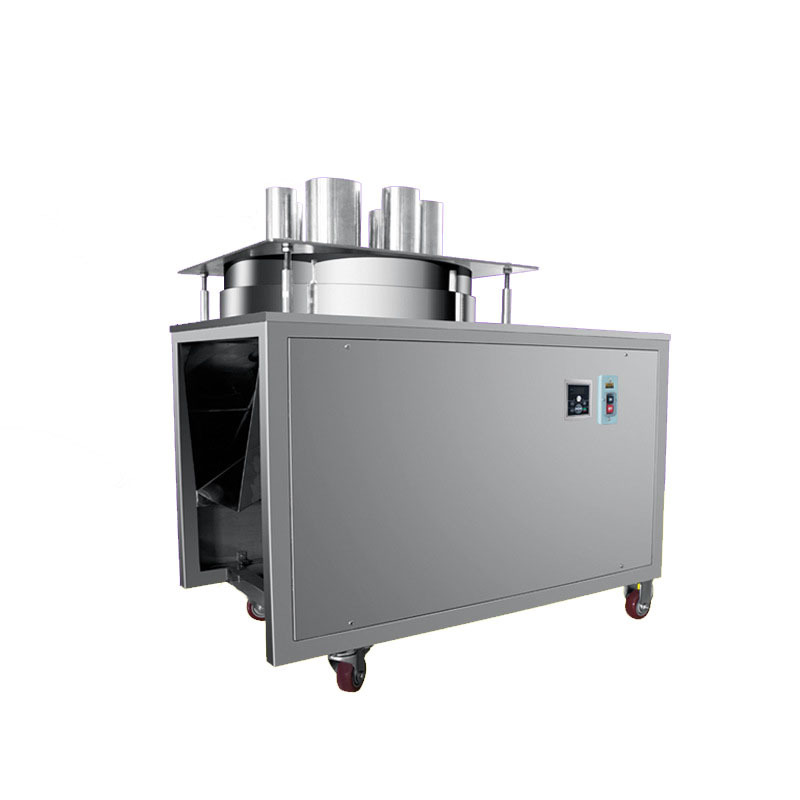

500kg/hour sweet potato chips slicing machine slicer cutter

Product Description

Multi-function slicer can cut fresh straight root vegetables and round fruit such as yam, lotus root, cassava, sweet potato, potatoes, carrot, bitter gourd, sponge gourd, cucumber, radish, lemon, orange, citrus fruit, apple, banana, and so on into slices.

Structure characteri

With rotating cutter disc for slicing, it has advantages of good slicing quality, uniform thickness and size of vegetable slices, fresh slicing tissue and no damage to fiber tissue. The slice thickness of fruit and vegetable cut by this machine can be adjusted from 0.5 mm to 10 mm.

At the same time, the machine has high slicing efficiency, easy operation, low energy consumption, sanitation and safety. It is an ideal equipment for agricultural products processing.

Each cutter blade has three fixed bolts and two adjusting bolts. When it is necessary to cut thick slices, loosen the fixing bolt slightly, and eject the blade with the adjusting bolt to reach the required thickness, then tighten the fixing bolt. When slicing into thin slice, the opposite is true.

Mainly composed of frame, rotating cutter disc, transmission part, motor, outlet and so on.

It is suitable for slicing medium-sized and long cylindrical materials. The machine is made of aluminium alloy and stainless steel in contact with agricultural products to ensure long-term work is stainless, non-corrosive, non-toxic and harmless, which meets the hygienic requirements of food processing machinery.

Operation

1. First try to cut vegetables before normal operation, observe whether the specifications and requirements of the cut vegetables are consistent, otherwise the height of cutters and turntables should be adjusted (or replaced), and then work normally after adjustment.

2. The thickness of the slice is determined by the gap between the blade and the turntable, and the size of the slice is changed by adjusting the blade.

Technical Parameter

Commodity: lotus root slicing machine

Model

YC-75A

YC-75B

Power 0.75KW 0.75KW
Production capacity 500kg/hour 500kg/hour
Cutter speed 600r/min Adjustable
Dimension(L*W*H) 1000 *900 *580 mm 1000 *900 *580 mm
Voltage 380V,3 Phase 380V,3 Phase
Frequency 50HZ 50HZ
Weight 75 kg 75 kg

Note:

1. Customized voltage is available.

2. Large caliber, straight inlet,one machine has seven inlets, 2 inlets for diameter of 10.5cm, 2 inlets for diameter of 9cm, 2 inlets for diameter of 7cm, and 1 material inlet with diameter of 6cm. Custom caliber is acceptable. Custom-made fee is calculated separately according to the modification part.

Detail Information

Packaging

Film wrap shrink first, then by pallet or export wooden case to protect not damage while transportation if for whole line, loading into container directly.

Our Services

1. Accept the custom made.

2. Highly pay attention to the after sell service and setting global engineer team.

3. Quality product and honest business is our principle. Hope our cooperation could help you open more market and achieve win-win.

Detailed Images

Product effect:
