Quick Details
-
Design Printing:
-
No printing
-
Material:
-
PTFE
-
Feature:
-
Heat-Resistant
-
Use:
-
Carton Sealing
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
chuanda Ptfe tapes
-
Model Number:
-
CD5412
-
Thickness:
-
0.08mm 0.13mm 0.18mm 0.25mm, 0.08mm-1mm
-
Color:
-
Black , beige, light brown, silver
-
Temperature resistance:
-
-80-260C
-
Width:
-
1250MM
-
Product name:
-
Ptfe tapes
-
Length:
-
10-1300m
-
Certificates:
-
LFGB/PONY/ROHS
-
Type:
-
Pressure Senstive Adhesive Tape
-
Size:
-
Custom Made
-
Sample:
-
Free sample, free shipping
Quick Details
-
Adhesive:
-
Rubber
-
Adhesive Side:
-
Single Sided
-
Adhesive Type:
-
Hot Melt, Pressure Sensitive, Water Activated
-
Design Printing:
-
No printing
-
Material:
-
PTFE
-
Feature:
-
Heat-Resistant
-
Use:
-
Carton Sealing
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
chuanda Ptfe tapes
-
Model Number:
-
CD5412
-
Thickness:
-
0.08mm 0.13mm 0.18mm 0.25mm, 0.08mm-1mm
-
Color:
-
Black , beige, light brown, silver
-
Temperature resistance:
-
-80-260C
-
Width:
-
1250MM
-
Product name:
-
Ptfe tapes
-
Length:
-
10-1300m
-
Certificates:
-
LFGB/PONY/ROHS
-
Type:
-
Pressure Senstive Adhesive Tape
-
Size:
-
Custom Made
-
Sample:
-
Free sample, free shipping
|

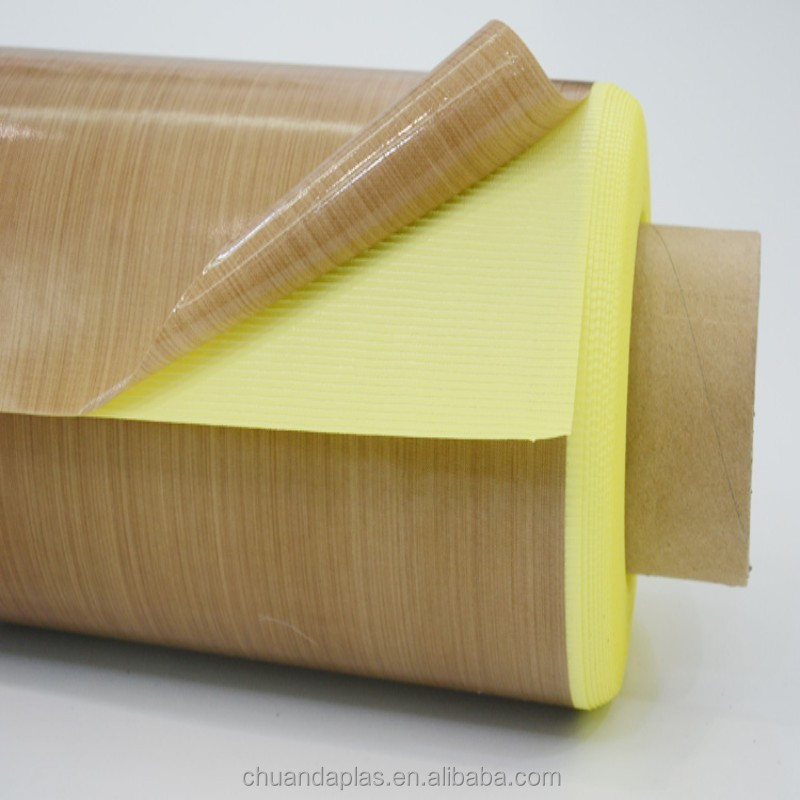

Name |
PTFE fiberglass tapes |
|
Material |
Fiberglass coated with PTFE |
|
Mini order quantity |
50 square meters |
|
Port |
shanghai |
|
Term of payment |
T/T,L/C,D/P,PAYPAL,WESTERN UNION |
|
Supply ability |
100000 squar meters /month |
|
Delivery detail |
3-10 days after advance payment or confirmed L/C received |
|
Packing detail |
Bubble film + Standard export CTN. |
|
Length |
10~55m |
|
Max width |
1250mm |
|
Color |
Black, beige, brown |
|
Temperature |
-70 ℃ ~ 260 ℃ |
|
Certifications |
,LFGB,, ROHS, CE / EU, PONY |
|
Other |
Easily Cleaned, Heat Resistance |
|
Shipment |
Express Delivery, Sea Shipment, Air Shipment |
Properties:
1.The non-adhesive side exhibits excellent features of polytetrafluoroethylene (PTFE) such as electrical
properties, resistance to heat, weather, chemical, and water (water shedding), and non-adhesiveness
2.Superior tensile strength.
3.Superior flame resistance.
4.Can be used in a wide range of temperature (-60°C-260°C), however, it may vary according
to
the
use condition.
Applications:
1.For roll wrapping in polyethylene laminators (Suitable for long continuous use as the tape has superior durability and mechanical strength).
2.For endless belts of polyethylene laminators.
3.For insulation of coils as a class H insulating material.
4.Can be laminated with metals, plastics and ceramics as general sliding materials.
PTFE COATED FIBERGLASS FABRIC ADHESIVE TAPES TECHNICAL DATA:
|
Item |
Basic cloth Thickness |
TOTAL THICKNESS |
Max width |
Adhesive Strength |
Tensile Strength |
Temperature |
Color |
|
|
mil |
mm |
mm |
mm |
N/mm |
N/mm |
℃ |
|
|
|
7008 |
3 |
0.08 |
0.13 |
1250 |
20/100 |
100/100 |
-60 - 260 |
Brown, Black, White, Beige |
|
7013 |
5 |
0.13 |
0.18 |
1250 |
22/100 |
900/100 |
-60 -260 |
|
|
7015 |
6 |
0.15 |
0.20 |
1250 |
24/100 |
1300/100 |
-60 -260 |
|
|
7018 |
7 |
0.18 |
0.23 |
1250 |
28/100 |
1700/100 |
-60 -260 |
|
|
7020 |
8 |
0.20 |
0.25 |
1250 |
30/100 |
2000/100 |
-60 -260 |
|
|
7025 |
10 |
0.25 |
0.30 |
1250 |
45/100 |
2750/100 |
-60 -260 |
|
