Quick Details
-
Application:
-
Medical hazardous waste incinerator
-
Burning ability:
-
100-150kg/time(3-6 times per day)
-
Size:
-
2.0m*1.5m*3.5m
-
Size of the filling entrance:
-
760mm*960mm
-
Chimney:
-
Height 10m,out-radius diam 300mm
-
operation voltage:
-
220V or380V
-
Ignition manner:
-
automatic
-
Fuel type:
-
0# or-10# diesel or natural gas
-
Feeding mode:
-
Solid waste manual feeding
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WATERYIMEI
-
Model Number:
-
LDF-150
-
Application:
-
Medical hazardous waste incinerator
-
Burning ability:
-
100-150kg/time(3-6 times per day)
-
Size:
-
2.0m*1.5m*3.5m
-
Size of the filling entrance:
-
760mm*960mm
-
Chimney:
-
Height 10m,out-radius diam 300mm
-
operation voltage:
-
220V or380V
-
Ignition manner:
-
automatic
-
Fuel type:
-
0# or-10# diesel or natural gas
-
Feeding mode:
-
Solid waste manual feeding
Product Description

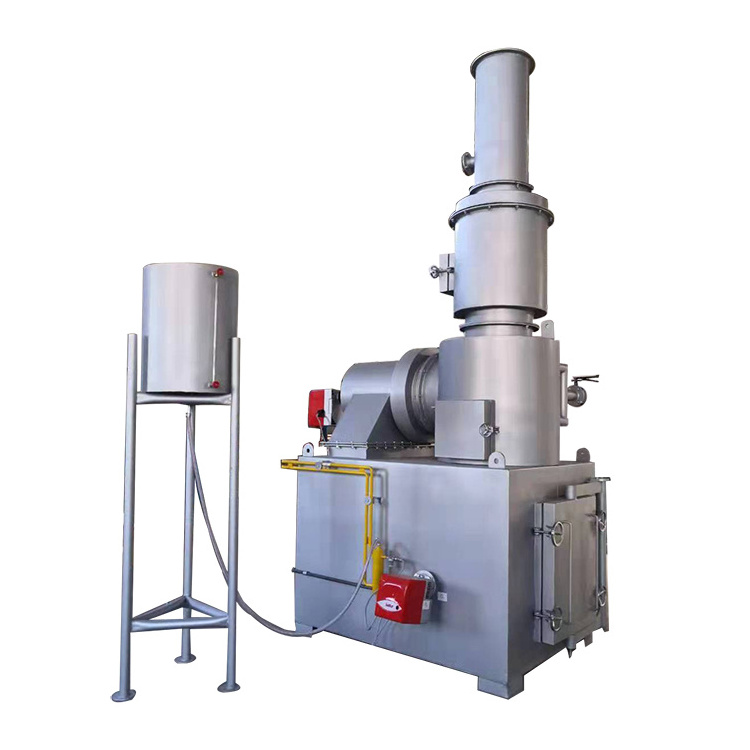

Detailed Images
Structure Diagram
The whole treatment system content: combustion-supporting system, burn system, dust collector system, electrical system.
|
Furnace body type
|
Vertical closed furnace combustion chamber
|
|
Ignition manner
|
Automatic
|
|
Fuel type
|
0# or-10# diesel or natural gas
(can use conversion to convert natural gas to LPG gas) |
|
Feeding mode
|
Solid waste manual feeding
|
|
Take ash manner
|
Manual
|
|
Furnace inner pressure
|
Adopt negative pressure design, no back-fire,—3~—10mmH2O
|
|
Design heat value
|
Waste mix 1500kcal/kg ~2500kcal/kg,0# diesel 10000kcal/kg
|
|
Flue gas treatment manner
|
Gasification combustion chamber (first combustion chamber) + blower + mixed combustion chamber+ high temperature secondary
combustion chamber + flue gas purification room (calcium hydroxide filter brick) +exhaust fan + independent chimney. |
|
Burning temperature
|
First combustion chamber: 600-900℃;
Secondary combustions chamber:1300℃ Flue gas residence time≥2s |
|
Combustion efficiency
|
≥99.99%
|
Application
Main feature
Model list
|
Model item
|
LDF-20
|
LDF-30
|
LDF-50
|
LDF-100
|
LDF-150
|
LDF-300
|
LDF-500
|
|
Burning Capacity(kg/time)
3-6 times/day |
10-20
|
20-30
|
30-50
|
50-100
|
100-150
|
200-300
|
300-400
|
|
Size of the Burner (m)(L*H*B)
|
1.6x1.2x1.7
|
1.45x0.9x1.75
|
1.8x1.15x3
|
1.8x1.4x3.4
|
2*1.4*3.5
|
2.2*1.4*3.8
|
3*2*4.8
|
|
Size of the filling entrance (mm)
|
380x480
|
480x600
|
620x800
|
520x720
|
760x960
|
900x1100
|
1080x1280
|
|
Chimney(mm)
|
Ø280
(OD) |
Ø280
(OD) |
Ø280
(OD) |
Ø300
(OD) |
Ø300
(OD) |
Ø400
(OD) |
Ø460
(OD) |
|
Air-blower(KW)
|
0.25
|
0.37
|
0.37
|
0.5
|
0.5
|
1.1
|
1.1/0.55
|
|
Auxiliary machine power(kw)
|
0.11
|
0.11
|
0.11
|
0.11
|
0.11
|
0.22
|
0.22
|
|
Auxiliary machine oil consumption(kg/h)
|
4-6
|
4-6
|
4-10
|
4-10
|
4-10
|
7-14
|
7-14
|
|
Re-burning machine power(kw)
|
0.11
|
0.11
|
0.11
|
0.22
|
0.22
|
0.37
|
0.37
|
|
Re-burning machine oil consumption(kg/h)
|
4-6
|
4-6
|
4-10
|
7-14
|
7-14
|
10-20
|
15-26
|
|
Running voltage(V)
|
380/ 220
|
380/ 220
|
380/ 220
|
380/ 220
|
380/ 220
|
380/ 220
|
380/ 220
|
Packing&Shipping
Our services
Company Introduction
Qingdao Yimei environment project Ltd. Found in 1988, located in maxi Chinese military affairs harbour base Jiao Nan City. Occupy about 36,000 square meters, 15,000 square meters workshop building, have each kind of processing machine about 130 pcs, as one of Shandong Province environment protection industrial association trustee member unit, now have staff about 300 person, 72 engineers and technicians, mainly engaged in the environment project, environmental protection equipment design and manufacture, water treatment technological development, engineering construction, technical service and series of products of client customized.We have the well experienced engineer, strong specialized production base, advanced manufacturing facilities, and can supply the first-rate product and special field consulting service.In the long rang concentrates efforts on environment protection cause investing in construction, complete sets of equipment and project overall contracting.
