Quick Details
-
Place of Origin:
-
Chongqing, China
-
Product Name:
-
Cub Petrol Bikes
-
Color:
-
Optional
-
Displacement(ml)::
-
110
-
Compression Ratio::
-
9.1:1
-
Max. Power(kw/r/min):
-
5.8/7500
-
Max. Torque (N.m/r/min)::
-
8.5/5000
-
Max. Speed (Km/h)::
-
≥80
-
Lubrication::
-
Pressure ,splash
-
Front Brake::
-
Disk brake
-
Rear Brake::
-
Drum brake
Quick Details
-
Displacement:
-
110cc
-
Max. Speed:
-
> 80km/h
-
Motor:
-
Brushless
-
Place of Origin:
-
Chongqing, China
-
Product Name:
-
Cub Petrol Bikes
-
Color:
-
Optional
-
Displacement(ml)::
-
110
-
Compression Ratio::
-
9.1:1
-
Max. Power(kw/r/min):
-
5.8/7500
-
Max. Torque (N.m/r/min)::
-
8.5/5000
-
Max. Speed (Km/h)::
-
≥80
-
Lubrication::
-
Pressure ,splash
-
Front Brake::
-
Disk brake
-
Rear Brake::
-
Drum brake

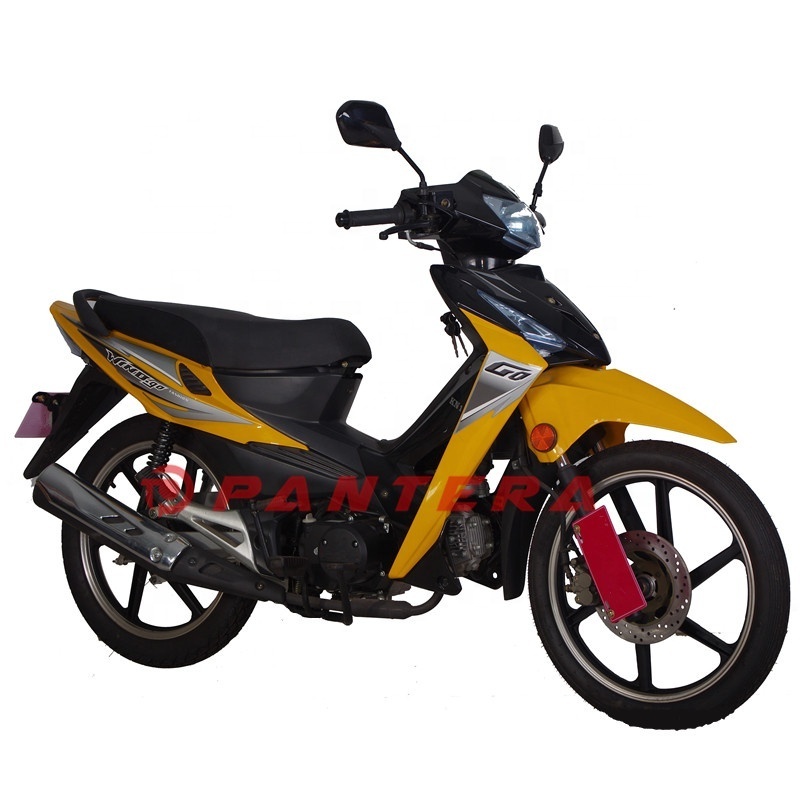

110cc Two Wheeler Motor Gasoline Cycle Moped Cub Petrol Bikes
Overview
Different Angles
Details
Motorcycle Selling Points:
1. The new gearshift structure design make the gearshift is easy to operate,
and with clear gear, to prevent the possibility of chaos gear and crossgear
from the structure .
2. We can assure you of both the price and quality are the best.
3. Prompt delivery time.
4. We are a company with strong strength, we not only have Alibaba
platform being a golden supplier, but also have been made-in-china.
5. Our products are will received at home and abroad. Mainly exported to
more than 100 countries and regions in Europe, Africa, Middle East and
south Ease Asia.
6. Despite the fine quality, our prices are always competitive, being an
experienced manufacturer, we know how to guarantee the quality, and
control the cost at the same time.
7. OME service are welcomed. We can do your logo if you can order a container and design unique stickers for you or you can provide with your design.
| Technical | |
| Engine | |
| Engine Type: | Single cylinder,wind-cooled,Four-stroke |
| Displacement(ml): | 110 |
| Bore X Stroke(mm): | 52.4x55.5 |
| Compression Ratio: | 9.1:1 |
| Max. Power(kw/r/min) | 5.8/7500 |
| Max. Torque (N.m/r/min): | 8.5/5000 |
| Max. Speed (Km/h): | ≥80 |
| Lubrication: | Pressure ,splash |
| Clutch Type: | Multiplate wet clutch, Manual |
| Ignition: | CDI |
| Starting System: | Electric start |
| Transmission System: | Chain drive |
| CHASSIS | |
| Front Brake: | Disk brake |
| Rear Brake: | Drum brake |
| Front Tire: | 115/80-13 |
| Rear Tire: | 115/80-13 |
| Battery: | 12V/5Ah |
| DIMENSIONS | |
| L X W X H (mm): | 1910*685*1090 |
| Seat Height (mm): | 770 |
| Wheelbase (mm): | 1250 |
| Min. Ground Clearance(mm): | 120 |
| Max. Permissionable Weight (kg): | 150 |
| Rider Capacity: | 1 Person |
| Dry. Weigth (kg): | 96 |
| Engine Oil (L): | 1L SAE15W/40 |
| Fuel Tank Capacity (L): | 4 |
| Others | |
| Packing Size (mm): | 1700×460×860 |
| Packing Weight (kg): | 118 |
| Container Loading(40HQ): | 105 |
Personal Customization:
1. Front brake:drum brake/disc brake
2. Wheel:spoke wheel/alloy wheel
3. Speedmeter:normal speedmeter/digital speedmeter
4. Displacement can be changed from 50cc, 70cc, 100cc and 110cc
5. All the models can be equiped with cargo shelf and control remote
6. You can select 2 colors for your motorcycles if you ordered an container
7. OEM service are welcomed. Please provide with your logo or brand name. We'll put it on the scooters.
Warranty
1.
We can offer one year warranty or engine 6000kms for a container order.
2.
And 1% easy-damaging
spare parts are provided for free
for a container order
| easy broken spare parts list: | |
| No. | spare parts name |
| 1 | carburetor |
| 2 | electric parts |
| 3 | headlight assy |
| 4 | meter assy |
| 5 | L. front turning light |
| 6 | R. front truning litht |
| 7 | L. rear turning light |
| 8 | R. raer turning light |
| 9 | tail light assy |
| 10 | front and rear inner tube |
| 11 | rearview mirror |
| 12 | pasoes |
| 13 | chain |
| 14 | handle switch |
| 15 | handle bar |
| 16 | cable |
| 17 | battery |
| 18 | seat |
| 19 | rear shock |
| 20 | footrest |
| 21 | starting arm |
| 22 | gear pedal |
| 23 | muffler |
| Note: the above spare parts packaged separately, carton packaging, standard marks. | |
SKD steel frame + cartoon or wooden frame
CKD wooden case or cartoon
Remark: SKD means semiknocked down and CKD means complete knocked down. They are the different package ways. Both of them will take less import tariffs and frieight than finished product.
