Quick Details
-
Power:
-
300w
-
Dimension(L*W*H):
-
2130*1600*800mm
-
Weight:
-
375
-
After-sales Service Provided:
-
Online Service
-
Capacity:
-
15-20 Beds/hour
-
Sewing head:
-
Single Needle
-
Table size:
-
1560*1960 (mm)
-
Working Angle:
-
40 -75
-
Total Weight:
-
375kg
Quick Details
-
Place of Origin:
-
Henan
-
Brand Name:
-
Pindu
-
Voltage:
-
220v/380v
-
Power:
-
300w
-
Dimension(L*W*H):
-
2130*1600*800mm
-
Weight:
-
375
-
After-sales Service Provided:
-
Online Service
-
Capacity:
-
15-20 Beds/hour
-
Sewing head:
-
Single Needle
-
Table size:
-
1560*1960 (mm)
-
Working Angle:
-
40 -75
-
Total Weight:
-
375kg
Product Description

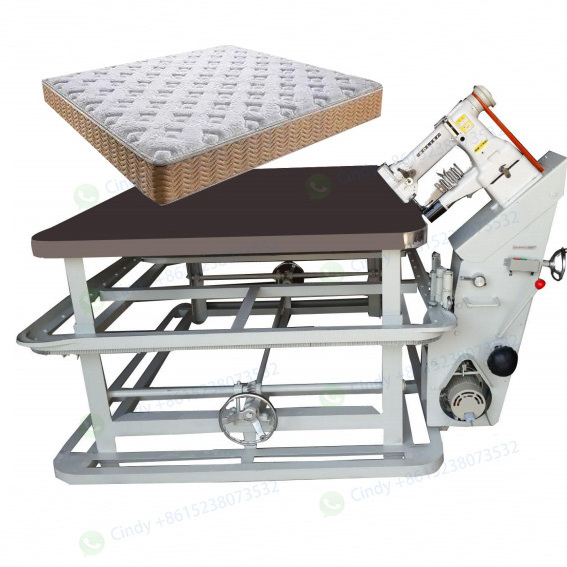

Mattress edge sewing machine
1.Mattress Surround Edge Tape Sewing Machine ,Use For Sewing Mattress
2.WB1 is manual model , head and table lifting by hand wheel
3.WB2 is semi-auto,head and table lifting by electric,Table support by four pillar in four corners
4.WB3 is semi-auto , head and table lifting by electric , Table support by one pillar in center
5.Sewing thickness 20-400mm is standard
6.Easy to install and operate , no need professional engineer
7.Frequency speed control , auto-slow down at corners
Specification
|
Model
|
HX-WB1
|
HX-WB2
|
HX-WB3
|
||
|
Voltage
|
220v/380v/50hz can be customized
|
|
|
||
|
Power
|
400w
|
1300w
|
1300W
|
||
|
Dimension(L*W*H)
|
2130*1600*800mm
|
2100*1900*1030mm
|
2100*1900*1030mm
|
||
|
Weight
|
375kg
|
450kg
|
550kg
|
||
|
processing mattress thickness
|
20-400mm
|
|
|
||
|
Sewing Angle
|
40-75° adjustable
|
|
|
||
|
Work Table size
|
1480*1920/1780*1920mm
|
1465*1965/1765*1965mm
|
1465*1965/1565*1965/1765*1965mm
|
||
|
Capacity
|
15 Units/h
|
20 Units/h
|
22 Units/h
|
||
|
Sewing head
|
8B/2603
|
8B/2603/300U
|
|
||
Our service
1. All parts are guaranteed one year for non-human-made damage
2. We are always available online, any time, any questions about the machine can contact us at any time
3. In production,production pictures and videos are available any time
4. After buying,our engineer online 10 hours every working day to help you use machine correctly
5. We provide details machine installation & user’s guide and maintenance manual
