Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
contact part with 304 stainless steel
-
Customization:
-
available
-
Cleaning system:
-
bouncing ball
-
Test:
-
we offer
-
Function:
-
grading,screening,filter and removing impurities
-
OEM:
-
accept
-
Appearance:
-
circular
-
RPM:
-
1500r/min
-
Power:
-
0.55kw
Quick Details
-
Weight (KG):
-
150
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dahan
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
contact part with 304 stainless steel
-
Customization:
-
available
-
Cleaning system:
-
bouncing ball
-
Test:
-
we offer
-
Function:
-
grading,screening,filter and removing impurities
-
OEM:
-
accept
-
Appearance:
-
circular
-
RPM:
-
1500r/min
-
Power:
-
0.55kw

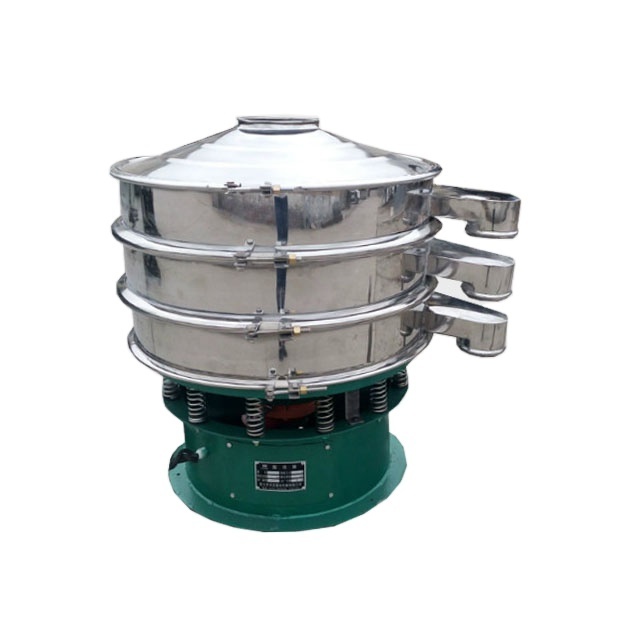

light vibro sifter for Citric acid filter and sieving is designed as a high-precision screening machinery.vibro sifter is composed of vertical motor,and eccentric weight installed at two ends.We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight.Diameter can be ranged from 400mm to 2000mm, with single or multiple screening decks(1-5 layers).Material can be divided into all carton steel,contact part stainless steel and all stainless steel.
DH series light vibro sifter for Citric acid filter and sieving is a vertical-motor system, with eccentric hammers being installed on top and bottom of the machine,where the vibration motor acts as the vibratory source.The direction of the eccentric hammers may change its rotational mode either in horizontal,vertical and inclined movement onto the sieving screener surface.
light vibro sifter for Citric acid filter and sieving parameter list
| Model |
Power (kw) |
Sieve diameter (mm) |
Granularity (mm) |
Voltage (V) |
RPM (r/min) |
Throughput (kg/h) |
|
-1S DH-400-2S -3S |
0.18 | 350 | <10 | 380 | 1500 | 100 |
|
-1S
DH-600-2S -3S |
0.25 | 550 | <10 | 500 | ||
|
-1S
DH-800-2S -3S |
0.55 | 750 | <10 | 800 | ||
|
-1S
DH-1000-2S -3S |
0.75 | 920 | <10 | 1400 | ||
|
-1S
DH-1200-2S -3S |
1.1 | 1120 | <10 | 2100 | ||
|
-1S
DH-1500-2S -3S |
1.5 | 1420 | <10 | 2600 | ||
|
-1S
DH-1800-2S -3S |
2.2 | 1720 | <10 | 3300 |
Chemical industry:resin,coating,cosmetic,oil,Herbal powder,ect.
The food industry: sugar, gourmet powder, salt, fruit juice, starch, milk powder, food, soya-bean milk, egg powder, rice, soy, fish meal, pineapple juice, etc.
Metals, metallurgical mining :aluminite powder,lead powder,copper powder,ore,alloy powder,electrode powder,abrasive powder,refraclory materials,kaolin,lime,aluminium oxide,quartz sand,ect.
We provide 12months quality warranty to make sure your machine well runs consistently.
Pre-sale services:
a. Professional engineer design the production line for you
b.Recommend suitable equipment according to your special demand.
During-sale services:
a.Pre-check and accept products before delivery
b.Send technicians to the jobsite for guiding the installation and adjustment
c.Training operators and finishing the check to satisfy your requiremnet
After-sale services:
a.Common problem can be solved through web in 24 hours,complex problem can be reacted immediately in 24 hours and solved as soon as possible
b.To establish long-term friendship, we will regulary contact with our customers.
