Quick Details
-
Power:
-
1300W, 1300W
-
Dimension(L*W*H):
-
465X457X583mm
-
Weight:
-
15 KG, 68 KG, Main Unit: 7kg Heating Bath: 3kg
-
Product name:
-

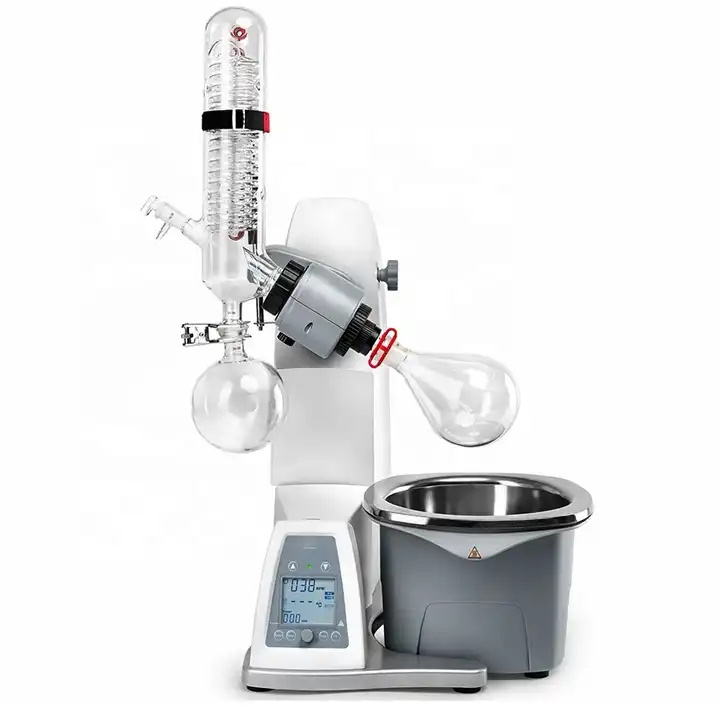

5L laboratory rotary vacuum evaporator
-
Application Industries:
-
Bio-chemical, Laboratory use
-
Temperature range:
-
RT-180°C
-
Rotating Speed:
-
20-280rpm
-
Main uses:
-
Industrial Distillation
-
Keyword:
-
rotary evaporator with chiller and vacuum pump
-
Display:
-
LED (speed, temperature, time)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IKEME
-
Voltage:
-
220V/50hz
-
Power:
-
1300W, 1300W
-
Dimension(L*W*H):
-
465X457X583mm
-
Weight:
-
15 KG, 68 KG, Main Unit: 7kg Heating Bath: 3kg
-
Product name:
-
5L laboratory rotary vacuum evaporator
-
Application Industries:
-
Bio-chemical, Laboratory use
-
Temperature range:
-
RT-180°C
-
Rotating Speed:
-
20-280rpm
-
Main uses:
-
Industrial Distillation
-
Keyword:
-
rotary evaporator with chiller and vacuum pump
-
Display:
-
LED (speed, temperature, time)
Products Description
Product Features：
• Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes
• Automatic motor lift releases the evaporating flask to a safe position in case of power failure
• 5L heating bath with wide temperature range from room temp. to 180°C. Water/oil heating mode can be changed only through aswitch.
• Overheating protection temperature at 220°C
• Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process
• Patented condenser (cooling surface 1700cm²) with excellent cooling effect
• Ejection mechanism ensures easy removal of evaporating flask
• Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
• Remote function provides PC control and data transmission
• Automatic motor lift releases the evaporating flask to a safe position in case of power failure
• 5L heating bath with wide temperature range from room temp. to 180°C. Water/oil heating mode can be changed only through aswitch.
• Overheating protection temperature at 220°C
• Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process
• Patented condenser (cooling surface 1700cm²) with excellent cooling effect
• Ejection mechanism ensures easy removal of evaporating flask
• Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
• Remote function provides PC control and data transmission
Product Paramenters
|
Model
|
RE100-Pro LCD Digital Rotary Evaporator
|
|
Motor Type
|
Brushless DC motor
|
|
Speed Range
|
20-280rpm
|
|
Display
|
LCD(speed,temperature, time)
|
|
Clockwise and Anti-clockwise
|
Yes
|
|
Heating Temperature Range
|
Room temp. to 180℃
|
|
Control Accuracy
|
water: ±1℃ oil: ±3℃
|
|
Heating Power
|
1300W
|
|
Stroke Displacement
|
automatic 150mm
|
|
Timer
|
Yes
|
|
Time Setting Range
|
1-999min
|
|
Dimension[D×W×H]
|
465×457×583mm
|
|
Weight
|
15kg
|
|
Permissible Ambient Temperature
|
5-40℃
|
|
Permissible Relative Humidity
|
80%RH
|
|
Protection Class
|
IP20
|
|
Weight
|
2.8kg
|
|
Protection class
|
IP21
|
|
USB Interface
|
Yes
|
|
Voltage/Frequency
|
100-120/200-240V 50/60 Hz
|
|
Power
|
1400 W
|
