Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1550x1150x1590mm
-
Weight (KG):
-
667
-
Table size (L*W):
-
460*180mm
-
Table travel (L*W):
-
500*190mm
-
T-slot(N*W):
-
1*14mm
-
Wheel center to the work surface:
-
335mm
-
Wheel (WA46K5V) Size (OD * W * ID):
-
mm 180*13* 31.75
-
Wheel speed 50HZ /60HZ:
-
2850 /3440r/min
-
Table longitudinal speed:
-
3-20m/min
-
Spindle motor:
-
1.1kw
-
Max. Grinding Length:
-
500mm
-
Weight:
-
667kg
Quick Details
-
Year:
-
2022
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TENGDONG
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1550x1150x1590mm
-
Weight (KG):
-
667
-
Table size (L*W):
-
460*180mm
-
Table travel (L*W):
-
500*190mm
-
T-slot(N*W):
-
1*14mm
-
Wheel center to the work surface:
-
335mm
-
Wheel (WA46K5V) Size (OD * W * ID):
-
mm 180*13* 31.75
-
Wheel speed 50HZ /60HZ:
-
2850 /3440r/min
-
Table longitudinal speed:
-
3-20m/min
-
Spindle motor:
-
1.1kw
-
Max. Grinding Length:
-
500mm
-
Weight:
-
667kg

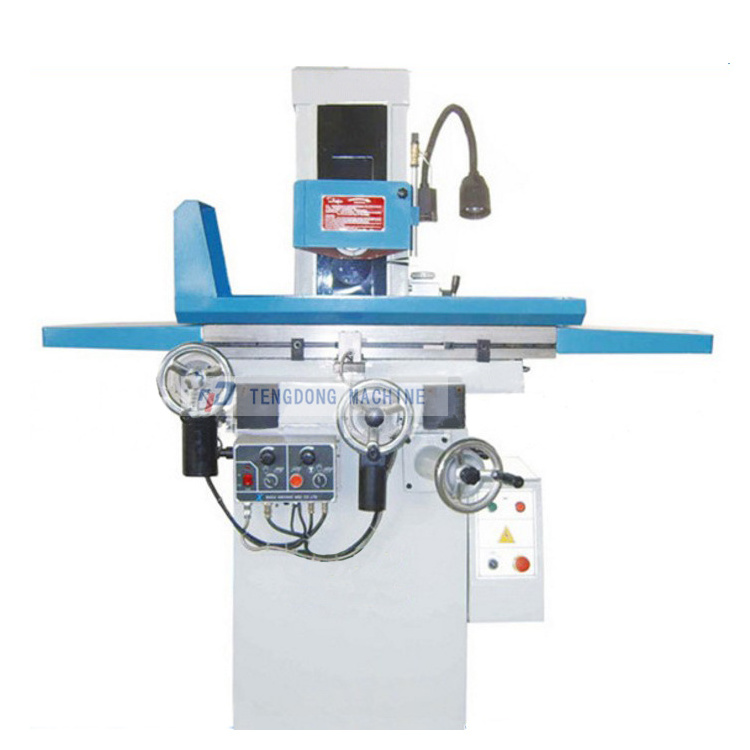

Product Description
Specification
|
Model
|
|
|
|
M618A
|
|||
|
Working table
|
Table Size (L× W)
|
|
mm
|
460×180
|
|||
|
|
Max movement of working table(L× W)
|
|
mm
|
500×190
|
|||
|
|
T -Slot number×width
|
|
mm
|
1×14
|
|||
|
Grinding head
|
Max distance from spindle center to table surface
|
|
mm
|
335
|
|||
|
|
Wheel Size(Outer diameter×width×Inner diameter)
|
|
mm
|
φ180×13×Φ31.75
|
|||
|
|
Wheel speed
|
50HZ
|
r/min
|
2850
|
|||
|
|
|
60HZ
|
|
3440
|
|||
|
Feed amount
|
Vertical feed on handwheel
|
Per revolution
|
mm
|
1.25
|
|||
|
|
|
Per graduation
|
mm
|
0.01
|
|||
|
|
Cross feed on handwheel
|
Per revolution
|
mm
|
2.5
|
|||
|
|
|
Per graduation
|
mm
|
0.02
|
|||
|
Motor power
|
Spindle motor
|
|
kw
|
1.1
|
|||
|
|
Coolant pump motor
|
|
w
|
400
|
|||
|
Working precision
|
The parallelism of working surface to base level
|
|
mm
|
00:00.0
|
|||
|
|
Surface roughness
|
|
μm
|
Ra0.32
|
|||
|
Weight
|
Net
|
|
kg
|
650
|
|||
|
|
Gross
|
|
kg
|
750
|
|||
|
Package dimension(L×W×H)
|
|
|
mm
|
1240x1080x1680
|
|||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Tengdong Machine Tool Co., Ltd. is a set of lathes, milling machines, drilling machines, planers, presses and other machine tool
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
