Quick Details
-
Weight (KG):
-
1600 KG, 1600 KG
-
Power (kW):
-
7kw
-
Product Name:
-

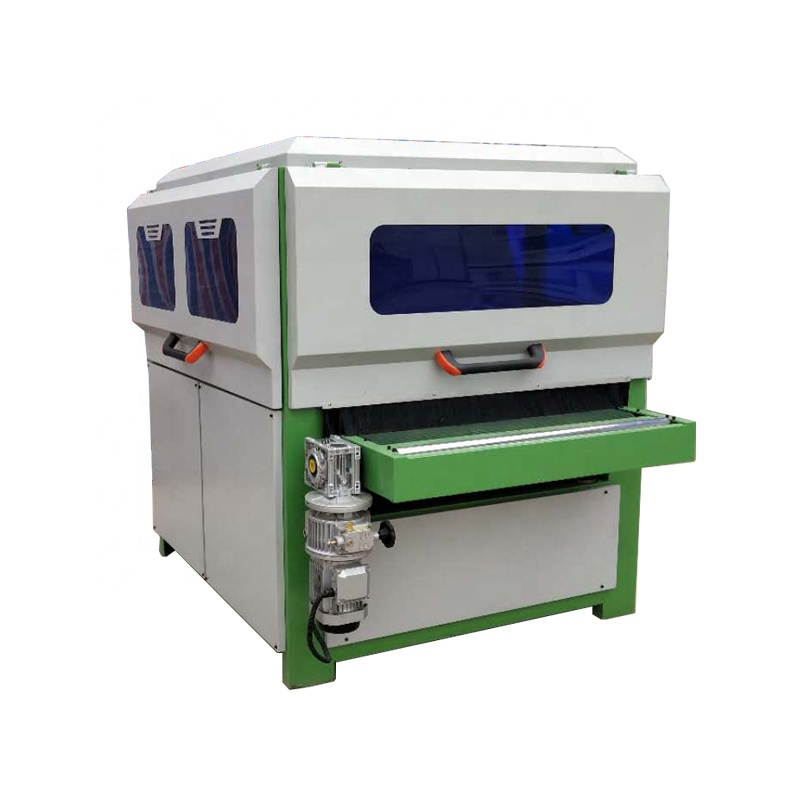

Wood polish sander
-
Working Width:
-
30-1300mm
-
Working Thickness:
-
2-100mm
-
Feed Speed:
-
5-25m/min
-
Speed of Sucked Air:
-
≥25m/s
-
Working Air Pressure:
-
≥0.55Mpa
-
Function:
-
polishing/sanding/primer sanding
-
Application:
-
Wooden Door/mdf/solid wood/chipboard
-
Size:
-
2400*1700*1500mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Grandio
-
Marketing Type:
-
Hot Product 2024
-
Weight (KG):
-
1600 KG, 1600 KG
-
Power (kW):
-
7kw
-
Product Name:
-
Wood polish sander
-
Working Width:
-
30-1300mm
-
Working Thickness:
-
2-100mm
-
Feed Speed:
-
5-25m/min
-
Speed of Sucked Air:
-
≥25m/s
-
Working Air Pressure:
-
≥0.55Mpa
-
Function:
-
polishing/sanding/primer sanding
-
Application:
-
Wooden Door/mdf/solid wood/chipboard
-
Size:
-
2400*1700*1500mm
Product Description
1.This model applies to: door panels, relief, furniture, etc. it can work on convex shape grinding, broken ammonia, white stubble and painting polishing.
2.This Profile Brush Sander has four brush rollers at the back and 9 disc brushes in the front.
3.The Profile Brush Sander with 2 brushes can also be customized. The total length of the Profile Brush Sander is 2500mm for 2 rollers and 3000mm for four rollers.
4.The wood holding device is 500mm long. This wood sander can be used on solid wood, MDF, veneer board which can make Door line,Door frame, Baseboard, Frame, Blinds and other L type standard or non standard wood surface.
5.This wood sander can rough sand or fine sand, grind, and polish the surface for primer doors, cabinet doors with curves on the surface. .
2.This Profile Brush Sander has four brush rollers at the back and 9 disc brushes in the front.
3.The Profile Brush Sander with 2 brushes can also be customized. The total length of the Profile Brush Sander is 2500mm for 2 rollers and 3000mm for four rollers.
4.The wood holding device is 500mm long. This wood sander can be used on solid wood, MDF, veneer board which can make Door line,Door frame, Baseboard, Frame, Blinds and other L type standard or non standard wood surface.
5.This wood sander can rough sand or fine sand, grind, and polish the surface for primer doors, cabinet doors with curves on the surface. .
Many types of polishing for you to choose.
Specification
|
Four Discs/Two Straight Rolls
|
|
|
|
|||
|
Name
|
Wood Polish Machine
|
|
|
|||
|
Model
|
GD630
|
GD1000
|
GD1300
|
|||
|
Working Width
|
30-630mm
|
30-1000mm
|
30-1300mm
|
|||
|
Sandpaper Size
|
650*1900mm
|
1020*2000mm
|
1320*2200mm
|
|||
|
Working Thickness
|
2-100mm
|
|
|
|||
|
Feed Speed
|
5-25m/min
|
|
|
|||
|
First Group
|
Five Discs
|
|
1.5kw Motor Drive
0.18kw Mptor Swing
|
|||
|
Second Group
|
Four Discs
|
|
|
|||
|
Third Group
|
One Straight Roller, 2.2kw Motor
|
|
|
|||
|
Forth Group
|
One Straight Roller, 2.2kw Motor
|
|
|
|||
|
Motor
|
Conveying Motor: 1.5kw Geared Motor. Lifting Motor: 0.37kw
|
|
|
|||
|
Warranty
|
1 Years
|
|
|
|||
1.
Suitable for rough sanding and primer sanding of all kinds of wood products.
The yellow sisal polishing roller can polish density board, soft solid wood, primer, white stubble, etc.
The polishing roller made of black DuPont silk can polish high-hardness solid wood and MDF.
.
2.
The machine is equipped with a high-end frequency conversion speed control device, which can adjust the appropriate speed according to different plates to ensure the sanding quality of the workpiece..
3.
The gauze strips used in the machine polishing are imported gauze strips, and the polishing effect and service life are greatly improved compared with the domestic conventional gauze strips
.
.
4.
By default, the machine can polish plates with a thickness of 2-100mm. If there are other special requirements, it can be customized.
.
5.
The machine can polish doors every minute, which greatly increases sales, and can replace most of the manual polishing work and save a lot of labor costs.
.
6.
.
We also have more types of polishing machines.There are large and different types of machines, as well as a variety of small heterosexual manual polishing machines.If necessary, please contact me.
The appearance, function and size of all our machines can be customized.
The overall price is affected by the function configuration, the price is for reference only, please contact customer service for the specific price.
