Quick Details
-
Frequency:
-
50HZ
-
Place of Origin:
-
Shandong, China
-
engine brand:
-
Doosan
-
alternator brand:
-
XN
-
engine power:
-
77kw
-
intake type:
-
Natural
-
noise level:
-
within 96dba
-
genset type:
-
silent type
-
excitation type:
-
brushless
-
insulation class:
-
H
-
weight:
-
900kg
-
overall size:
-
1980*750*950
Quick Details
-
Rated Power:
-
60kw/75kva
-
Rated Voltage:
-
400V
-
Rated Current:
-
108A
-
Frequency:
-
50HZ
-
Place of Origin:
-
Shandong, China
-
engine brand:
-
Doosan
-
alternator brand:
-
XN
-
engine power:
-
77kw
-
intake type:
-
Natural
-
noise level:
-
within 96dba
-
genset type:
-
silent type
-
excitation type:
-
brushless
-
insulation class:
-
H
-
weight:
-
900kg
-
overall size:
-
1980*750*950

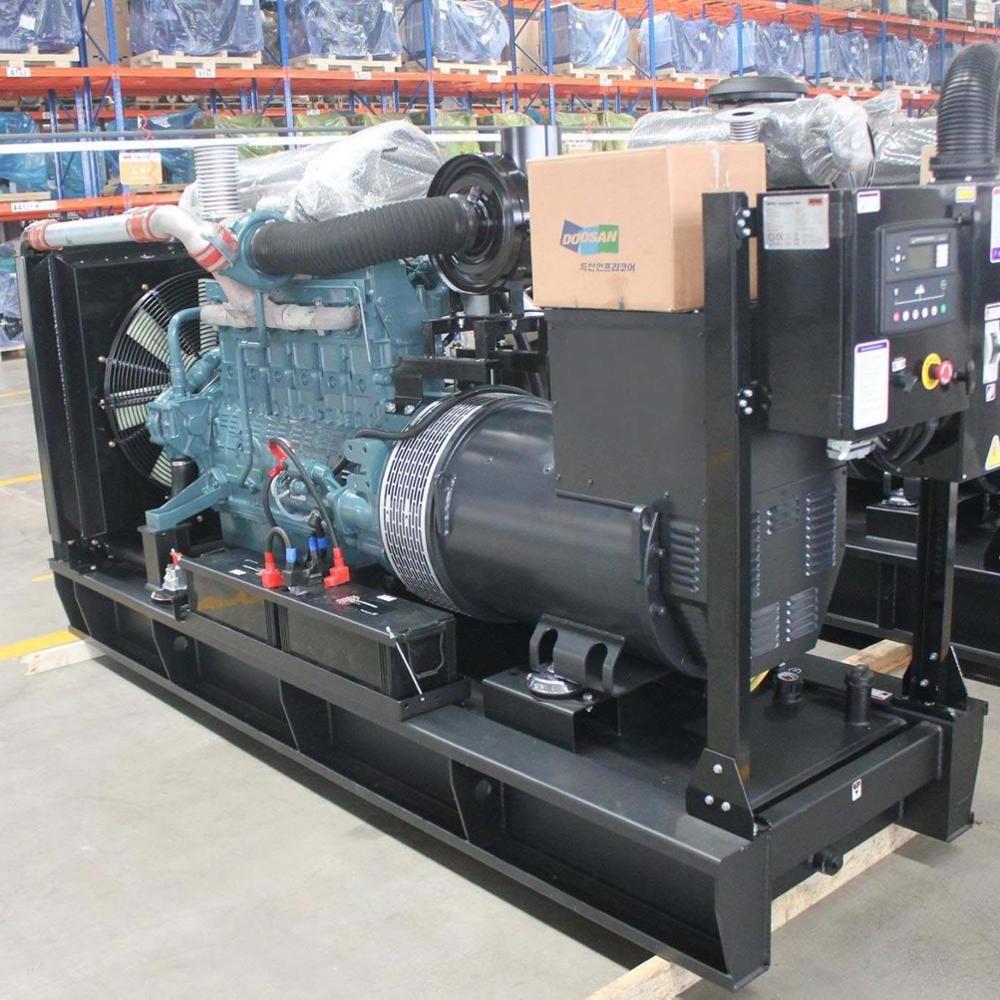

Specification of 60Kw Doosan diesel generator silent type
Genset model :SDW60GF
Frequency :50HZ
Voltage :400/230V
Phase :3P 4W
Prime power :60/75
Standby power :66/82.5
Overall Size mm:2370*790*1200
Gross Weight (kg):1050
Diesel Generator :
Model:D1146
Type :Closed water-cooled, in line,4 stroke ,wet cylinder liner, direct injection, 1500rpm
Rated power(kw):77
Intake type:Natural
No.of Cylinder :6.L
Bore *Stroke : 111*139
Displacement (L):8.1
Compression Ratio :17.5:1
Alternator :
Model :XN224F
Power effiency :89.6%
Excitation type :Brushless
Insulation Class:H
Other model :
| Genset model | Prime power kw/kva | Standby power kw/kva | Diesel Engine Model | Rated power kw/kva | Intake type | No.of cylinder | Displacement L | Lub oli capacity L | Rated fuel consumption L/h |
| SDW80GF | 80/100 | 88/110 | D1146T | 108 | Turbocharged | 6.L | 8.1 | 22 | 24 |
| SDW100GF | 100/125 | 110/137.5 | D1146T | 108 | Turbocharged | 6.L | 8.1 | 22 | 24 |
| SDW120GF | 120/150 | 132/165 | P086TI-1 | 149 | Turbocharged | 6.L | 8.1 | 15.5 | 33 |
| SDW150GF | 150/188 | 170/213 | P086TI | 177 | Turbocharged | 6.L | 8.1 | 15.5 | 3.9 |
| SDW160GF | 160/200 | 176/220 | P086TI | 177 | Turbocharged | 6.L | 8.1 | 15.5 | 3.9 |
| SDW200GF | 200/250 | 220/275 | P126TI | 241 | Turbocharged | 6.L | 11.1 | 23 | 53 |
| SDW250GF | 250/313 | 275/344 | P126TI -II | 265 | Turbocharged | 6.L | 11.1 | 23 | 60 |
| SDW300GF | 300/375 | 330/413 | P158LE-1 | 327 | Turbocharged | 8.V | 14.6 | 28 | 73 |
Alternator : you can choose Stamford, Marathon,Leroy Somer ,and so on.
OEM of 60Kw Doosan diesel generator silent type
Packing :wooden case or ply wood
Shipping :after 2-15days
1.Warranty iterms will be issued by our own factory, which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent (include sea freight and insurance) to buyer freely ;
4.Easy torn prts are excluded in the warranty, like plugs, condenser, fuse, battery, seal;
5.Problems caused by customer's incorrect man-made operation will be covered by the user;
6.Part use for overhual and ordinary maintanence will be offered by us in factory price;
7.Skillful engineers of us are available dispatched to customers place for training and service
Please send to me your requirement, I will give you our best offer asap.
