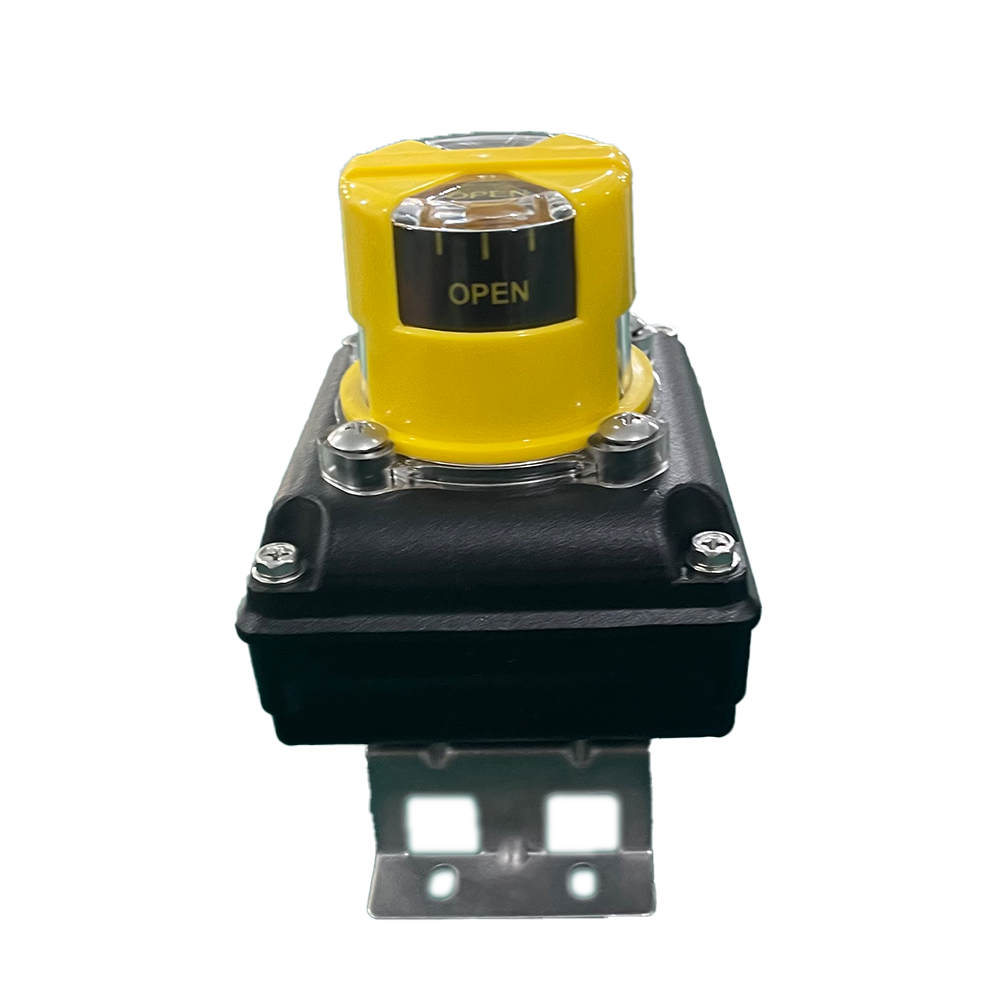

Die cast aluminum alloy shell, surface powder electrostatic spray, strong and corrosion resistance.
Switch position can be clearly identified by the indicator.
Anti stripping bolt.
The internal contact and metal bracket connection is firm and reliable.
Safe and reliable wiring terminal.
No tool can easily adjust the limit of opening.
Stainless steel combination bracket and fixed bracket are optional for easy connection with the actuator.
Electrical interface size can be multiple choices.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
P3
-
Protection Level:
-
IP68/IP67
-
Operating Temperature:
-
-20~80
-
Max. Current:
-
3A
-
Product name:
-
Valve limit switch
-
Material:
-
Stainless Steel
-
Usage:
-
switch
-
MOQ:
-
1 Pcs
-
Keyword:
-
valve limit switch
-
Function:
-
Control Flow Switch
-
Condition:
-
100%new
-
OEM:
-
Profession Customized
-
Feature:
-
Long Life
-
Service:
-
Standard Service
-
Certification:
-
TUV
Quick Details
-
Max. Voltage:
-
400V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Alpha
-
Model Number:
-
P3
-
Protection Level:
-
IP68/IP67
-
Operating Temperature:
-
-20~80
-
Max. Current:
-
3A
-
Product name:
-
Valve limit switch
-
Material:
-
Stainless Steel
-
Usage:
-
switch
-
MOQ:
-
1 Pcs
-
Keyword:
-
valve limit switch
-
Function:
-
Control Flow Switch
-
Condition:
-
100%new
-
OEM:
-
Profession Customized
-
Feature:
-
Long Life
-
Service:
-
Standard Service
-
Certification:
-
TUV
Products Description
Product features
Product Paramenters
|
Parameter Name
|
Limit Switch Box
|
|
Case code
|
ULS 301MCSS
|
|
Model
|
ULS
|
|
Category
|
3.Waterproof
|
|
|
4.Ex d IIB T5/T6
|
|
|
5.Ex d IIC T5/T6
|
|
Switching Method
|
0.2-SPDT:Mechanical Type
|
|
|
1.3-SPDT:Mechanical Type
|
|
|
2.4-SPDT:Mechanical Type
|
|
|
3.2-DPDT:Mechanical Type
|
|
|
4.2-SPDT:Mechanical Type (-40℃~100℃)
|
|
|
5.2-SPDT+Mechanical Type+Potentiometer
|
|
|
6.2-SPDT+Mechanical Type +4-20mA
|
|
|
7.(NJ2-V3-N,ExiallCT6,8VDC)Proximity Type
|
|
|
8.(SJ3.5-SN,ExiallCT6,8VDC)Proximity Type (-50℃~100℃)
|
|
|
9.(10-30V DC):Proximity Type
|
|
|
10.(2-SPST 2 line -40℃~125℃):Magnetic Type
|
|
|
11.(2-SPDT 2 line -40℃~125℃):Magnetic Type
(Switching Current 1.0A)
(Carrying Current 3.0A) |
|
|
12.(2-DPDT 6 line -40℃~125℃):Magnetic Type
|
|
|
13.(3-SPDT 3line -40℃~125℃):Magnetic Type
|
|
|
14.(2-SPDT,ExiallCT6)
（electricity:3A，voltage:0-24VDC）
|
|
|
15.Inductance + 4-20mA
|
|
|
16.Magnetic Induction + 4-20mA
|
|
|
SV.Electromagnetic Valve Switch Integration
|
|
Conduit Entry
|
1.NPT 1/2
|
|
|
2.M20x1.5
|
|
|
3.NPT 3/4
|
|
|
4.G1/2
|
|
|
5.G3/4
|
|
Intelligent Bus
|
M.Modbus
|
|
|
P.Profibus
|
|
|
A.ASI
|
|
Pointer
|
C.Conventional
|
|
|
T.Pointer T
|
|
|
L.Pointer L
|
|
Surface treatment
|
N.Surfacesprayedplastic
|
|
|
SS.Stainless steel
|
|
|
P.PTFE
|
|
|
C.Ceram
|
Switching Arguments
|
|
2-SPDT
Mechanical Type
|
NJ2-V3-N/SJ3.5-SN
Proximity Type
|
2/3 line
Proximity Type
|
2/3 line
Magnetic Type
|
|
Protection level
|
IP68/IP67
|
IP68/IP67
|
IP68/IP67
|
IP68/IP67
|
|
Electrical interface
|
2-NPT1/2
2-M20x1.5
NPT3/4
|
2-NPT1/2
2-M20x1.5
NPT3/4
|
2-NPT1/2
2-M20x1.5
NPT3/4
|
2-NPT1/2
2-M20x1.5
NPT3/4
|
|
Ambient temperature
|
-20°C～80°C
-40°C～100°C
|
-25°C～100°C
-50°C～100°C
|
-25°C～70°C
|
-40°C～80°C
|
|
Terminal number
|
8 (0.08-2.5mm)²
|
8 (0.08-2.5mm)²
|
8 (0.08-2.5mm)²
|
8 (0.08-2.5mm)²
|
|
Valve position indicator
|
0～90°
Free rotation
|
0～90°
Free rotation
|
0～90°
Free rotation
|
0～90°
Free rotation
|
|
Switch number
|
2 / 4
|
2
|
2
|
2
|
|
Electrical parameters
|
0.6A,125VDC,03A250VDC
16A,1/2HP,250VAC |
Switching function:
NAMUR Normal
close Detect distance:
2mm
Working voltage:
8V
Undetected sheetmetal:
≥3mA Detected
sheetmetal:
≤1mA
Ambient
temperature:
-25℃~100℃
|
Switching function:
PNP/NPN
Detect distance:
5mm
Working voltage:
10~30V
Working current:
0~100mA
Ambient temperature:
-25℃~100℃
|
Switching function:
Form C
Detect distance:
5mm
Switching capacity:
60W
Maximum switching voltage:
400V
Minimum breakdown voltage:
1200V
Maximum switching current:
1.0A
Maximum through current:
3A
Ambient temperature:
-40℃~125℃
|
Physical dimension
(mm)
ULS3
Physical dimension(mm)
ULS4
Physical dimension(mm)
ULS5
Physical dimension(mm)
|
Mechanical 2XSPDT
|
Proximity
|
Proximity
|
Magnetic Type 2XSPDT
|
|
Model:
XW-16-1-3
|
Model：
P+F NJ2-V3-N NAMUR NC
|
Model：
P+F NBN5-F7-E2 PNP.NO
|
Model：
MS-3-DA
|
|
DC:
0.6A ,125VDC;03A,250VDC
|
Voltage:
8VDC
|
Voltage：
10~30VDC
|
Switching capacity：
60W
|
|
AC:
16A,1/2HP,250VAC
|
Explosion proof:
ExiaIICT6
|
Ambient temperature：
-25℃~70℃
|
Maximum switching voltage：
400V
|
|
|
Ambient temperature：
-25℃~100℃
|
Protection level：
IP67
|
Maximum switching current：
1.0A
|
|
|
Induction distance：
2mm
|
|
Maximum through current：
2A
|
