Quick Details
-
Brand Name:
-
SINOSUN
-
Dimension(L*W*H):
-
-
-
Weight:
-
5000
-
Product name:
-
Electrical Heating Bitumen Tank, EBT50 Bitumen Tank for Asphalt Plant
-
Material:
-
Carbon Steel
-
Keywords:
-
Electrical Heating Bitumen Tank, EBT50 Bitumen Storage Tank
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
CE,ISO
Quick Details
-
Capacity:
-
-
-
Max Working Pressure(MPa):
-
00 MPa
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SINOSUN
-
Dimension(L*W*H):
-
-
-
Weight:
-
5000
-
Product name:
-
Electrical Heating Bitumen Tank, EBT50 Bitumen Tank for Asphalt Plant
-
Material:
-
Carbon Steel
-
Keywords:
-
Electrical Heating Bitumen Tank, EBT50 Bitumen Storage Tank
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
CE,ISO

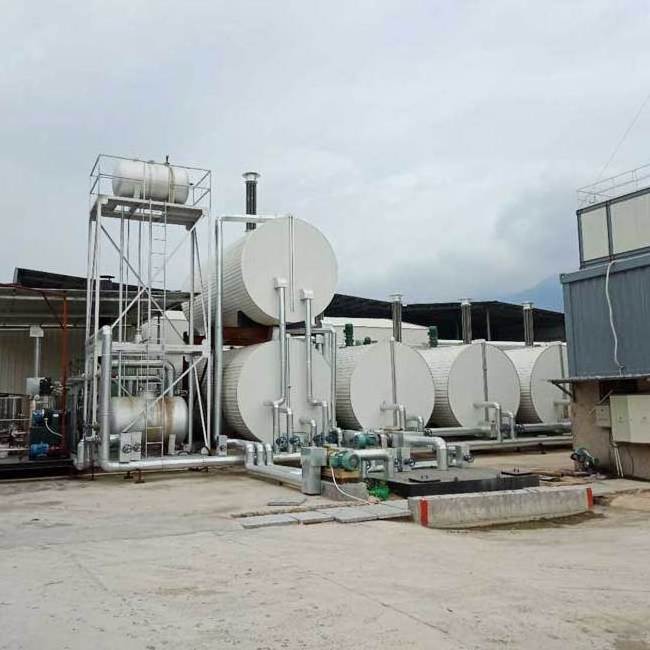

EBT50 Bitumen Storage Tank for Asphalt Plant , Electrical Heating Bitumen Tank
These structures and design of
bitumen storage tank can be used alone or support asphalt mixing plant.
Our bitumen tank features in bitumen storage, pre-heat, dehydration, heating, temperature indicating and high-temperature alarming, etc.
Product description of bitumen tank:
1. Capacity: 10-20000L
2. Optional material: 316L/ 304 stainless steel, Q235B/Q345R carbon steel
3. Type: vertical or horizontal
4. We can produce tanks that meet GMP standard.
5. We can design and produce Vertical stainless steel storage tank according to your requirements.
Advantages of bitumen storage tank:
1. Good corrosion-resistance and suitable for chemical industry.
2. We have been specializing in manufacturing custom made products, both the mechanisms and the appearance, so we can customize the equipment according to your requirements.
3. We have professional industrial designer responsible for our products’ appearance.
Specifications of SINOSUN Bitumen Storage Tank
| Model | EBT50 | EBT40 | EBT30 | EBT20 |
| Heating power | 80kw | 60kw | 40kw | 30kw |
| Heating type | Electrical heating tube | Electrical heating tube | Electrical heating tube | Electrical heating tube |
| Control type | Centralized control | Centralized control | Centralized control | Centralized control |
| Heating efficiency | 1-2°C/H | 1-2°C/H | 1-2°C/H | 1-2°C/H |
| Capacity | 45-50 m3 | 35-40 m3 | 25-30m3 | 18-20 m3 |
| Thickness of Insulation | 70mm | 70mm | 70mm | 70mm |
| Testing of Liquid level | Electron/ mechanical | Electron/ mechanical | Electron/ mechanical | Electron/ mechanical |
| Outside Package method | Galvanized iron/ stainless steel | Galvanized iron/ stainless steel | Galvanized iron/ stainless steel | Galvanized iron/ stainless steel |
| Shipping package | FR container | 40HC | 40HC | 40HC |
