Quick Details
-
Application:
-
Connecting
-
Process:
-
Forging
-
Heat Treatment:
-
Tempered and Quenched
-
Color:
-
Red/Yellow/Self/Etc
-
Surface:
-
Color Painted/Electric Plated/Hot Galvanized
-
MBS:
-
5 times WLL or 4 times WLL
-
Certifications:
-
ISO/CE
-
Quality:
-
High
-
Testing:
-
Qualified
-
Other:
-
Customized
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Thinkwell
-
Model Number:
-
Mining Chain Connector
-
Application:
-
Connecting
-
Process:
-
Forging
-
Heat Treatment:
-
Tempered and Quenched
-
Color:
-
Red/Yellow/Self/Etc
-
Surface:
-
Color Painted/Electric Plated/Hot Galvanized
-
MBS:
-
5 times WLL or 4 times WLL
-
Certifications:
-
ISO/CE
-
Quality:
-
High
-
Testing:
-
Qualified
-
Other:
-
Customized

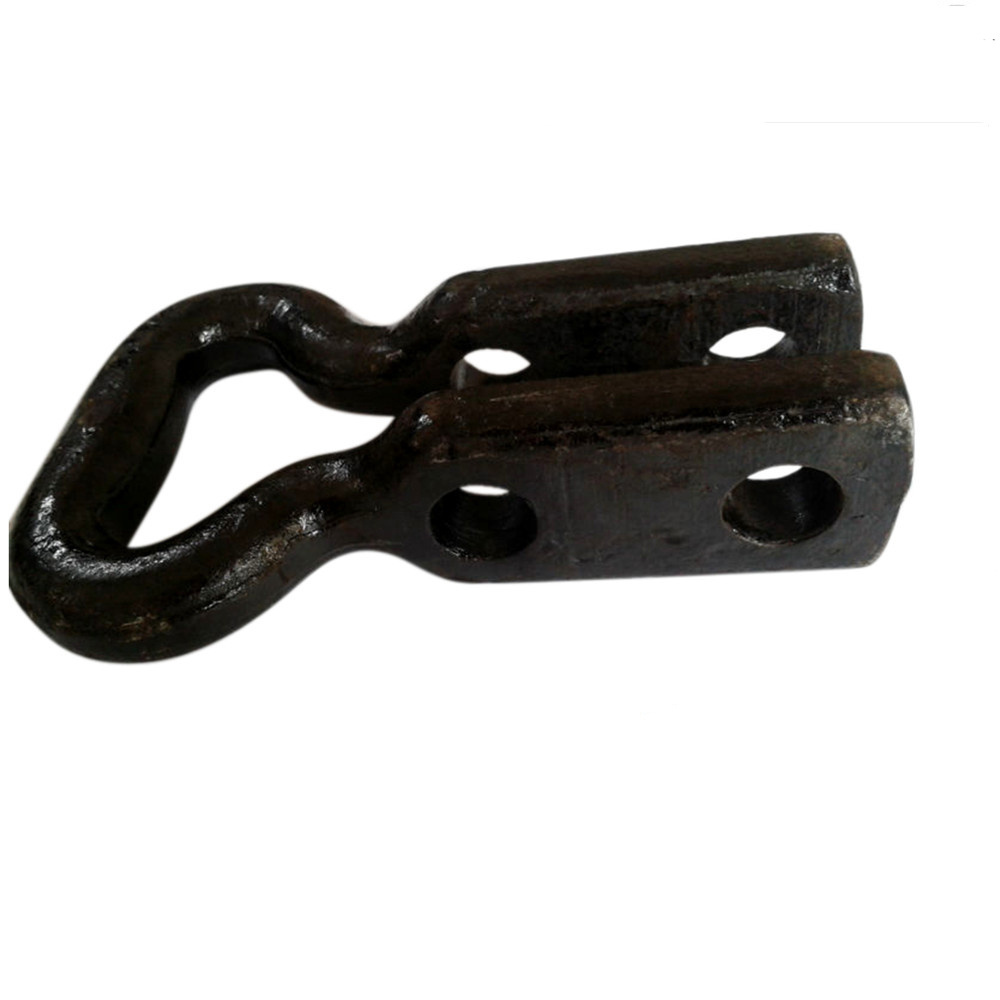

Steel Mining Chain Connector, Mining Conveyor Chain
| Part Name: Mining Chain Connector |
| Process: Forging |
| Material Range: Steel |
| Surface Treatment: H ighly polished or hot dip galvanized or electro galvanized |
|
Application: Mining, Construction etc. |
|
Size (MM) |
Poof load (KN) |
Breaking load (min) |
||
|
Grade B |
Grade C |
Grade B |
Grade C |
|
|
14*50 |
150 |
200 |
200 |
250 |
|
18*64 |
260 |
330 |
330 |
410 |
|
22*86 |
380 |
490 |
490 |
610 |
|
24*86 |
460 |
580 |
580 |
720 |
|
26*92 |
540 |
680 |
680 |
850 |
|
30*108 |
710 |
900 |
900 |
1130 |
|
1 Quick response: all inquiries responded within 12 hours |
|
2 Experience: reliable supplier & over 20 years in manufacturing rigging hardware, exported to over 50 countries |
|
3 Timely delivery: from mold to samples within 10 days |
| 4 Certification: CE, ISO, products test reports provided on request, control for each product |
|
5 Strong ability for R&D |
|
6 Transportation: close to Qingdao Port & Airport, providing great advantages to trade |
|
7 Competitiveness: high-quality and the lowest ex-factory prices with a wide range of shipping ways |
|
8 NO MOQ limit, customers’ special need is welcomed |
