Quick Details
-
Brand Name:
-
Unionwell
-
Model Number:
-
G5T16
-
Max. Current:
-
16A
-
Operating Temperature:
-
-40℃~+125℃
-
Protection Level:
-
IP67
-
Electrical life:
-
50,000cycles
-
Mechanical life:
-
500,000cycles
-
Rating:
-
16A 125/250VAC
-
Operating force:
-
200gf max w.o lever
-
Terminal:
-
0.187'' quick terminals
-
Function:
-
SPDT
-
Lever type:
-
Without lever
-
Vibration resistance:
-
10-55HZ,1.5mm
-
Unit Net Weight:
-
Approx.6.2g(No lever)
-
Product name:
-

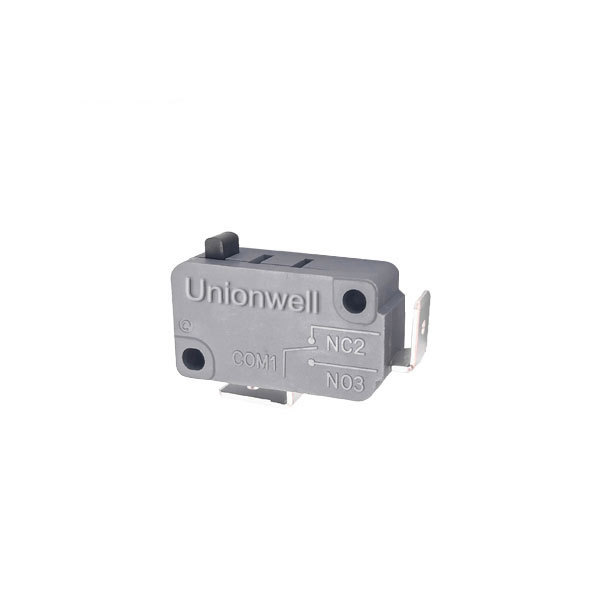

G5 Basic micro switch
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
125/250VAC,48VDC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Unionwell
-
Model Number:
-
G5T16
-
Max. Current:
-
16A
-
Operating Temperature:
-
-40℃~+125℃
-
Protection Level:
-
IP67
-
Electrical life:
-
50,000cycles
-
Mechanical life:
-
500,000cycles
-
Rating:
-
16A 125/250VAC
-
Operating force:
-
200gf max w.o lever
-
Terminal:
-
0.187'' quick terminals
-
Function:
-
SPDT
-
Lever type:
-
Without lever
-
Vibration resistance:
-
10-55HZ,1.5mm
-
Unit Net Weight:
-
Approx.6.2g(No lever)
-
Product name:
-
G5 Basic micro switch
Drawing:
:
Parameters:
| Rating | 08 |
ENEC/CQC: 8(10)A 250VAC,5E4,25T125 10.1A 1/2HP 250VAC |
| 16 |
ENEC/CQC:16(4)A 250VAC 5E4 16A 1/2HP 125/250VAC |
|
| 22 |
ENEC :16(13)A 250VAC 5E4 22(8)A250VAC 1E4 CQC:22(8)A 250VAC 1E4 22A 1HP 125/250VAC |
|
| 05 |
ENEC/CQC; 0.1A 48VDC 0.1A125/250VAC 5(2.5)A 0.1A 48VDC 0.1A125/250VAC 5A 1/10HP 125/250VAC |
|
| 10 |
ENEC :10(3)A 125/250 VAC ,0.5A 125VDC 0.25A 250VDC 25T125 5E4 11A 1/3HP 125/250VAC 0.5A 125VDC 0.25A 250VDC 4A 125VAC L |
|
| Operating Frequency | Electrical | 10-~30 cycles/minute |
| Mechanical | 120 cycles/minute | |
| Contact Resitance | 100MΩ Max | |
|
Insulation Resistance
( at 500VDC) |
100MΩ Min | |
| Dielectric Strength | AC 1,000V RMS (50~60Hz) | |
| Storage Temperature | (-40°C~ +125°C/85°C) | |
| Storage Humidity | 85% RH max | |
| Service Life | Electrical |
10,000~100,000cycles
(Depend on part number) |
| Mechanical |
1,000,000cycles |
|
