Quick Details
-
Size:
-
Fingerprint panel:68*30*6.2mm Lock body(H*W*D): 102*55*23mm
-
Material:
-
Metal frame,Panel is acrylic
-
Fingerprint capacity:
-
20(Admin:1,User:19)
-
Battery:
-
6V(4*1.5V AA batteries),Micro USB Emergency power back up
-
Warning voltage:
-
4.5V
-
Static power consumption:
-
20uA
-
Dynamic power consumption:
-
32mA
-
Reaction time:
-
Less than 500ms
-
Working temperature:
-
-20~65
-
Working life:
-
Standby mode:1 year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Nordson
-
Model Number:
-
SF120 fingerprint cabinet lock
-
Size:
-
Fingerprint panel:68*30*6.2mm Lock body(H*W*D): 102*55*23mm
-
Material:
-
Metal frame,Panel is acrylic
-
Fingerprint capacity:
-
20(Admin:1,User:19)
-
Battery:
-
6V(4*1.5V AA batteries),Micro USB Emergency power back up
-
Warning voltage:
-
4.5V
-
Static power consumption:
-
20uA
-
Dynamic power consumption:
-
32mA
-
Reaction time:
-
Less than 500ms
-
Working temperature:
-
-20~65
-
Working life:
-
Standby mode:1 year

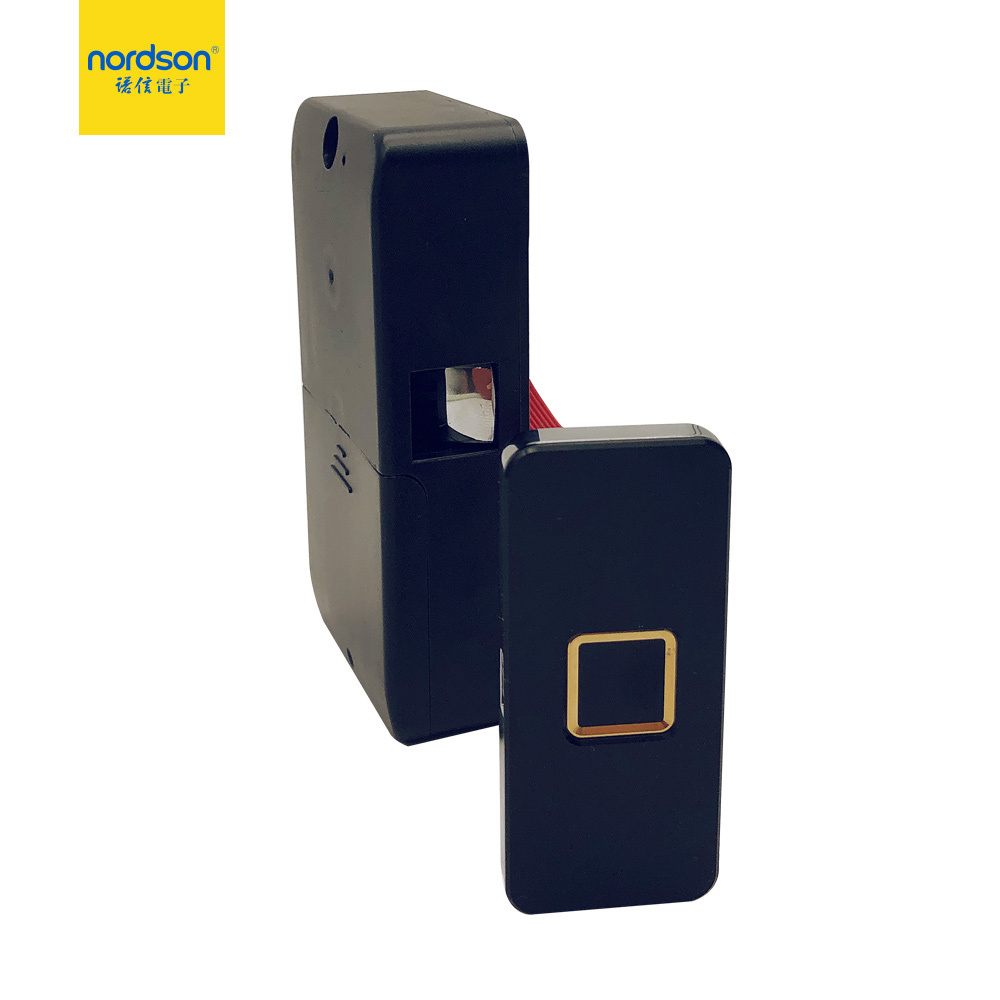

Good quality sauna gym safe box electronic fingerprint cabinet locker lock
Overview
SF120 New ultra-thin metal frame design, simple operation, flexible installation, suitable for a variety of cabinets, such as: Office or home cabinets,Dormitory storage lockers; gym cabinets; swimming pool storage lockers, etc. Large fingerprint capacity, HD non-membrane fingerprint collector, 360°high speed identification, 20 sets of fingerprint capacity. Includes a Micro USB emergency power back-up, low power comsumption design, the battery could normally run for 12 month.
Function
1.HD non-membrane fingerprint collector for quick identification.360°high speed recognition
2.Easy to install without wiring
3.Large Fingerprint capacity:20(Admin:1,User:19)
4.Metal frame,Panel is acrylic(Ultra-thin design)
5.Battery:6V(4*1.5V AA batteries),Micro USB Emergency power back up
Specification
| Model | SF120 Fingerprint Electric Cabinet Lock |
| Size | Fingerprint panel:68*30*6.2mm,Lock body(H*W*D): 102*55*23mm |
| Product Material | Metal frame,Panel is acrylic(Ultra-thin design) |
| Fingerprint capacity | 20(Admin:1,User:19) |
| Alarm | Low battery alarm |
| Battery | 6V(4*1.5V AA batteries),Micro USB Emergency power back up |
| Warning voltage | 4.5V |
| Static power consumption | 20uA |
| Dynamic power consumption | 32mA |
| Unlock way | Fingerprint |
| Reaction time | Less than 500ms |
| Working temperature | -20ºC~65ºC |
| Working humidity | 10% ~ 90%RH |
| Working life | Standby mode:1 year |
| Weight | 200g(with lock hook) |
| Application | Dormitory storage locker; gym cabinet; swimming pool storage locker; drawer |
| Usage | gyms, sports and fitness clubs,dormitory storage locker; gym cabinet;swimming Dormitory storage locker; gym cabinet; swimming pool storage locker; drawer |
